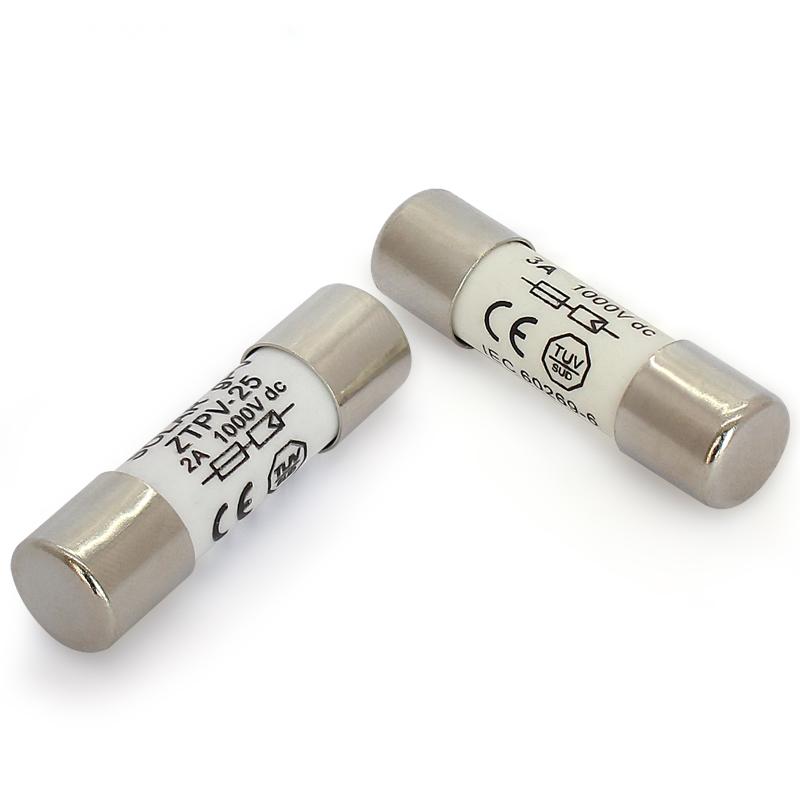

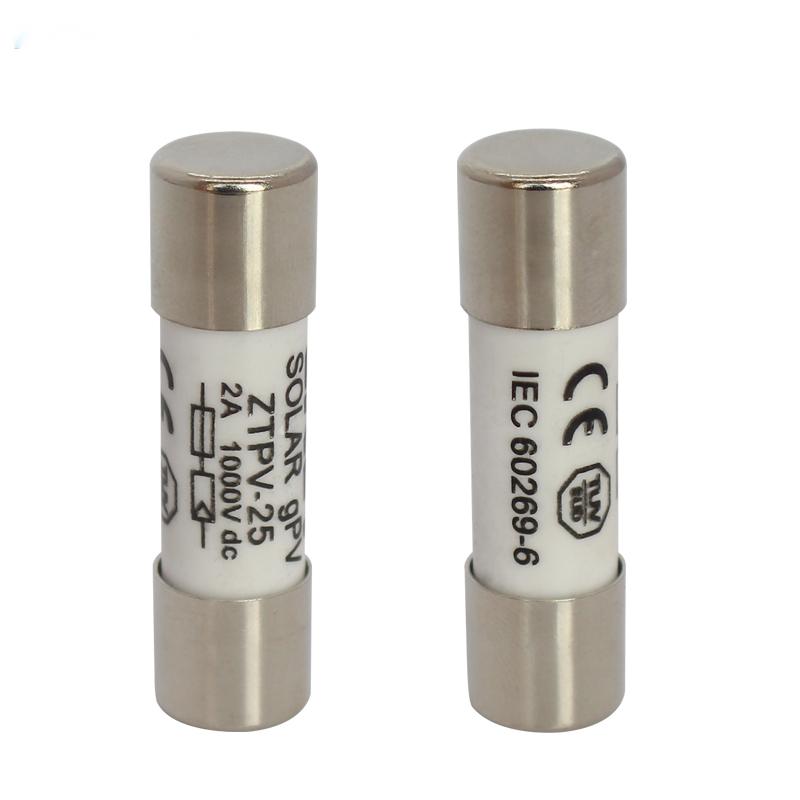

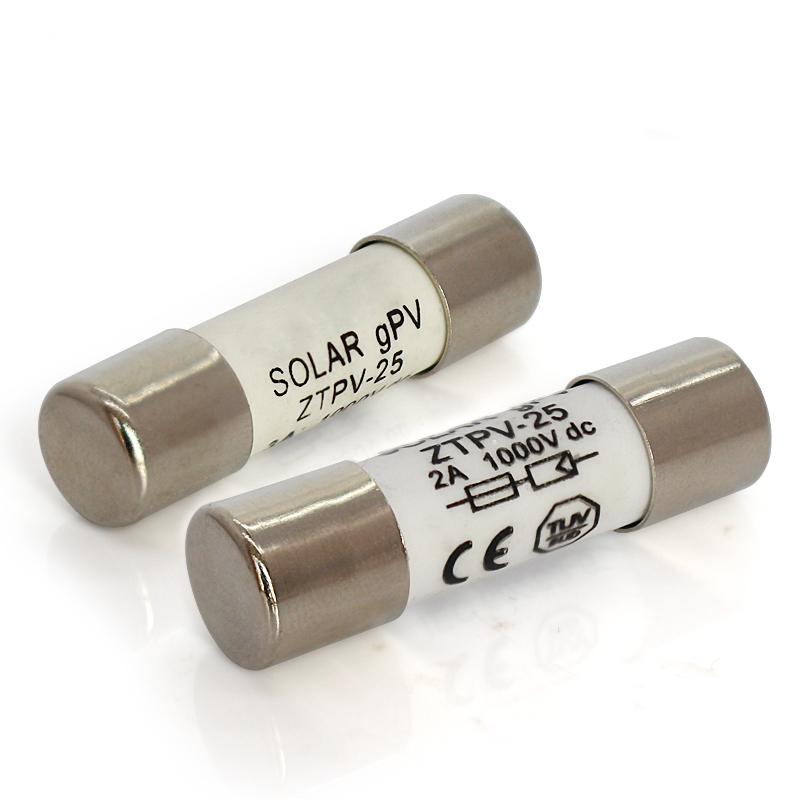

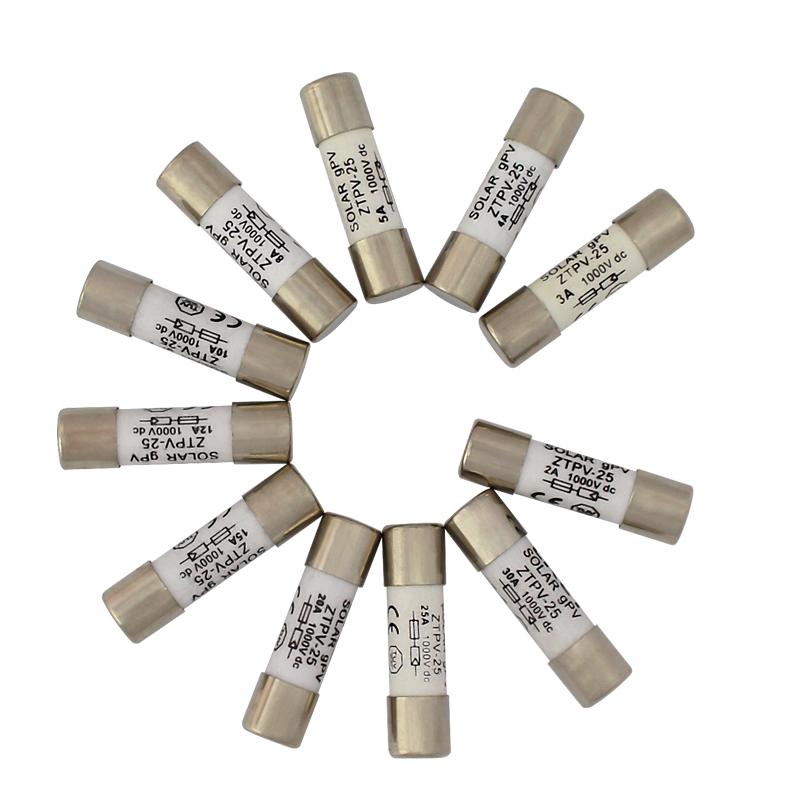

PV fuse for solar system 2A-30A 1000V DC
Features
1 Dedicated fuse for PV combiner box 1000V
2 Product standard size 10 X 38MM
3 Special engineering materials pipes, silver-plated copper cap
4 Components RoHS compliant and halogen-free requirements
5 UL certification number E365873，Meets UL photovoltaic standards, based on UL 2579, 1000 VDC maximum
6 Rated current: 1-15 A ratings available;
7 Breaking capacity: 10,000A;

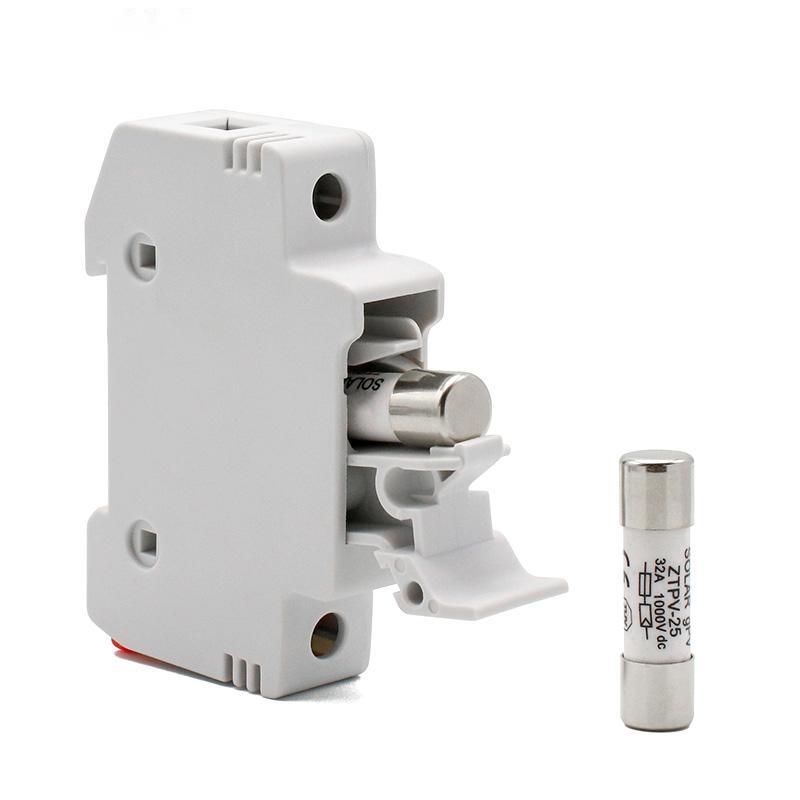

8 Multiple installation options are available: Fuse Clips, Fuse Blocks and Multi-Pole Global Modular Fuse Holders Assembly Kit.
9 In the measurement of DC resistance to cold ambient temperature <25 ℃, 10% of rated current
1 Dedicated fuse for PV combiner box 1000V
2 Product standard size 10 X 38MM
3 Special engineering materials pipes, silver-plated copper cap
4 Components RoHS compliant and halogen-free requirements
5 UL certification number E365873，Meets UL photovoltaic standards, based on UL 2579, 1000 VDC maximum
6 Rated current: 1-15 A ratings available;
7 Breaking capacity: 10,000A;
8 Multiple installation options are available: Fuse Clips, Fuse Blocks and Multi-Pole Global Modular Fuse Holders Assembly Kit.
9 In the measurement of DC resistance to cold ambient temperature <25 ℃, 10% of rated current
