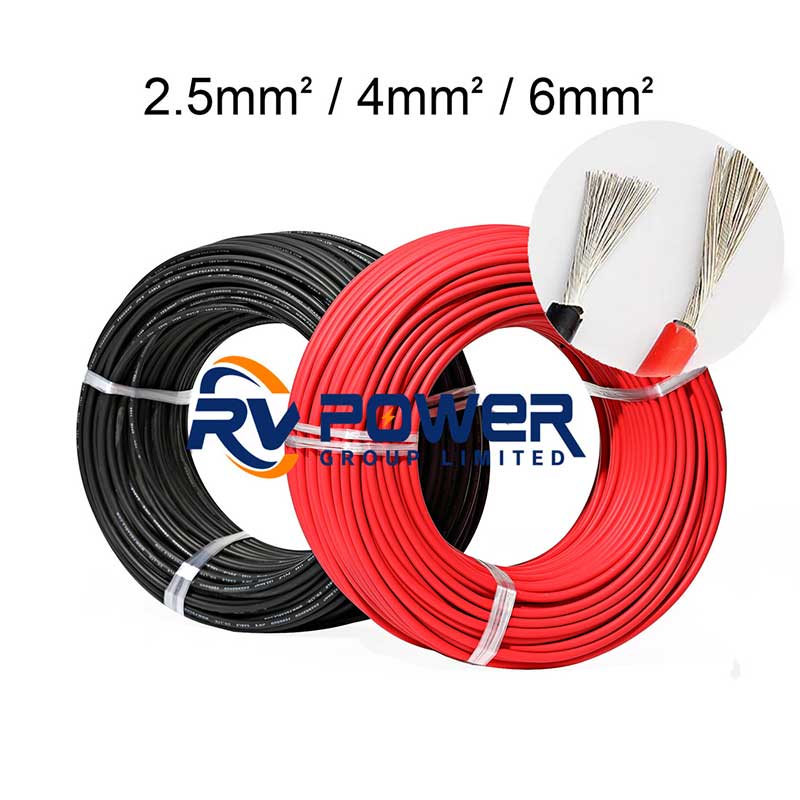

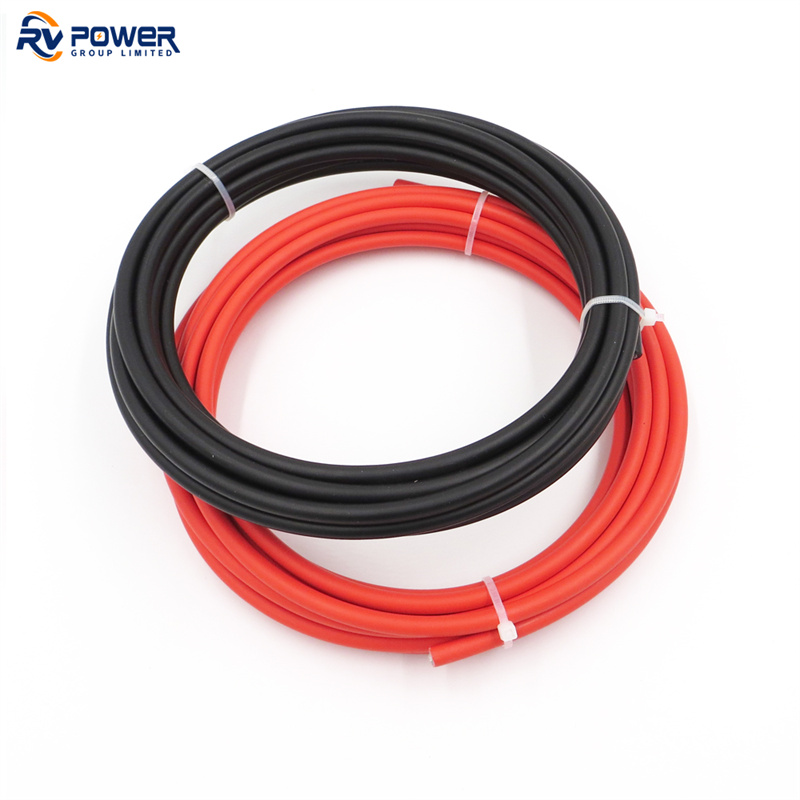

TUV PV1-F Solar Cable

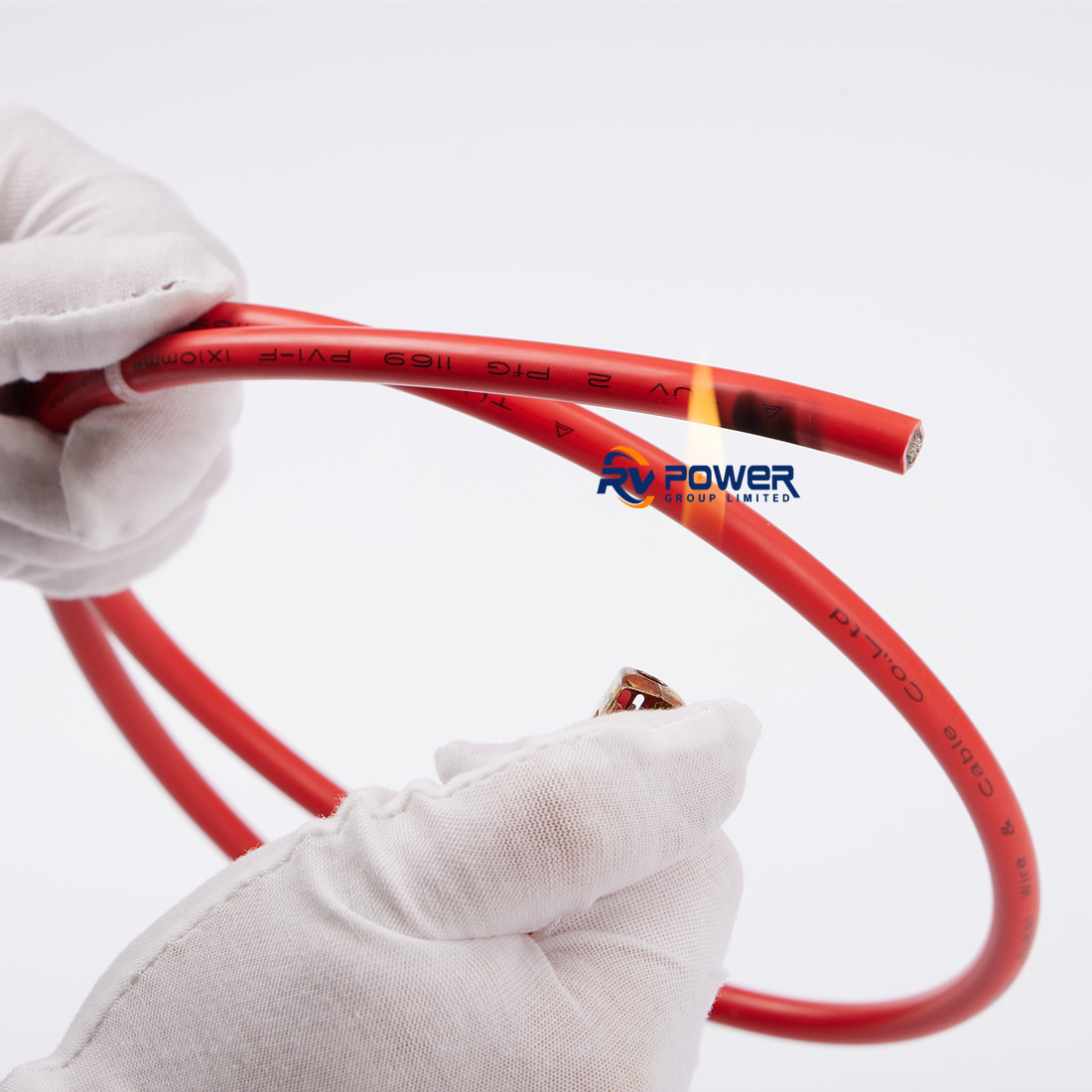

Solar Cable is a interconnection cable which is used in the photovoltaic (PV) Power generation. To achieve the maximum satisfaction of our clients, we are involved in manufacturing and supplying Solar DC Cables at the most reasonable rates. Furthermore, these cables are also used in roof mounted systems and outdoor ground. Offered cables are halogen free compound having nonflammable and low burn properties. It is safer and is free from health exposure in case of fire.

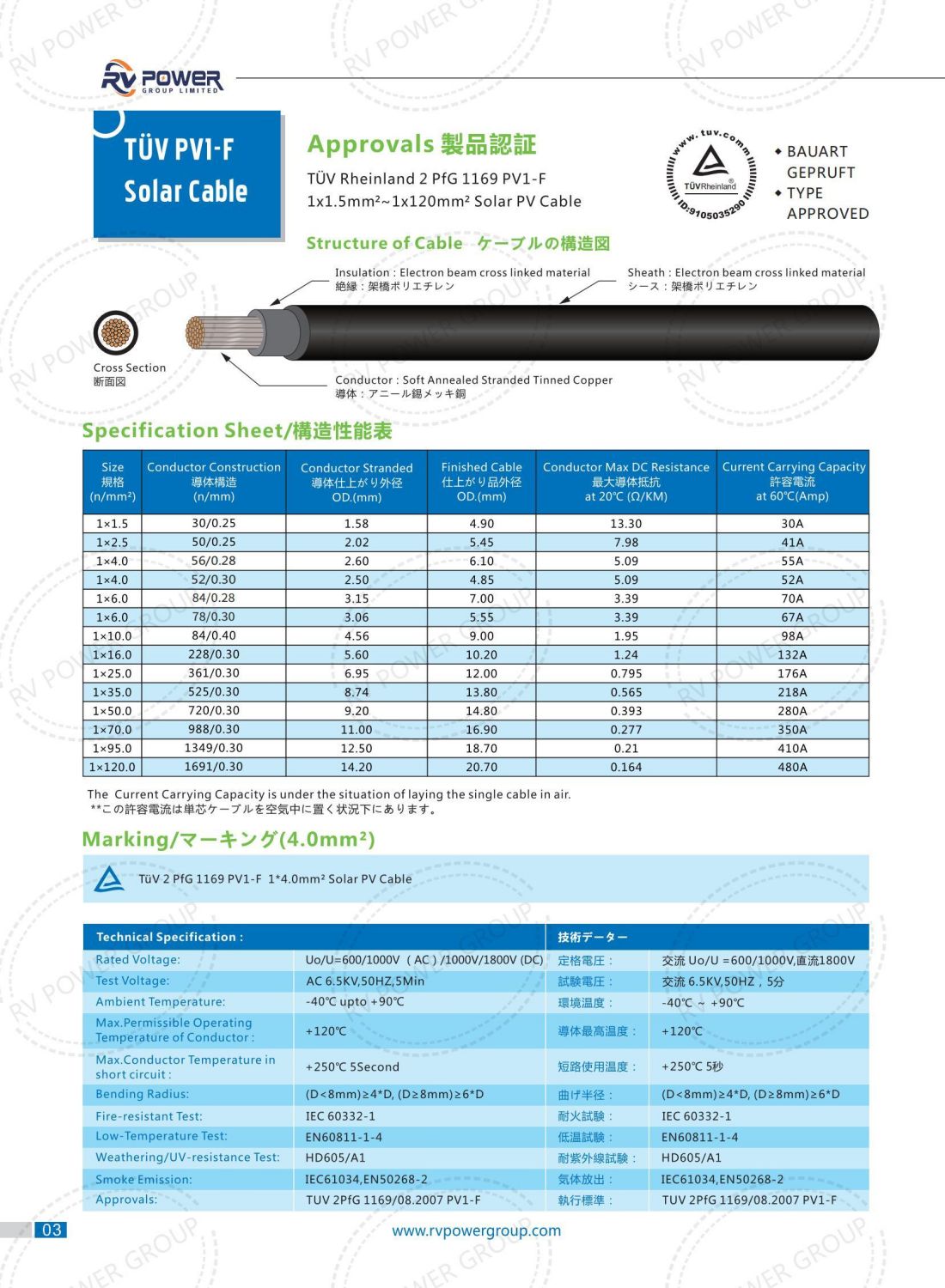

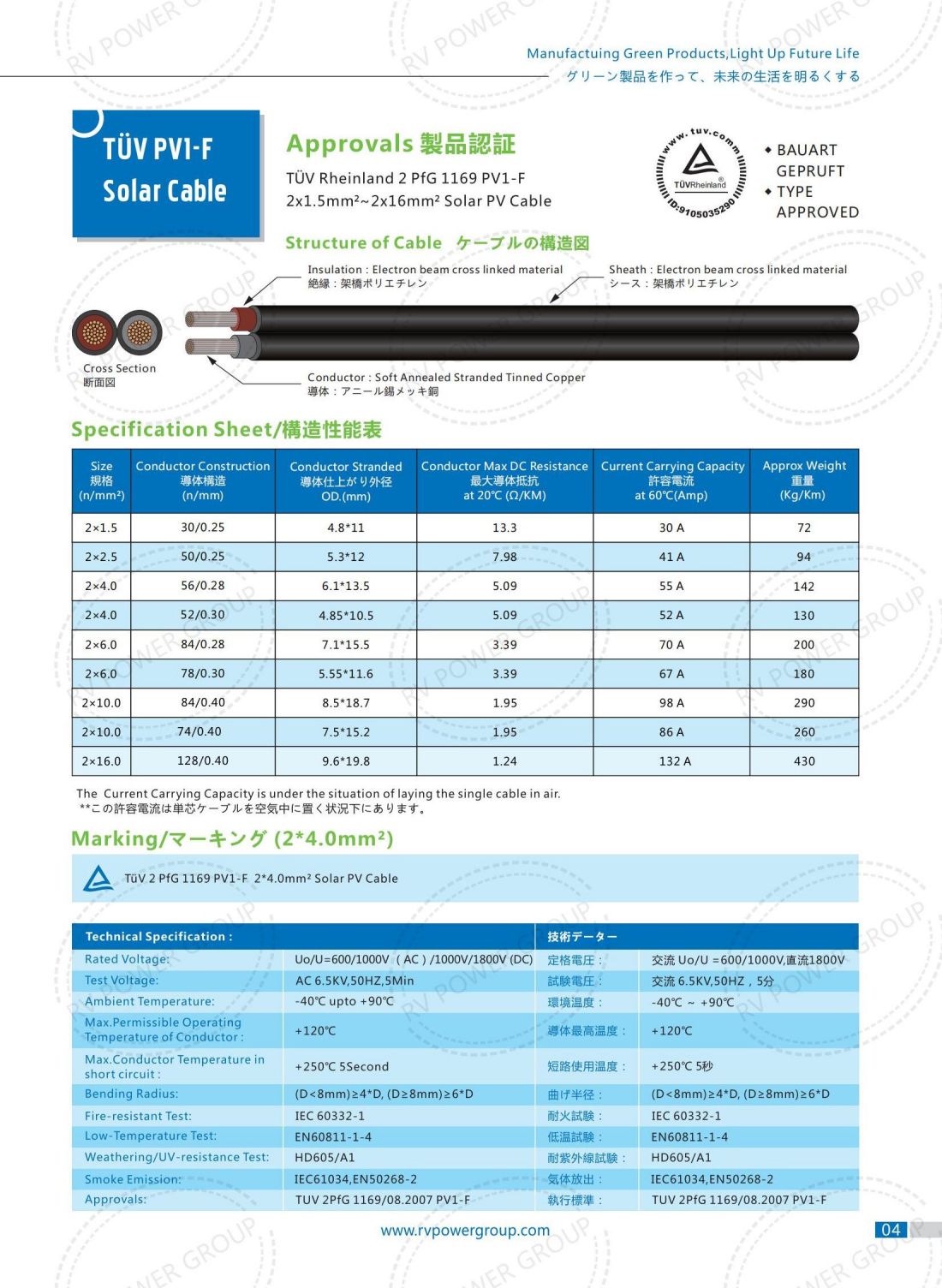

Specification PV1-F Cable

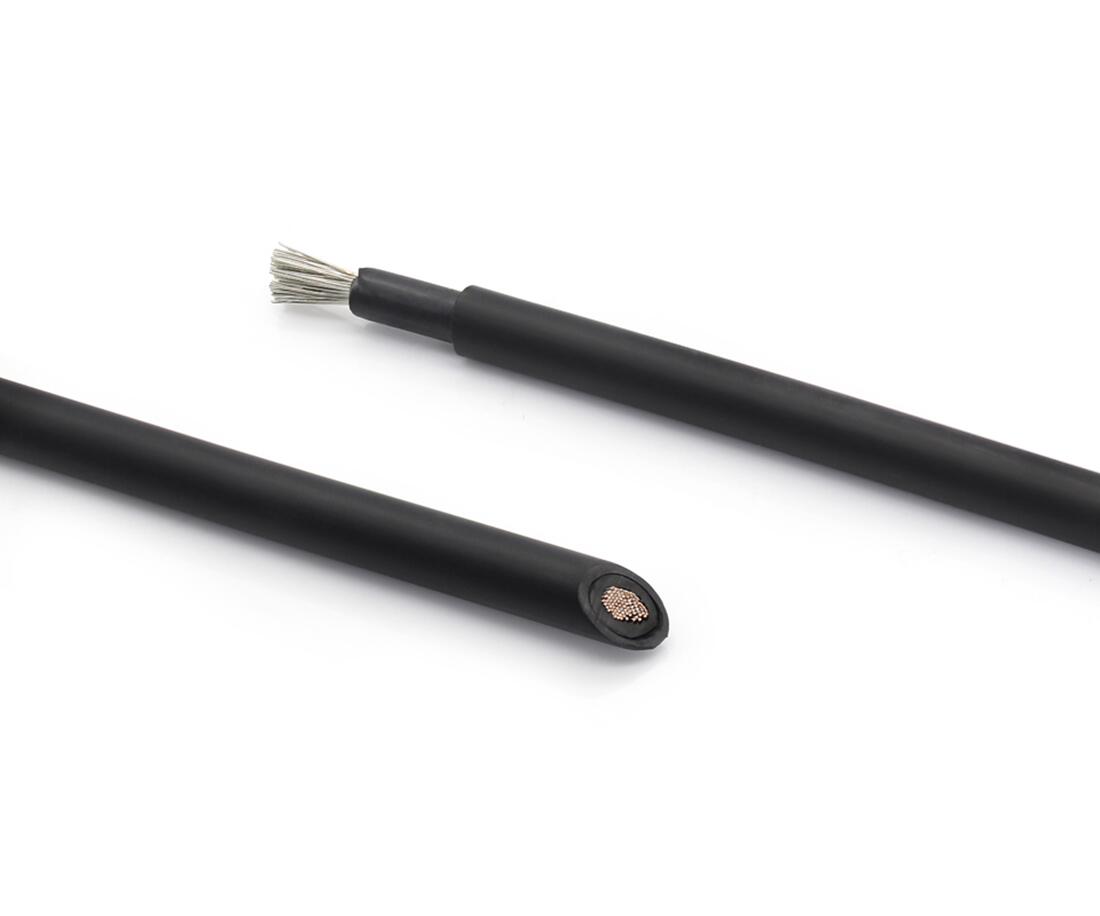

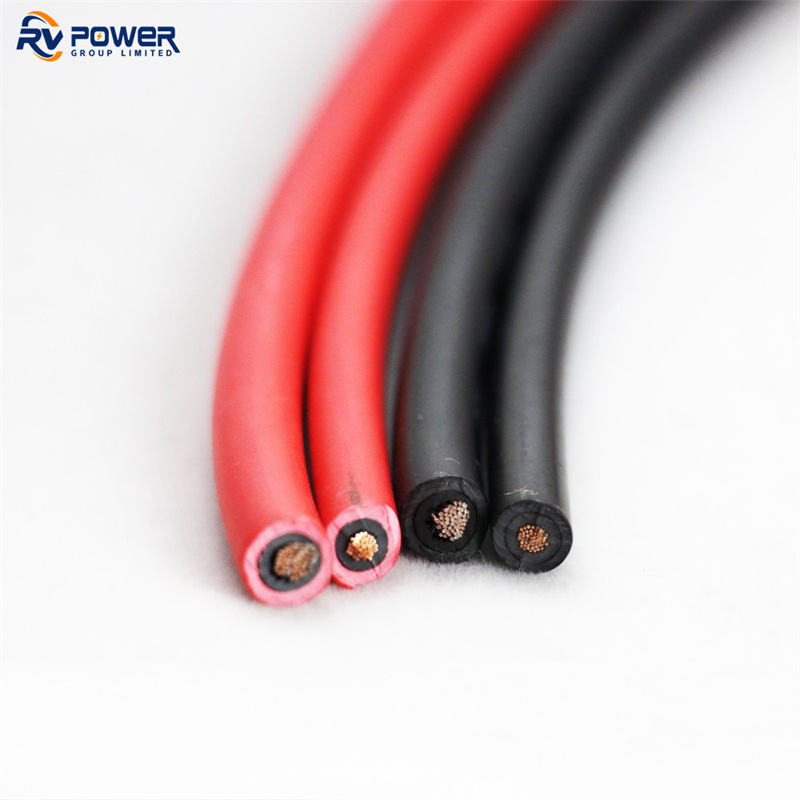

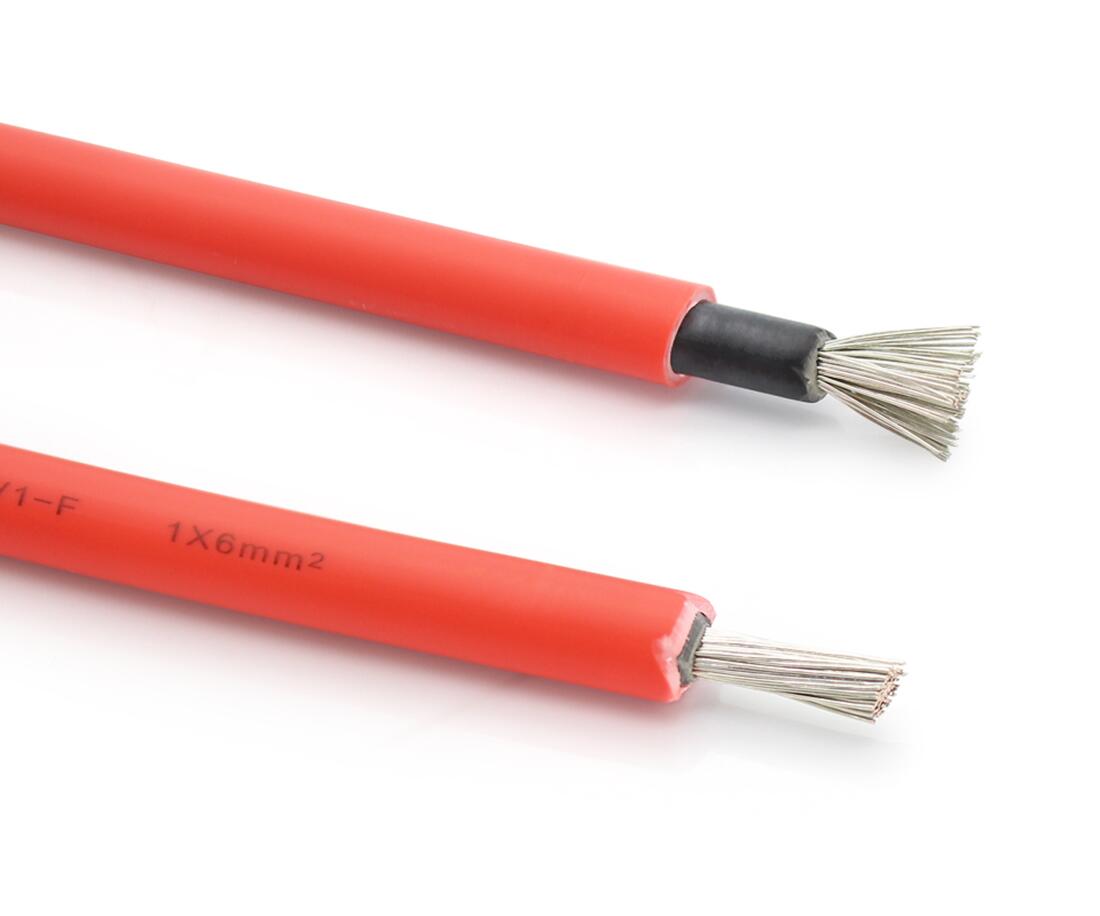

Conductor: Tinned fine Re copper strands, according to VDE0295/IEC60228.Class5
Insulation: Polyolefin Copolymer electron-beam cross-linked
Sheath Jacket: Polyolefin Copolymer electron-beam cross-linked
Nominal Voltage: Uo/U=600V/1000VAC,1000/1800VDC
Test voltage: 6500V,50Hz,5Min
Temperature Rating: -40oC-90oC, More Than 25 Years (TUV)
Smoke Emission: IEC61034,EN 50268-2
Low Fire Load: DIN 51 900
Certification: TUV 2PFG 1169/08.2007 PV1-F
