SOLAR CABLE

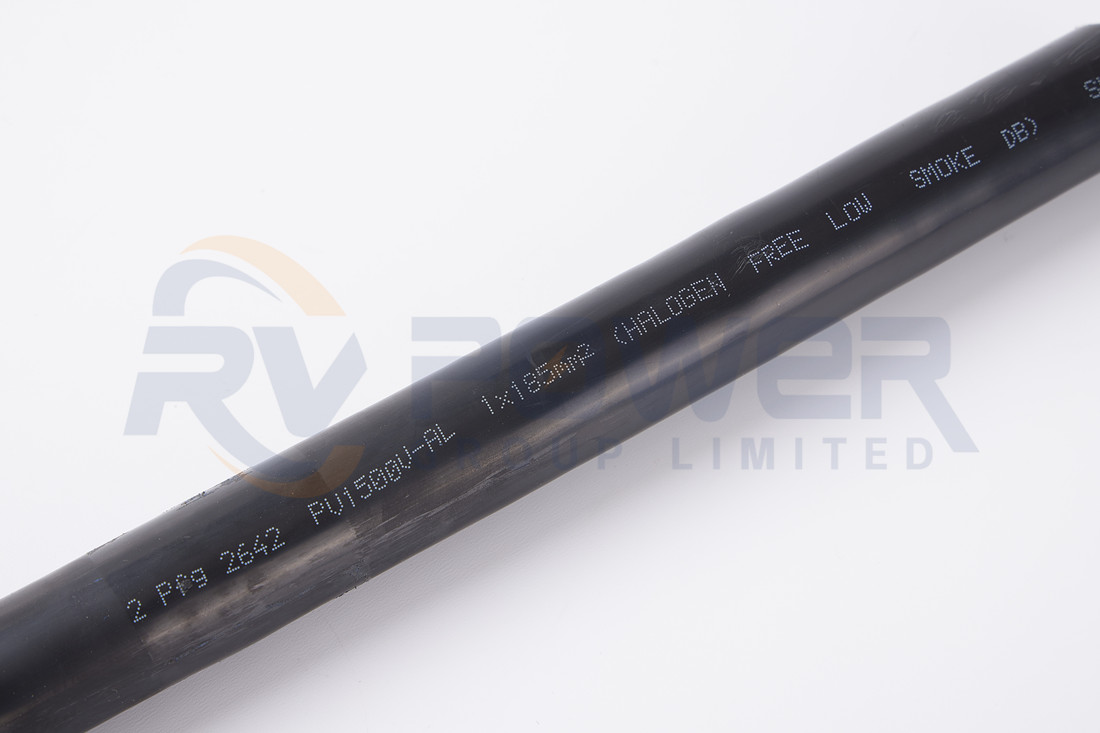

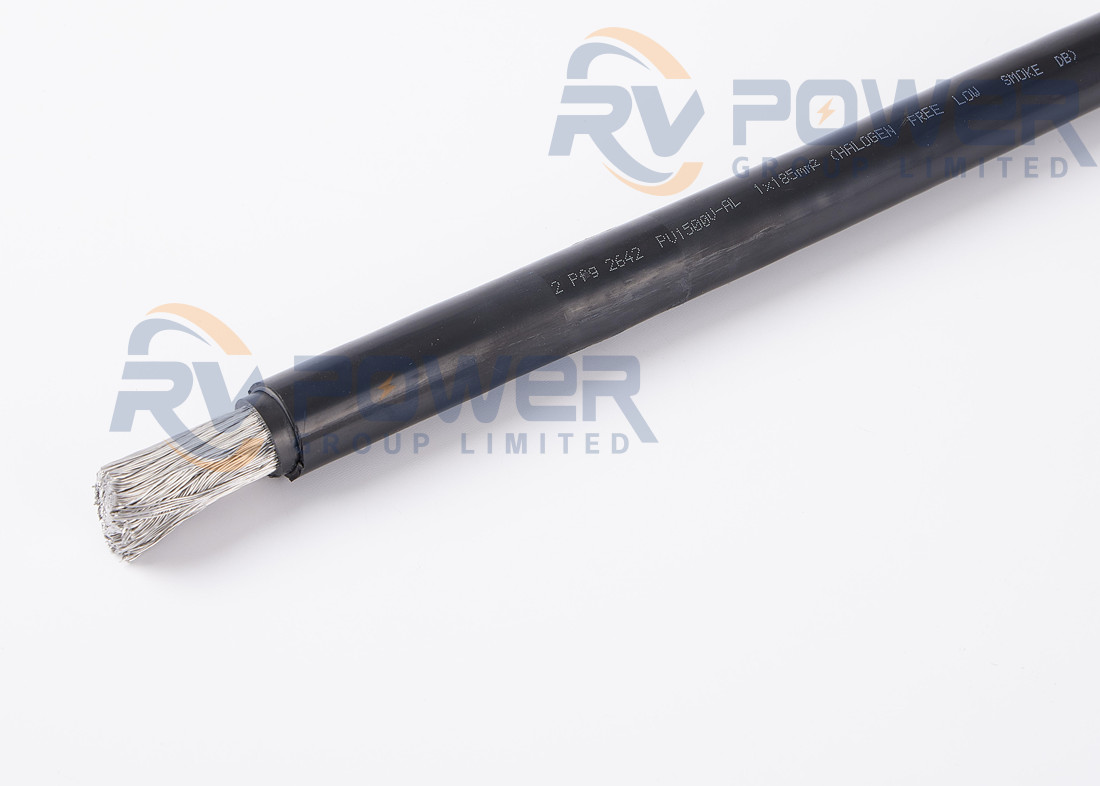

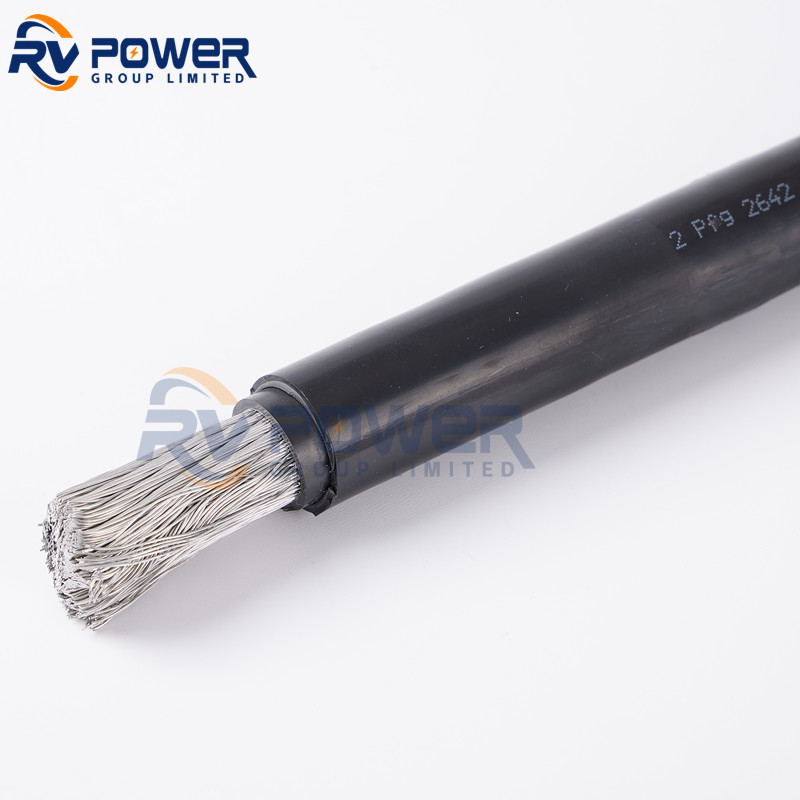

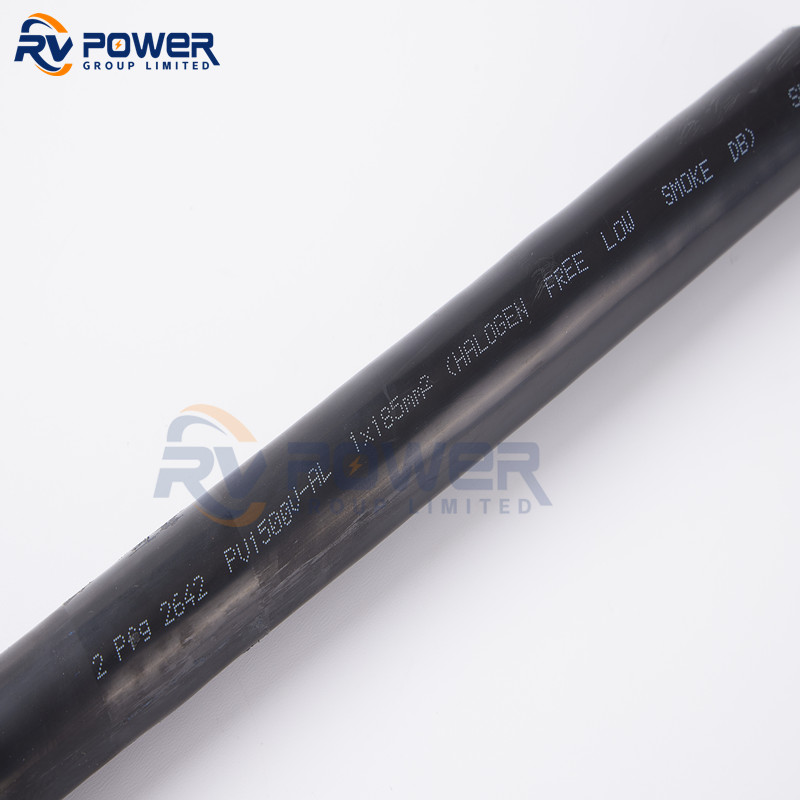

                         PV1500DC‐AL SOLAR CABLE ------Aluminium PV cable.

DC Feeder Aluminium 1500 PV cable is suitable for all types of underground and open air solar installations.

This cable is recommended for connections between string boxes and photovoltaic inverters in large scale rooftops or ground farms.

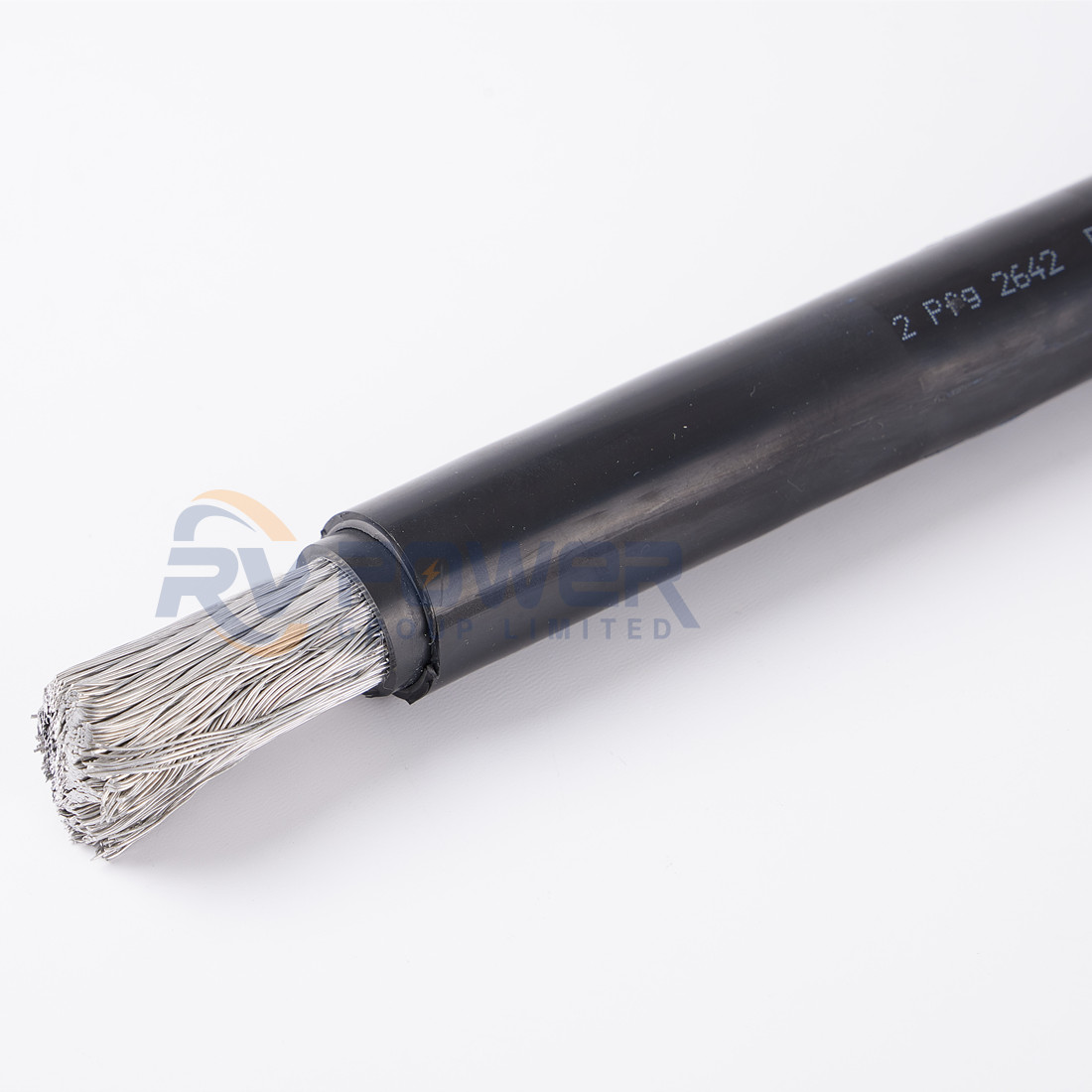

Conductor： Aluminium, class 2 based on EN 60228  and IEC 60228.

Insulation ：Cross-linked polyethylene (XLPE).

Outer sheath： Cross-linked polyethylene (XLPE).

LOW VOLTAGE 1,5 / 1,5 kV · (1,8) kV DC

Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.

Maximum service temperature: 90ºC.

Solar PV installations

EN 60228 / IEC 60228

Optional: rodent-proof and termite-proof

CHEMICAL PERFORMANCE

Chemical & Oil resistance: Good.

Grease & mineral oils resistance: Good.

ELECTRICAL PERFORMANCE

LOW VOLTAGE 1,5/1,5kV · ( 1,8) kV DC

FIRE PERFORMANCE

Flame non-propagation based on UNE-EN 60332-1 and IEC 60332-1.

MECHANICAL PERFORMANCE

Impact resistance: AG2 Medium severity.

Minimum bending radius: x5 cable diameter.

THERMAL PERFORMANCE

Maximum service temperature: 90ºC.

Maximum short-circuit
temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations)
