SOLAR CABLE

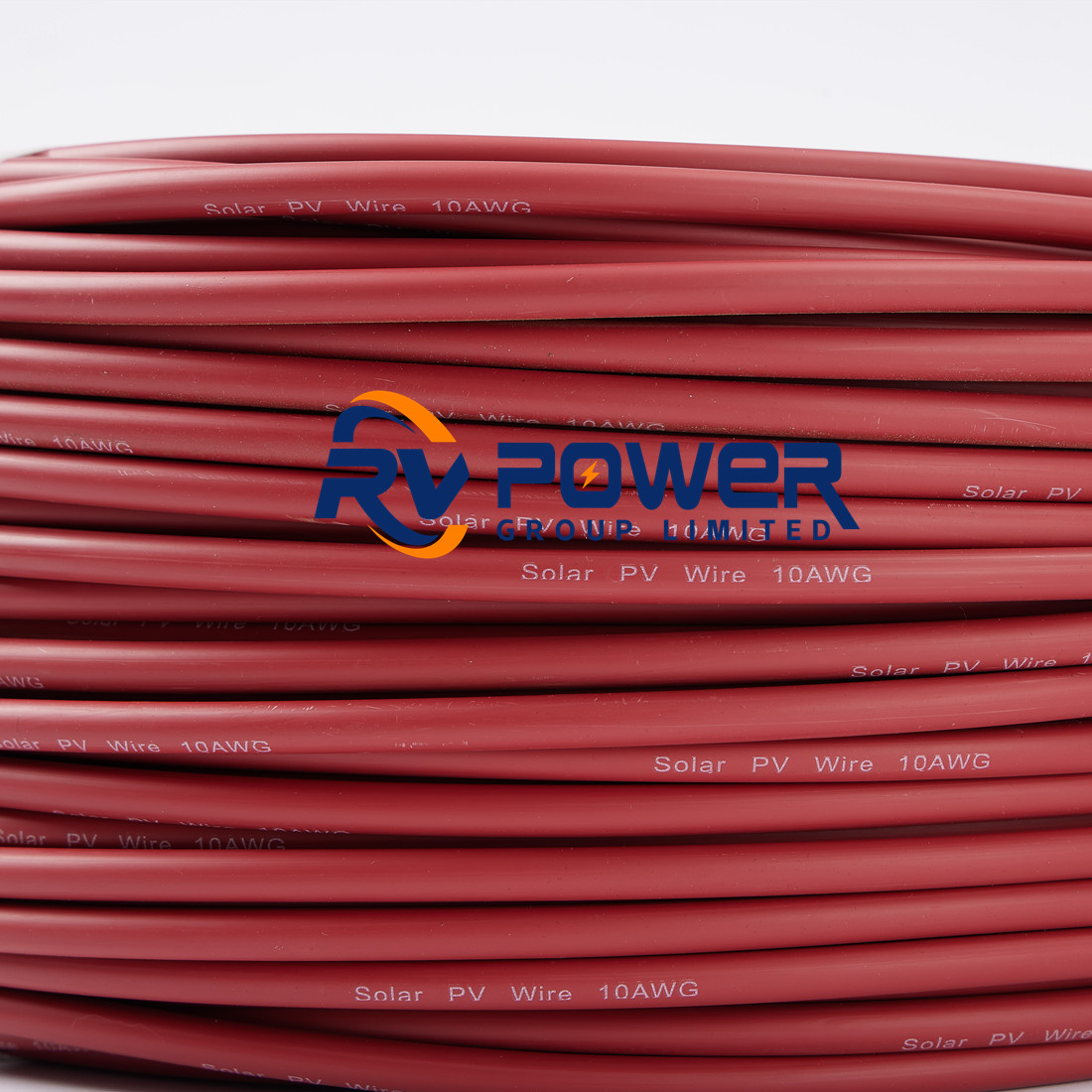

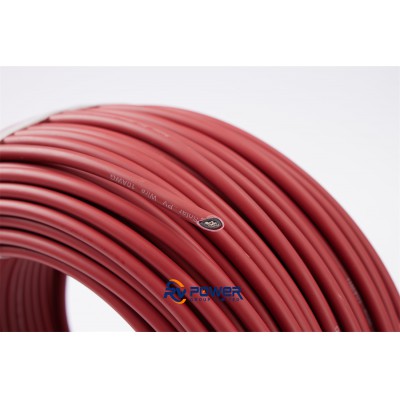

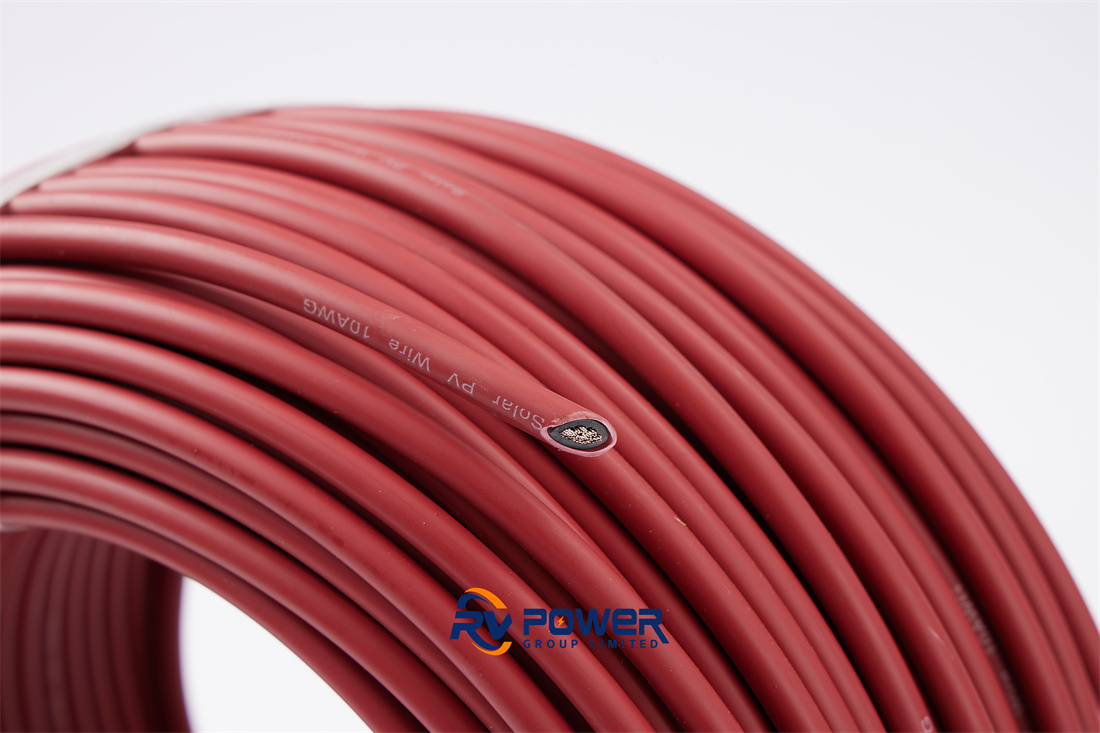

                                                   UL Type PV Solar Cables

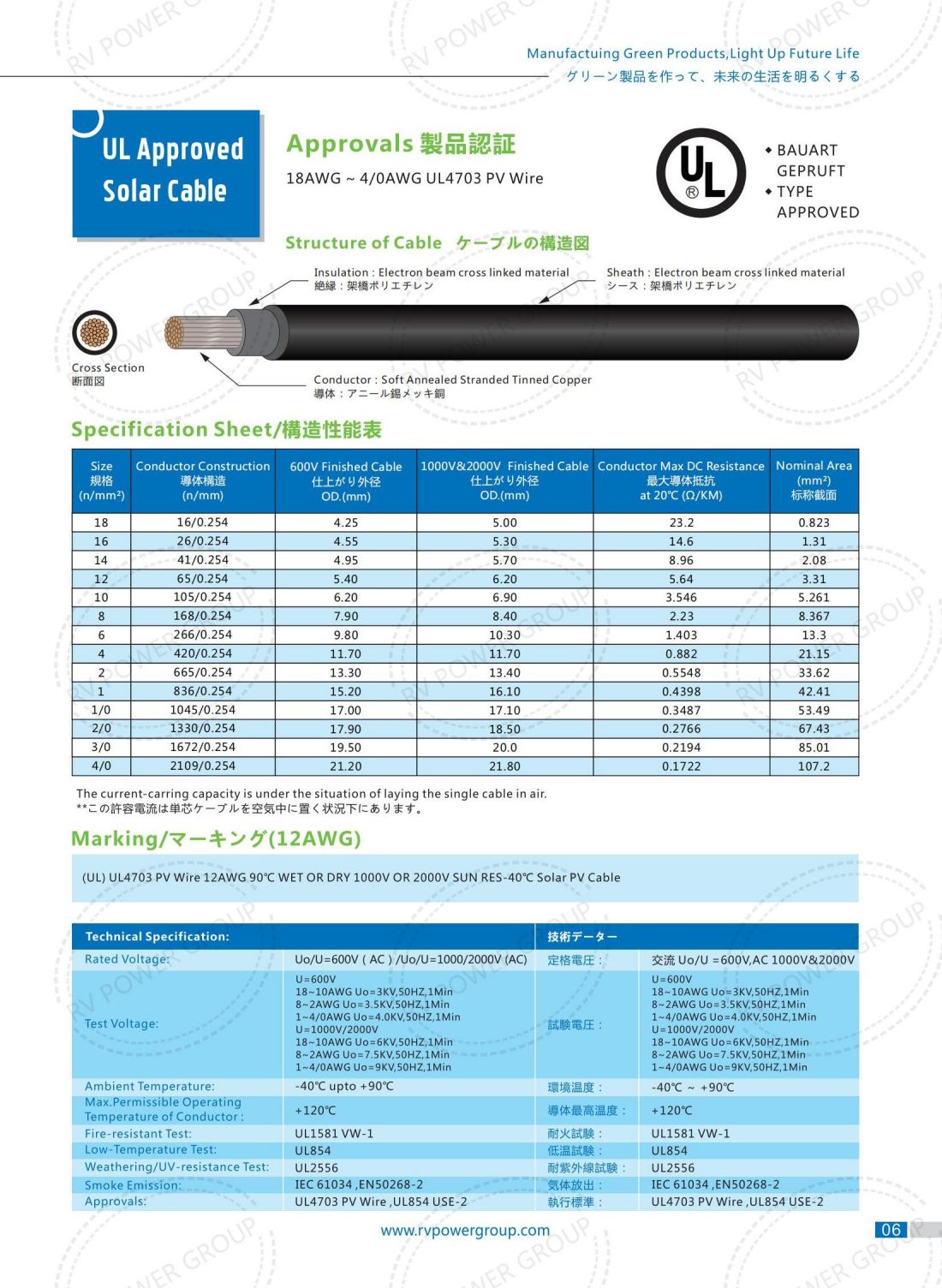

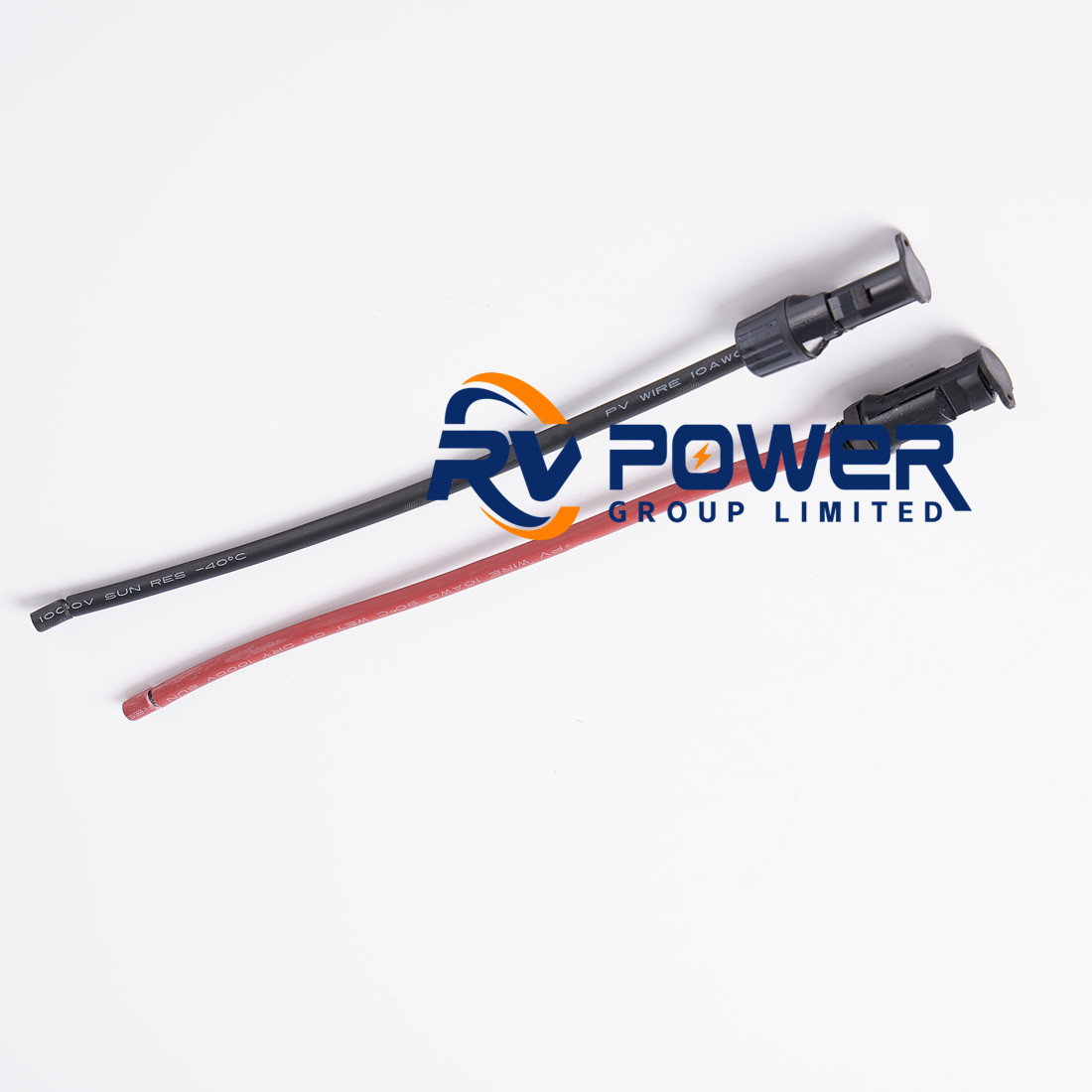

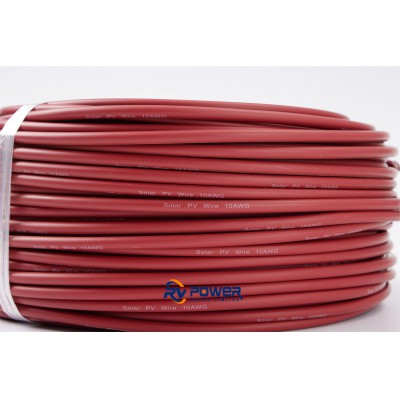

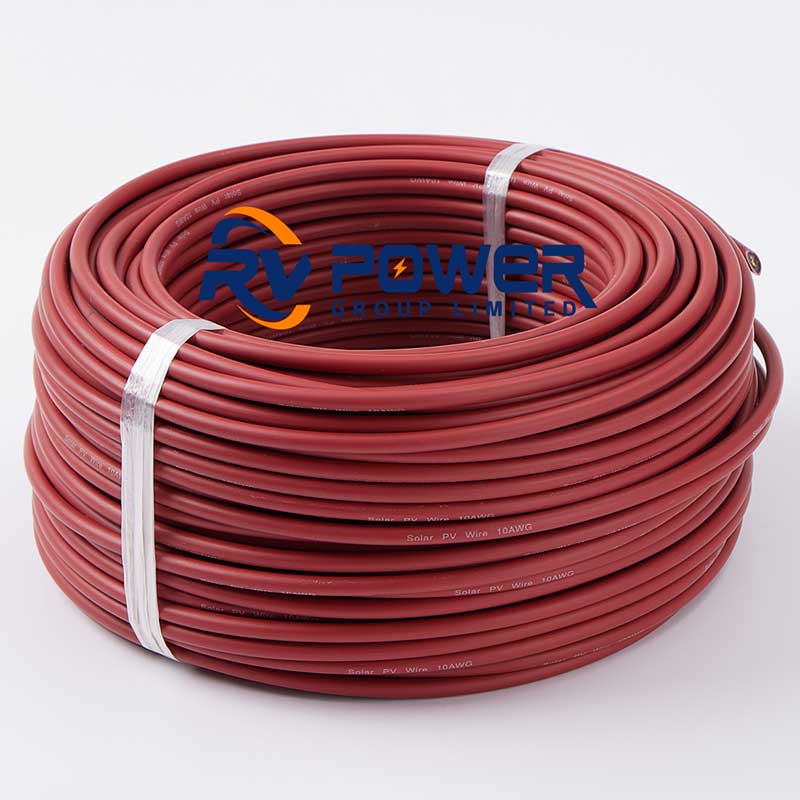

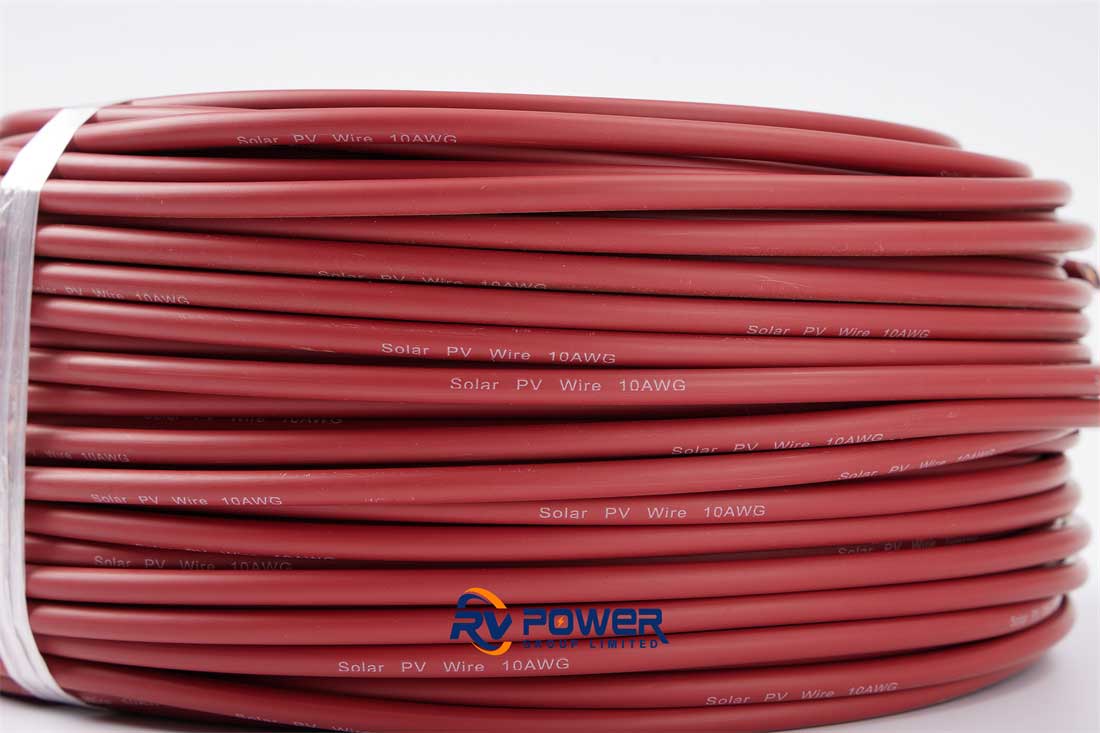

UL Type PV (Photovoltaic) UL 4703, 600V, -40°C to 90°C Product Description: Single conductor, insulated and non-integrally jacketed, sunlight resistant, photovoltaic wire rated for 90°C wet or dry, 600V for interconnection wiring of grounded and ungrounded photovoltaic power systems.Ratings only apply to certain gage sizes.

Electrical Characteristics: - Maximum Operating Voltage: 600-2KV VRMS (UL PV) Physical Characteristics: - Temperature Rating: -40°C to 90°C - Conductor AWG: 18 to 8 AWG

Conductor Material: Soft Annealed tinned stranded copper

Separator: Paper Tape

Insulation Material: XLPE

Jacket Material: Sunlight-Resistant XLPE

Min. Bend Radius: 8x Diameter
