SOLAR CABLE

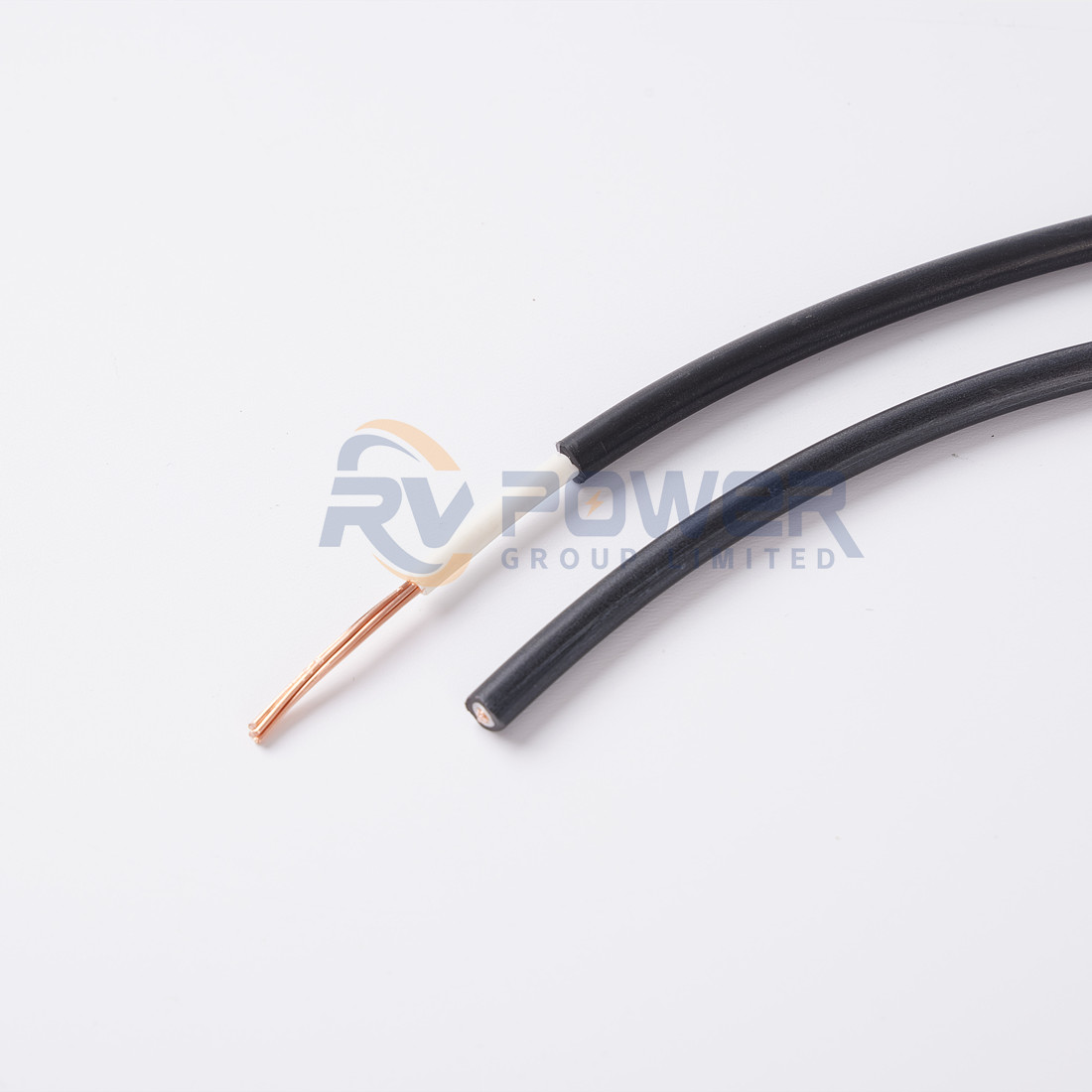

 PSE XLPE Insulated Solar Cable(HCV)

Applicatiow: Used in Nominal Voltage 600V(AC) solar power system.

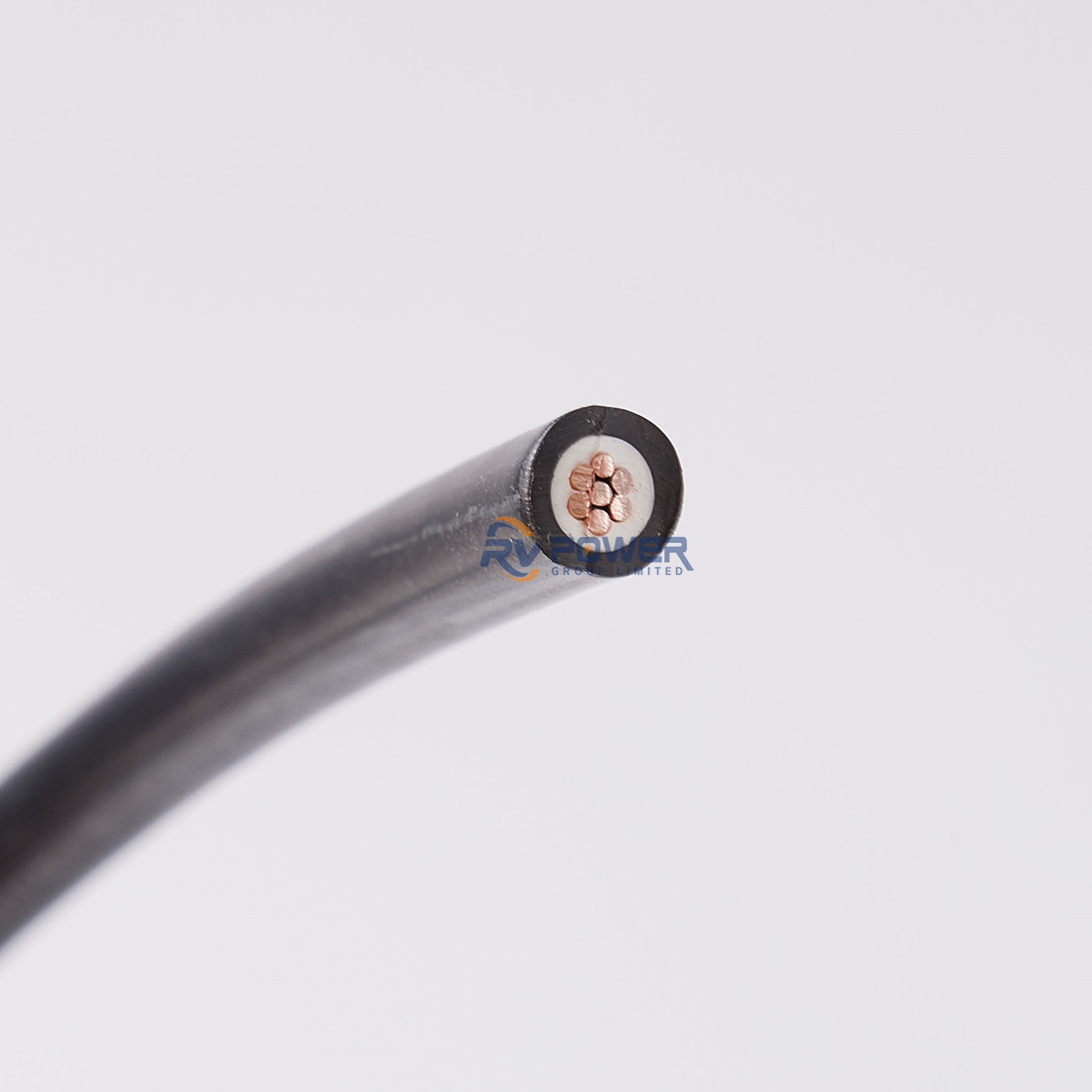

Construction
1.Conductor: Stranded copper or tinned copper, electrical property&Structure in accordance with JIS C  3102 and JIS C 3152 flexible conductor requirement.
2.Insulation: LSZH elctron-beam cross-linked Polyolefin copolymer ROHS material, prior color black or as per customer's request.
3.Outer Sheath: RoHS lead-free high-temperature-resistant PVC, prior color black or as per customer's request.

Technical Specification
1.Nominal Voltage: 600V(AC)
2.Test Voltage: No breakdown at 1.5KA(AC) 50HZ 1min 20±5ºC
3.Temperature Rating:Working Temperature -40ºC~+90ºC, max conductor Temperature 125ºC, allowable short circuit temperature 200ºC in 5 second
4.Service life: Expected life span≥25 years
5.Bending Radius: Fixed Installation>4D, occasionally moved >5D

Material Properties/Standards
1.Fire-resistant Performance: JIS C 3005
2.Low-Temperature Properties: JIS C 3005
3.Gas Emission: JIS C 3666-2
4.UV Resistant: JIS K 7350-1,2
5.Flame Test: Self-extinguishing within 60s
