S-JET Approved Solar Cable --- PV-CQ
S-JET Approved Solar Cable --- PV-CQ

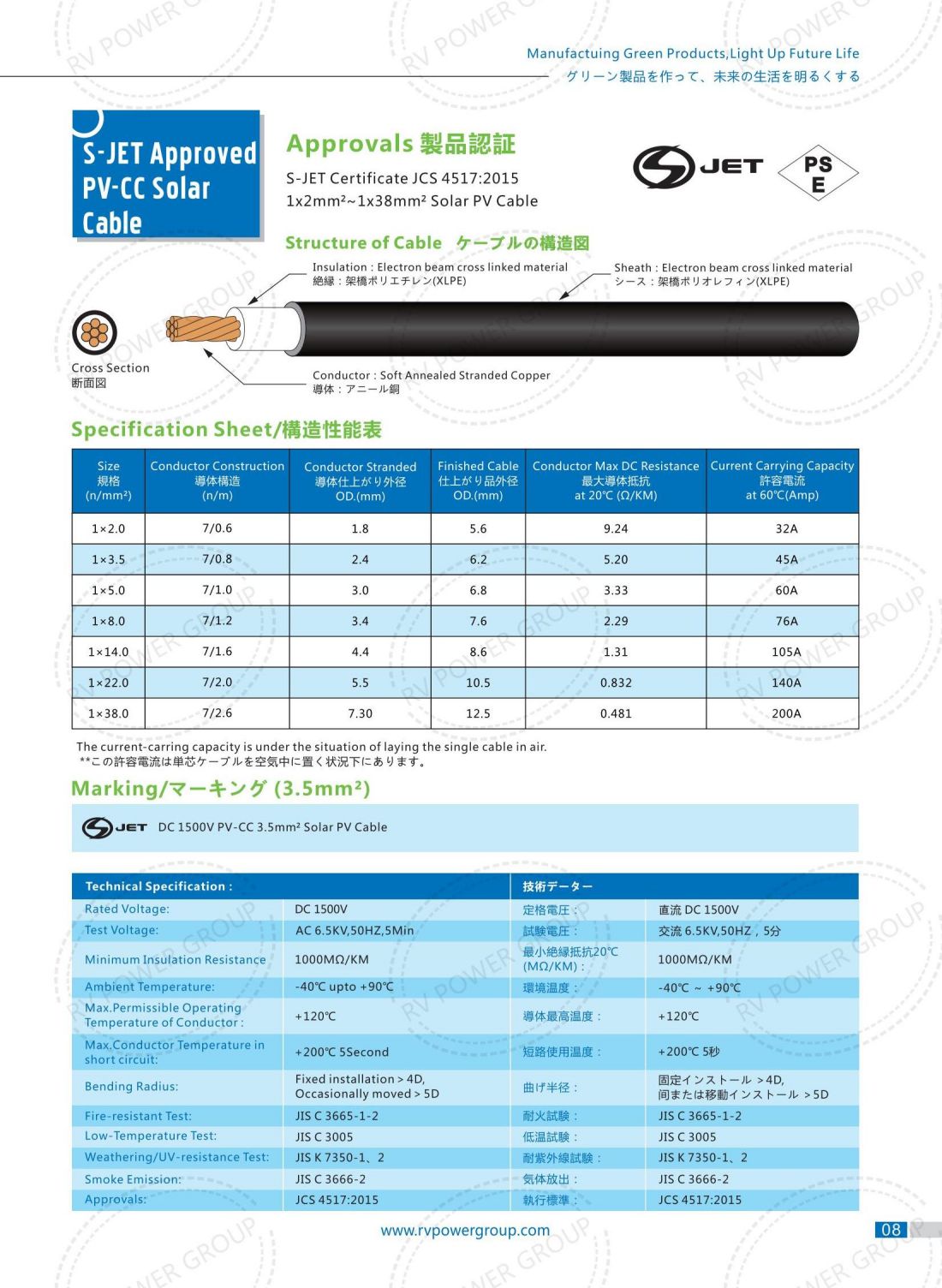

Product Description & Parameters
Solar cables are intended for use in Photovoltaic power supply systems. Optimum operating temperature is between -40°C to +90°C. It may be installed as free moving, fixed or hanging.
It can also be installed in cable trays, conduits, on or in walls.
|

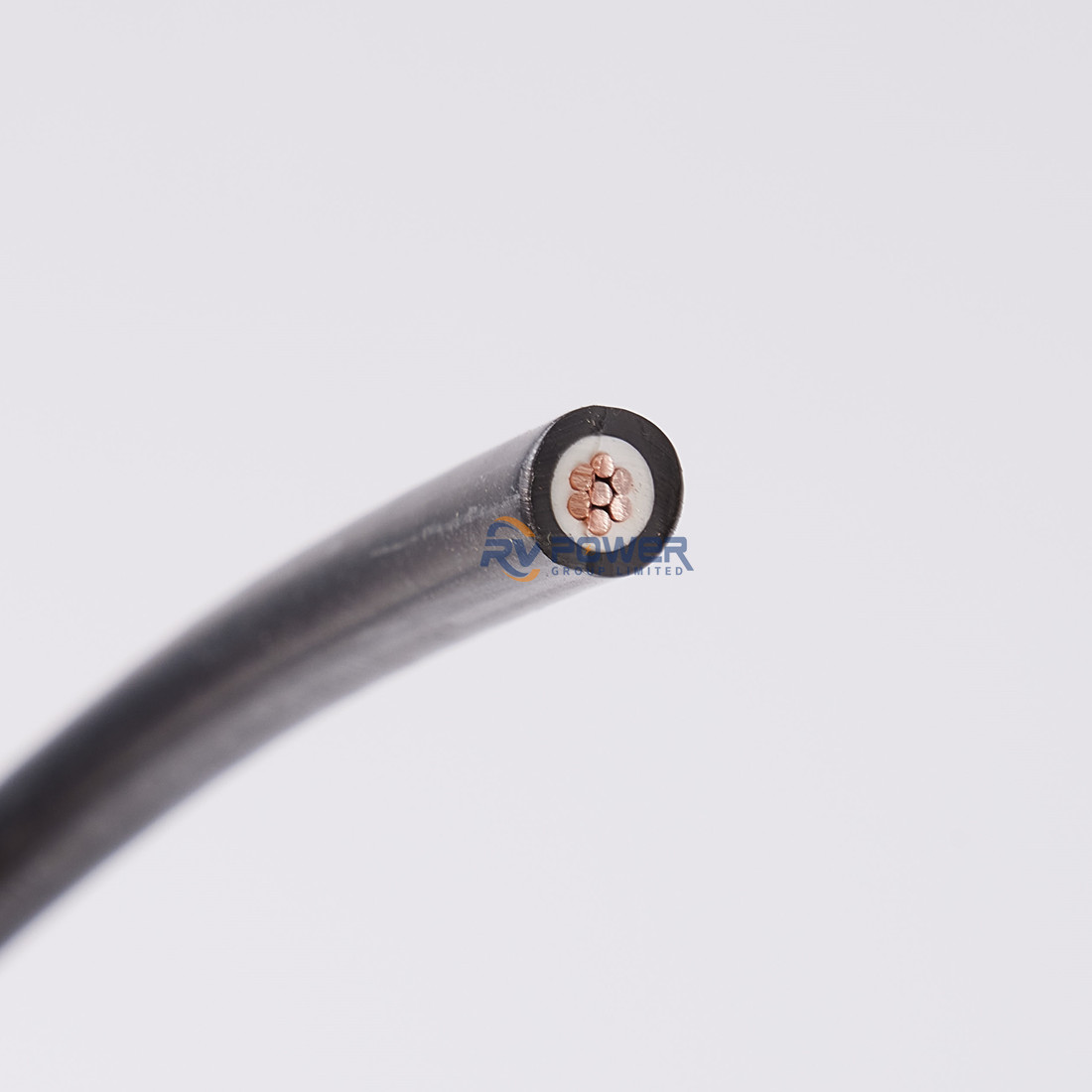

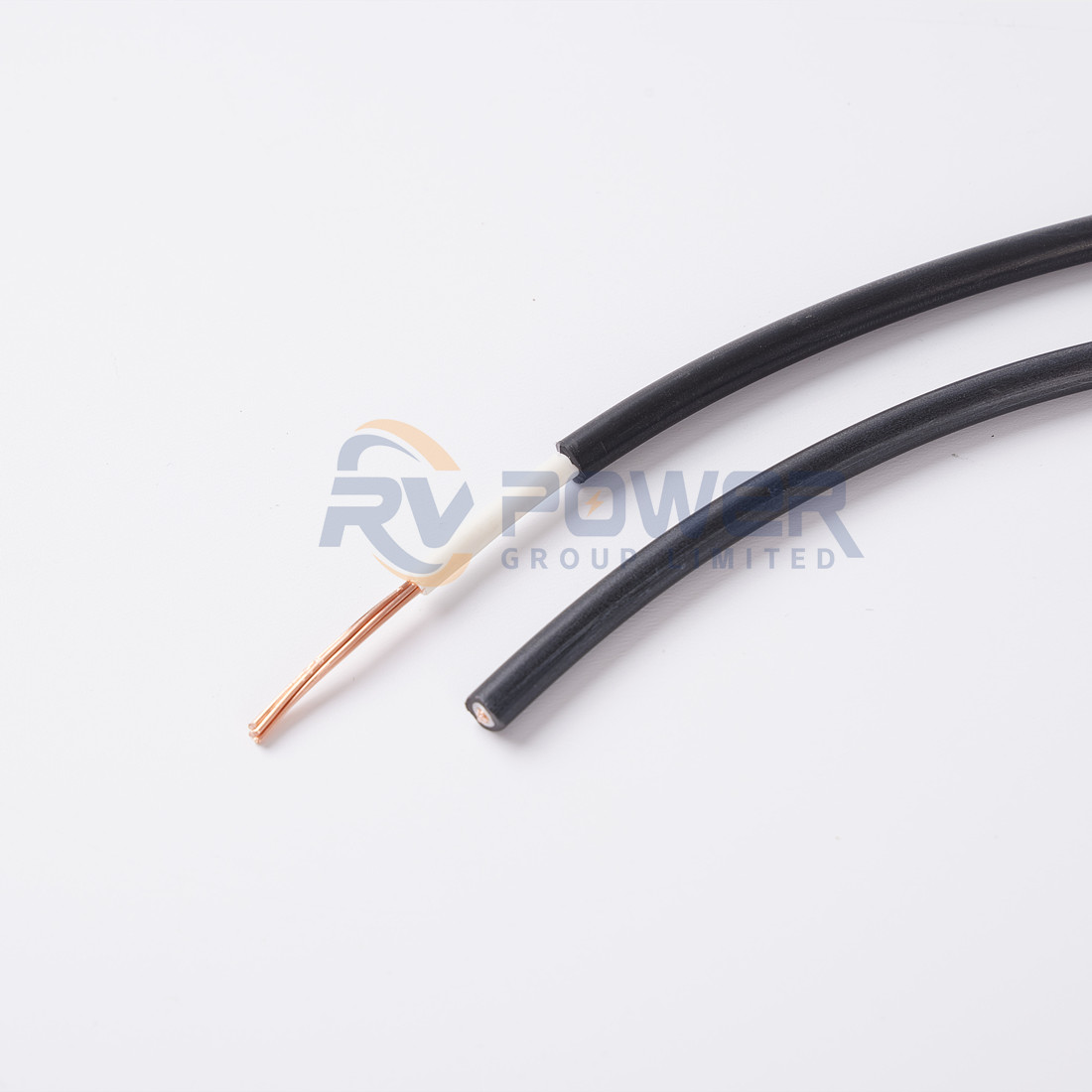

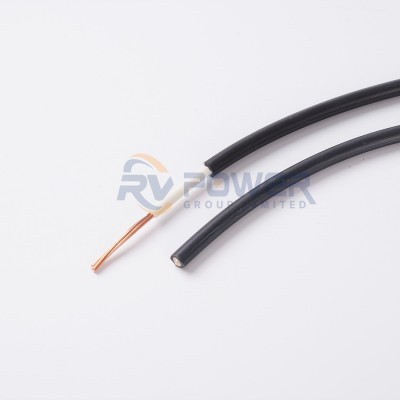

Conductor |
Stranded bare copper or tinned Copper |
|
Insulation |
LSZH electron-beam cross-linked Polyolefin copolymer ROHS material,prior color black or as customer's request. |
|
Sheath |
LSZH&UV-resistant electron-beam cross-linked Polyolefin copolymer ROHS material,prior color black or as customer's request. |
|
Nominal Voltage |
1.5KV(DC) |
|
Characteristic |
Electron-beam cross-linked compounds; UV,ozone and hydrolysis resistant; High temperature resistant,the materials do not metl or flow; Good cold flexibility; Very long service life>25 years at 90ºC; Compatible to all popular connectors |
|
Temperature Rating |
Working Temperature-40°c upto +90°c,Max conductor Temperature 125°c,Allowable short circuit temperature 200°c in 5 second. |
|
Service Life |
Expected life span≥25years |
|
Bending Radius |
Fixed installation>4D Occasionally moved>5D |
|
Applications |
DC cables used in DC rated voltage below 1500V(DC) solar power system, between the solar panel modules, solar panel module & junction box and junction box & power controller. |
