SOLAR CABLE

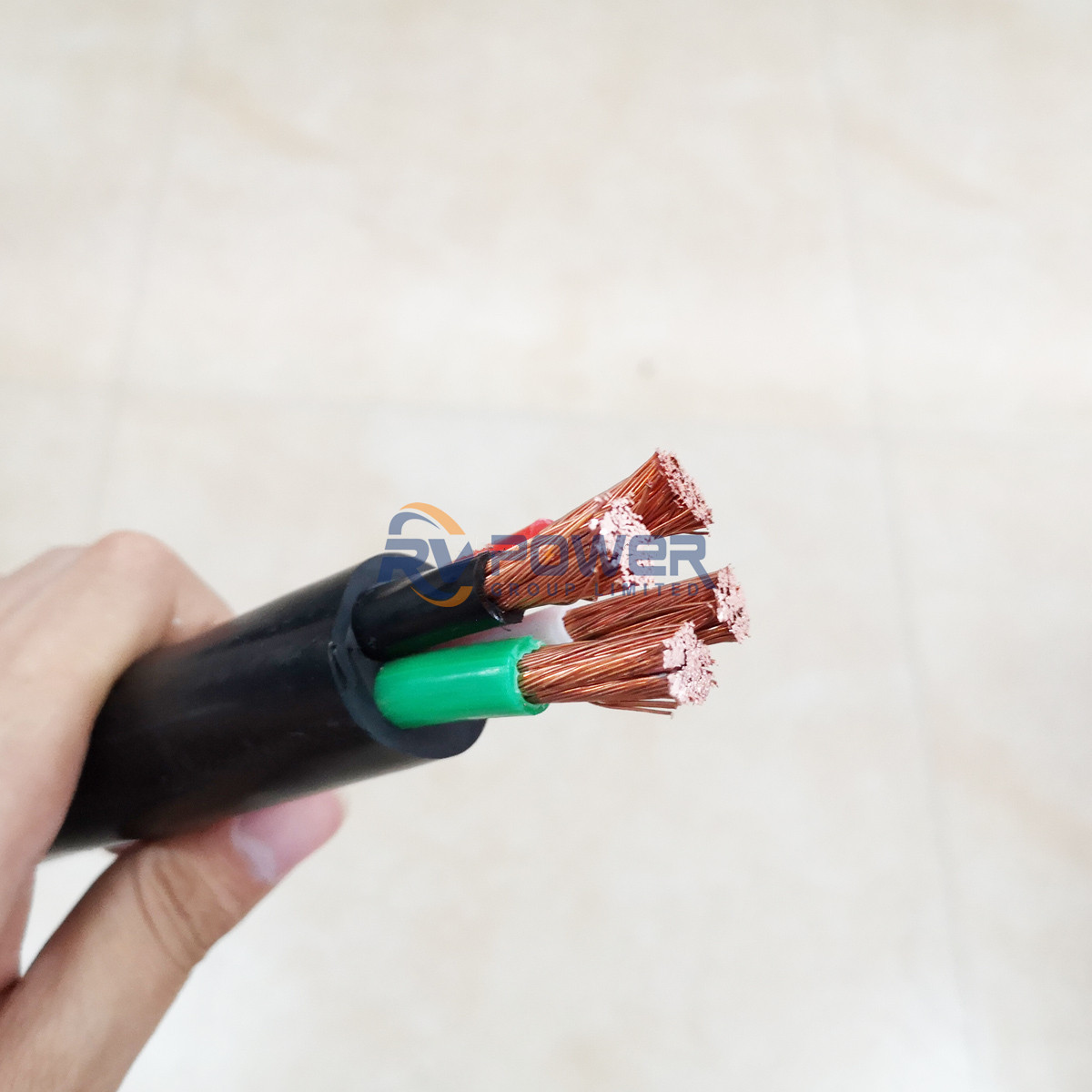

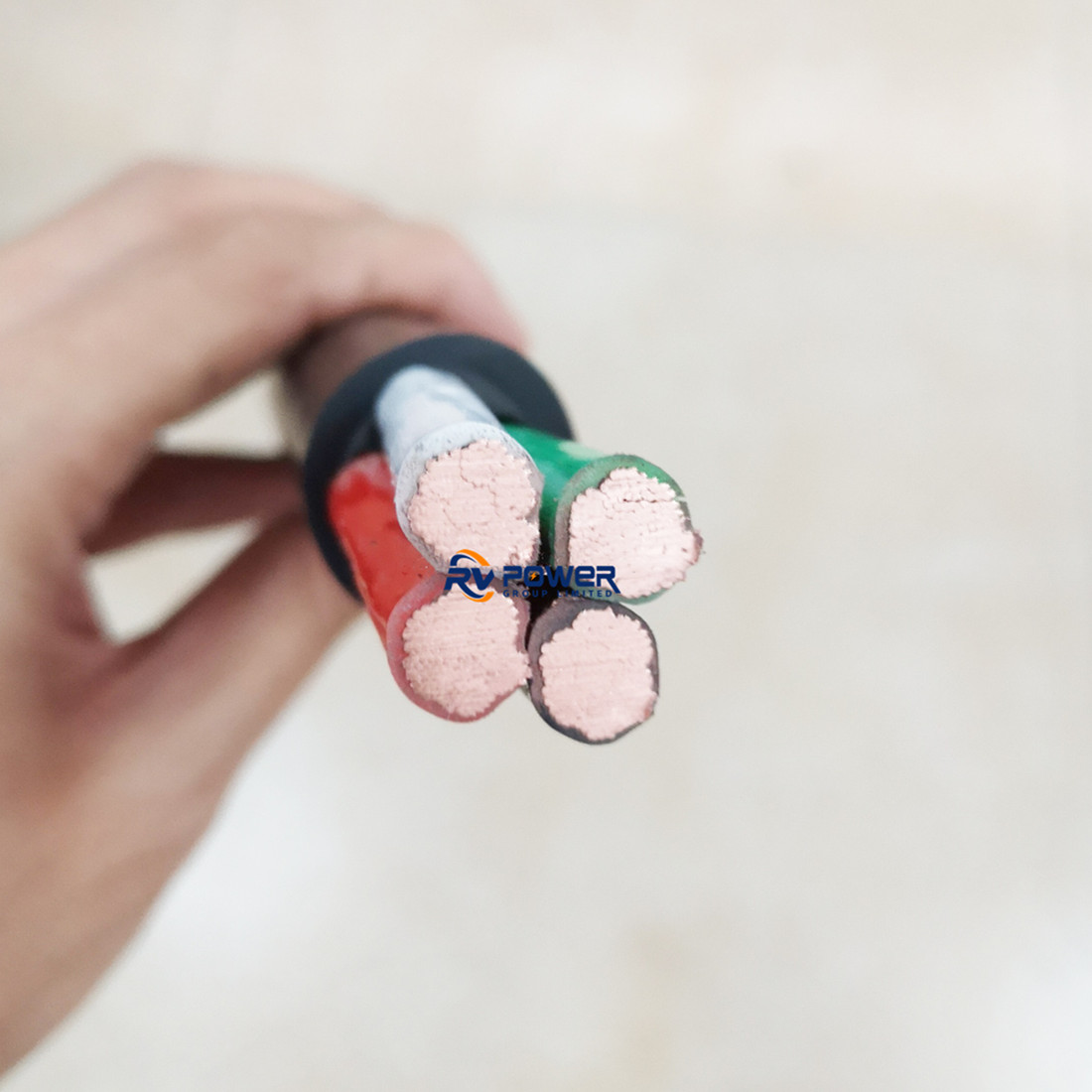

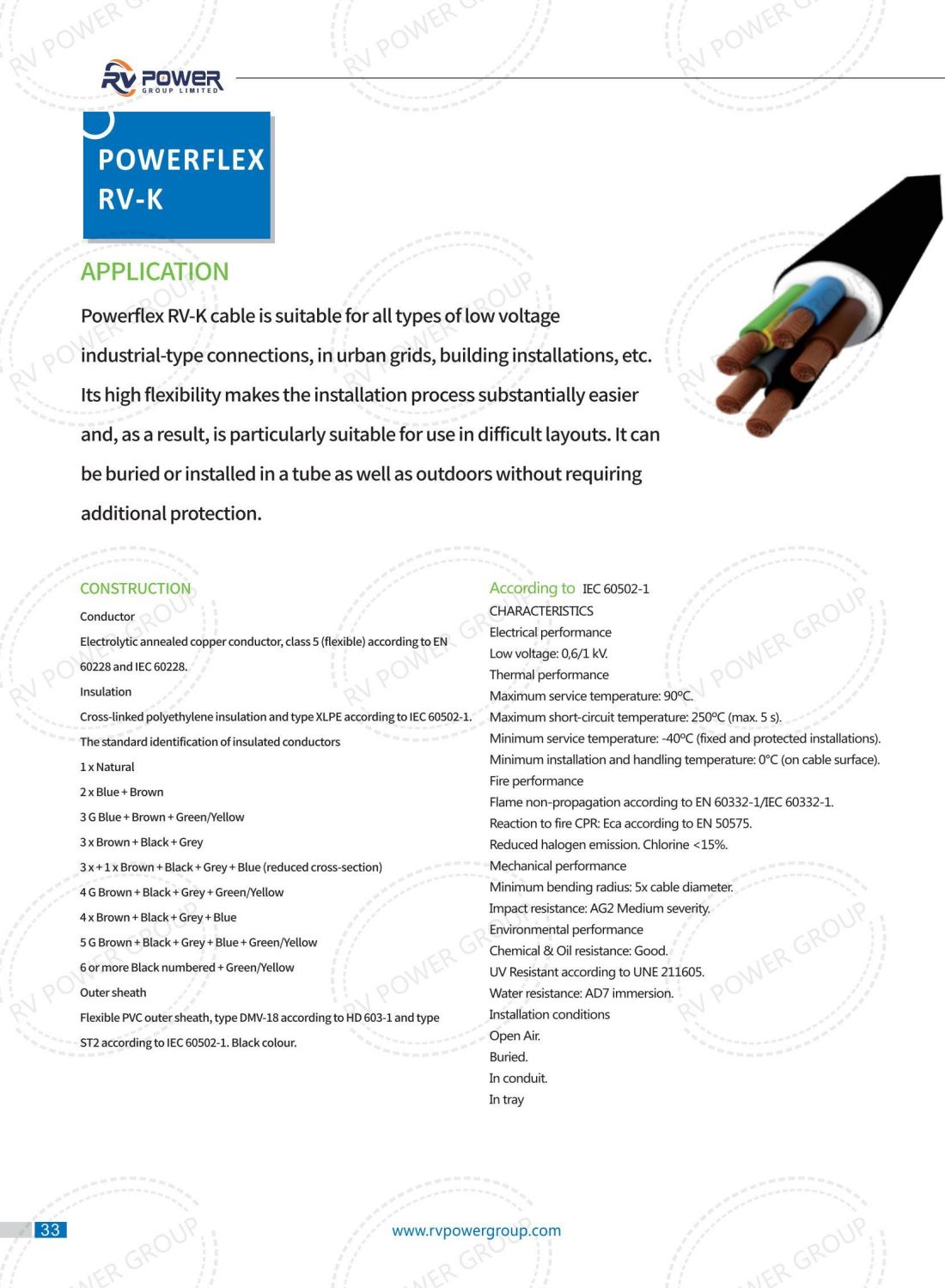

0.6/1KV (1.2kv)  Flexible CU/XLPE/PVC RV-K Multi-flex Cable

Application: A flexible power and control cable designed for fixed applications. Manufactured with flexible conductors in order to facilitate installations with sinuous courses.

Standards: UNE 21123-2, 60502-1, EN 50265, IEC 60332-1

Conductor: Class 5 flexible plain copper conductor to BS EN 60228:2005 (previously BS6360)

Insulation: XLPE (Cross-Linked Polyethylene) Type DIX-3 to HD603

Sheath: PVC (Polyvinyl Chloride) Type DMV-18 to HD603

Sheath Colour: Black

Voltage Rating: 600/1000V

Temperature Rating: -15°C to +90°C Minimum

Bending Radius: 5 x overall diameter

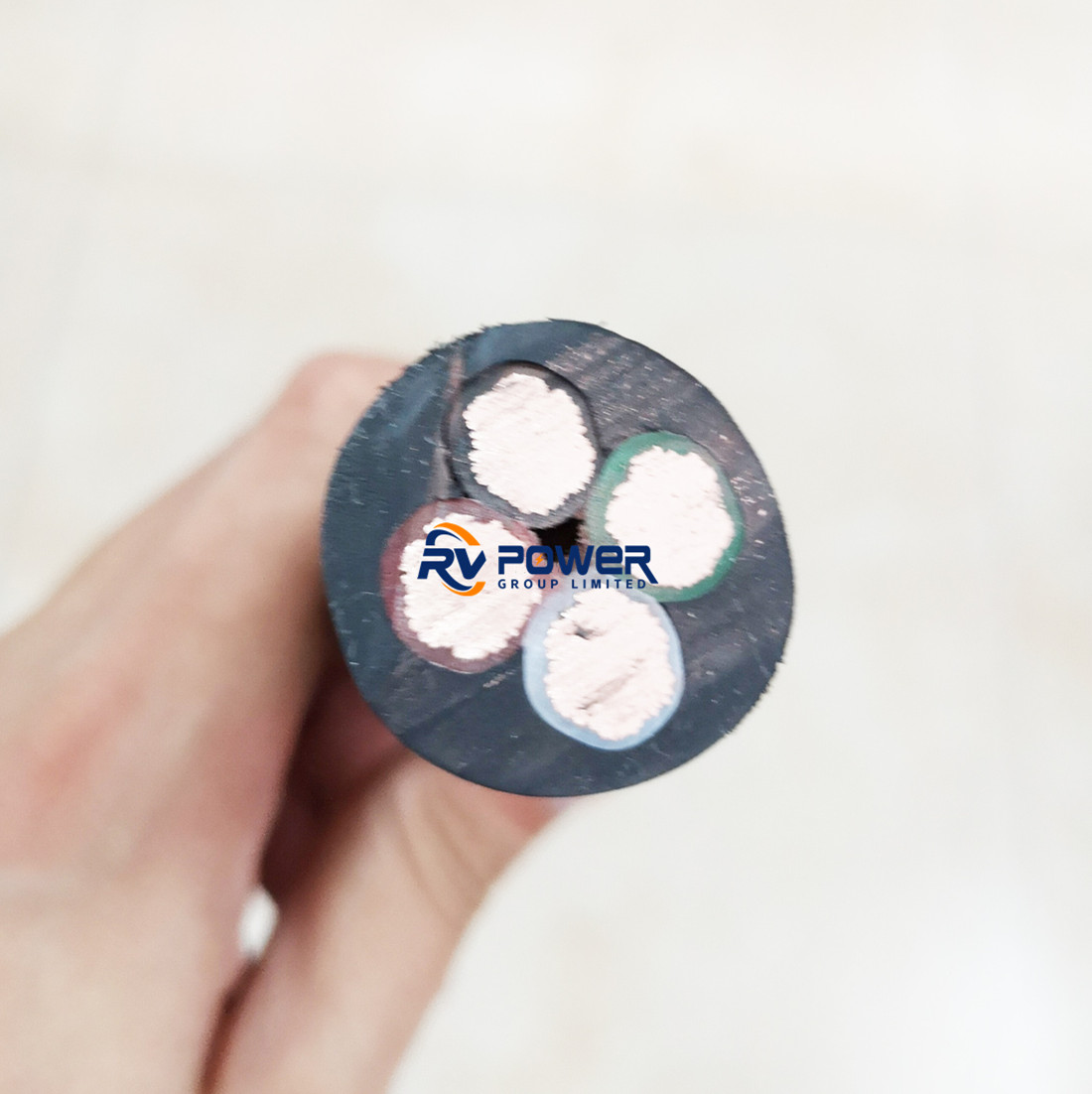

 Core Identification:
1 Core: Black
2 Cores: Blue, Brown
3 Cores including Earth Core: Blue, Brown, Green/Yellow
3 Cores: Brown, Black, Grey
4 Cores including Earth Core: Brown, Black, Grey, Green/Yellow
4 Cores: Brown, Black, Grey, Blue
5 Cores including Earth Core: Brown, Black, Grey, Green/Yellow, Blue

14 12 10 8 6 4 2 1 1/0 2/0 3/0 4/0 AWG

250 350 400 500 750 MCM

1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 mm2
