SOLAR CABLE

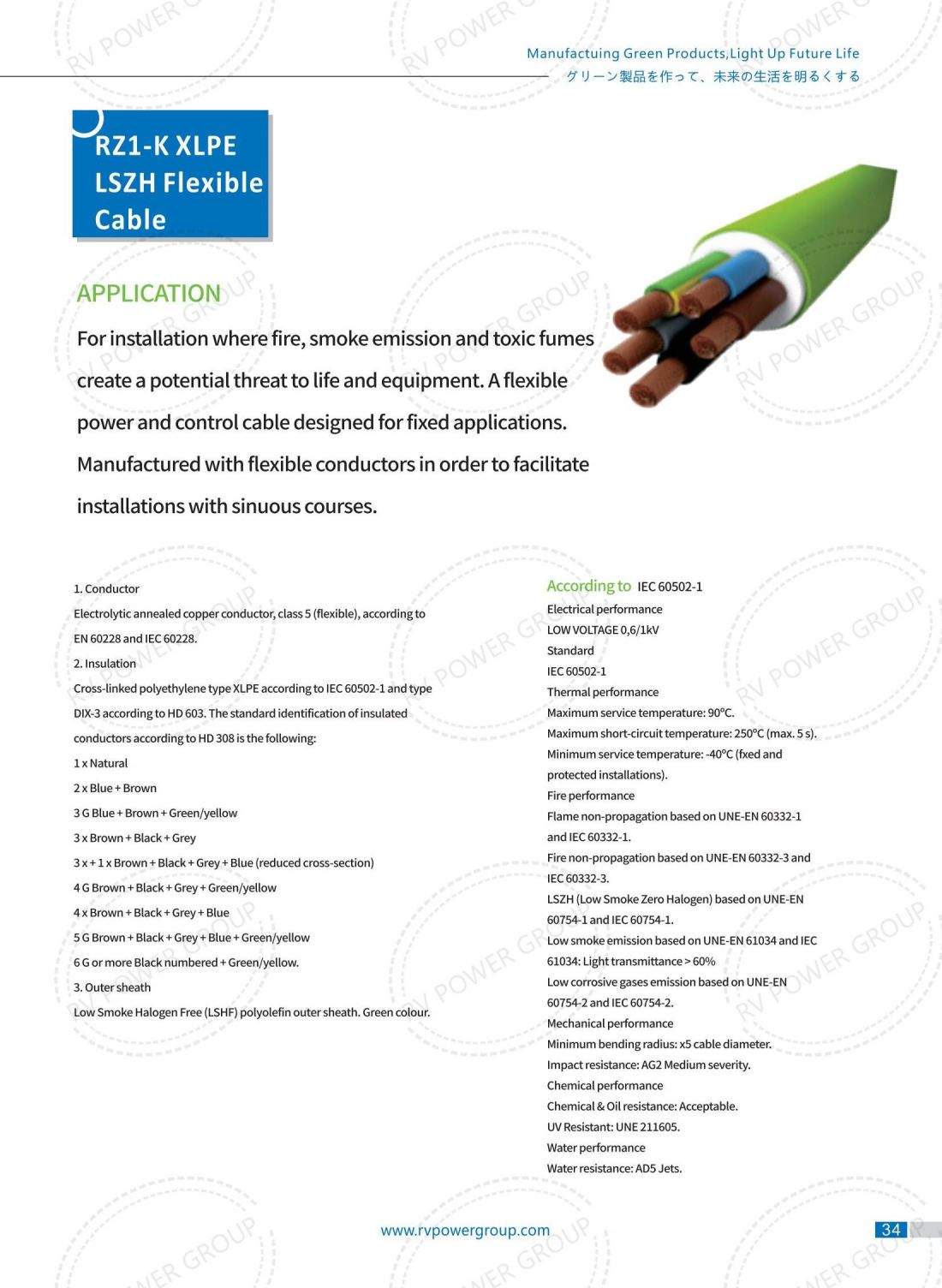

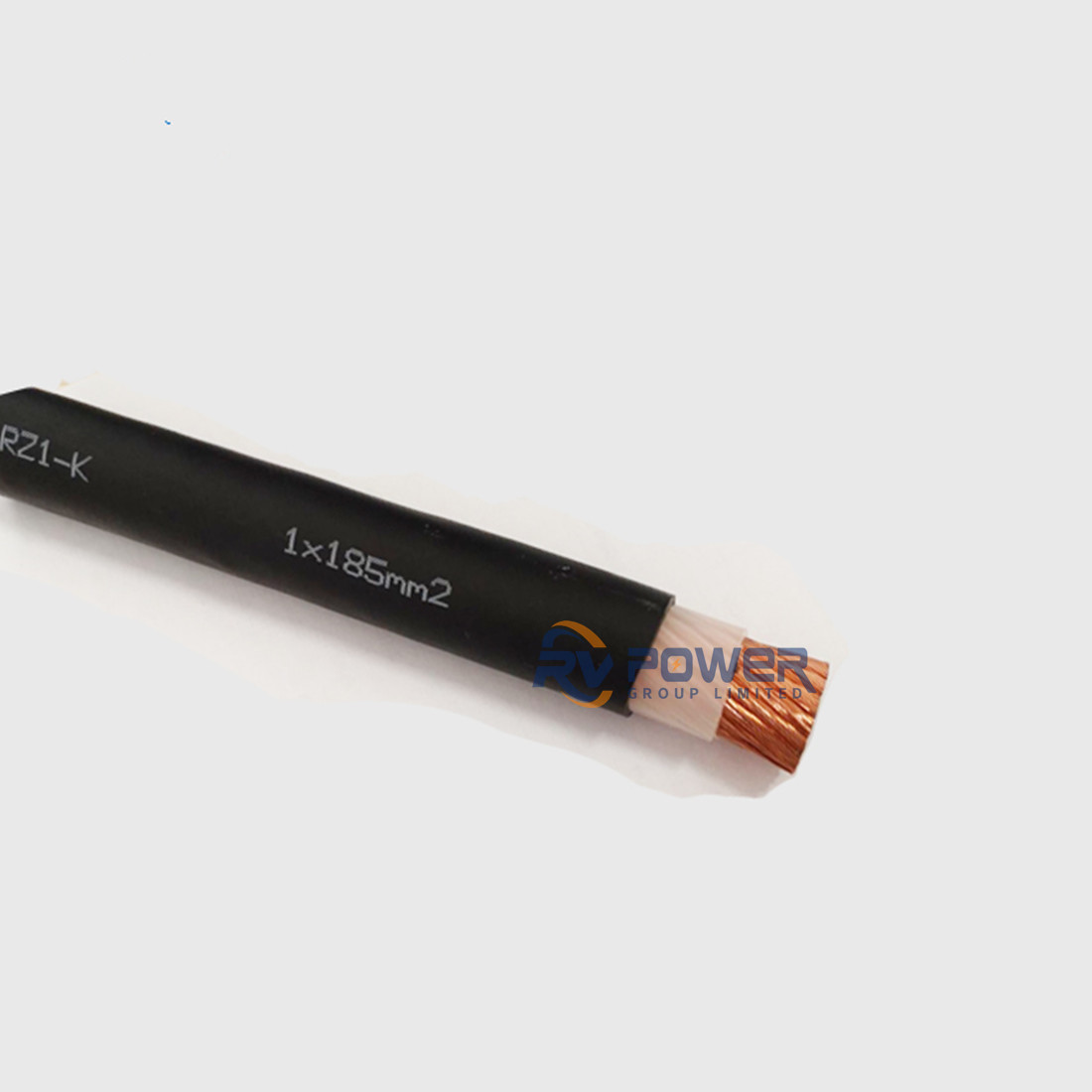

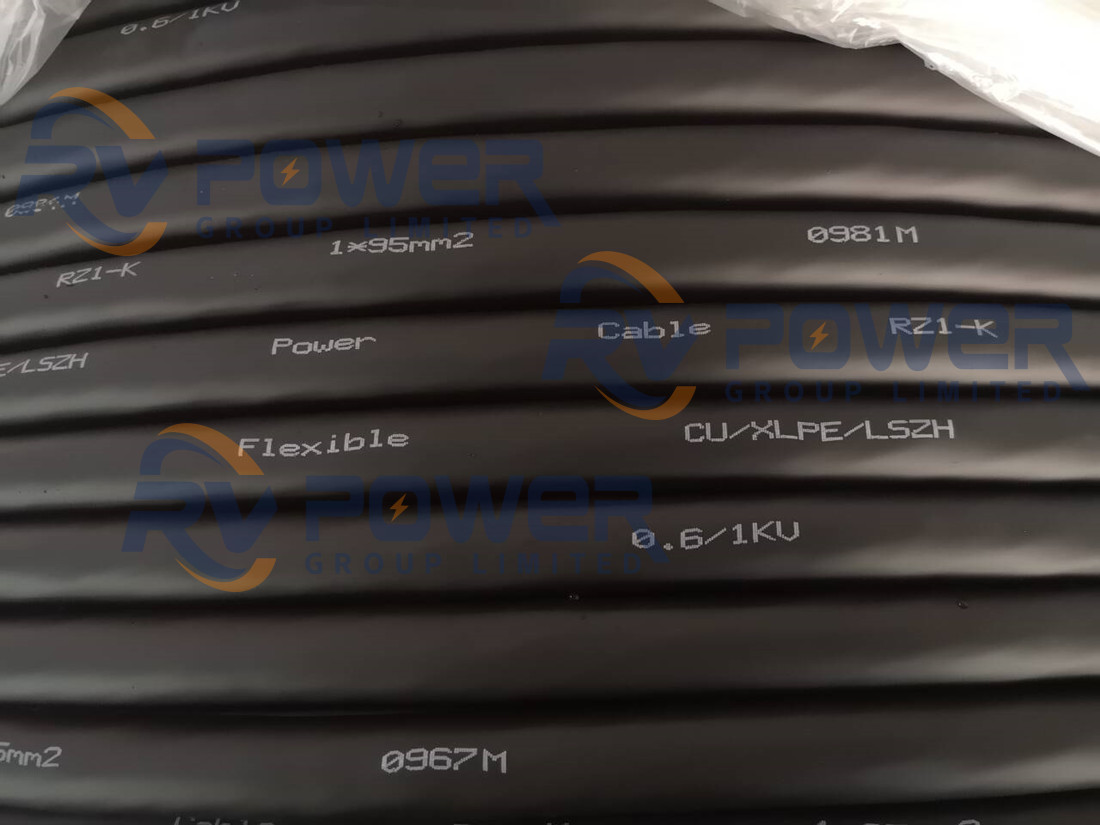

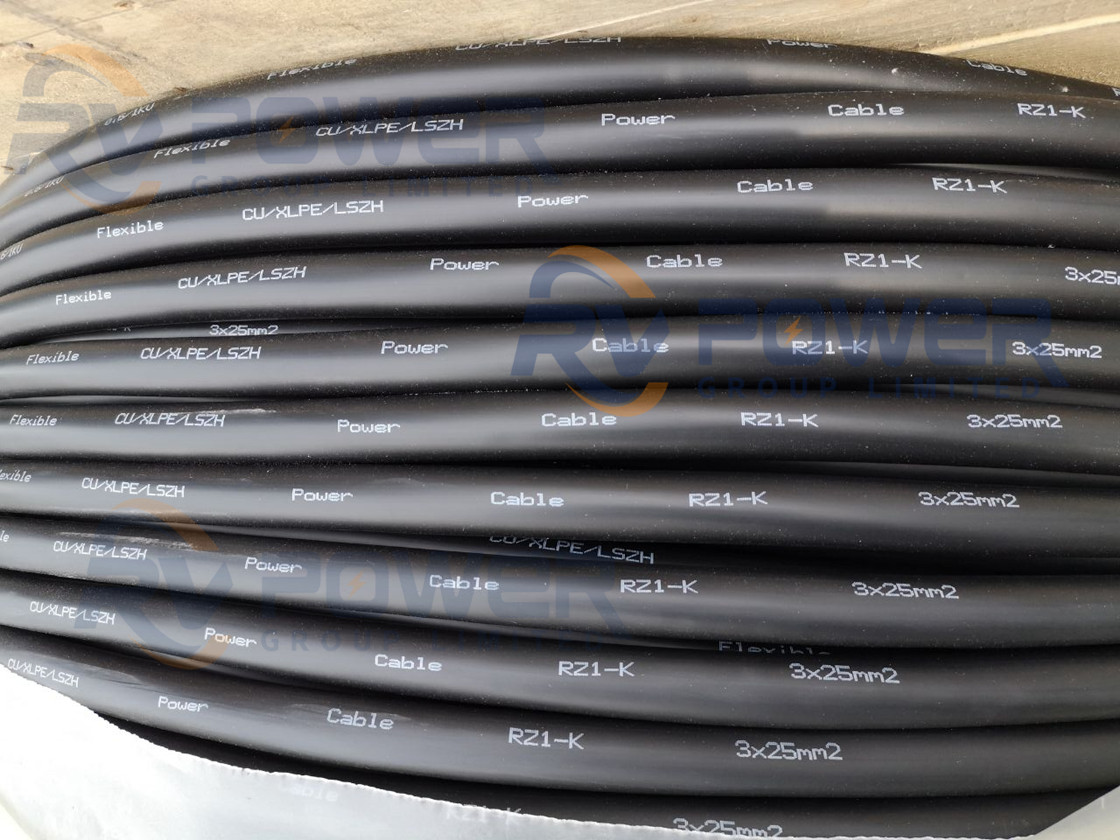

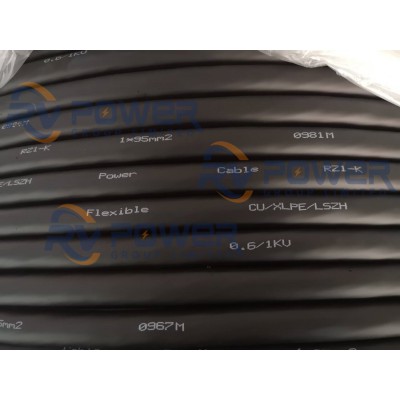

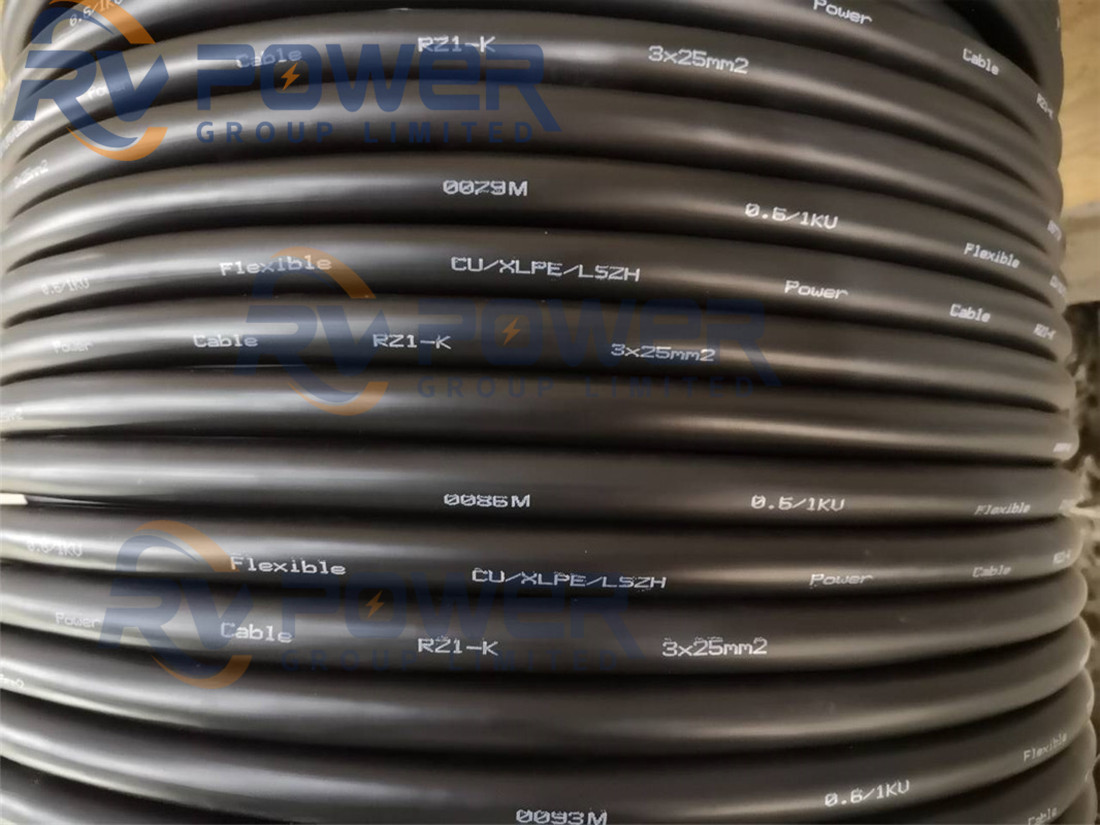

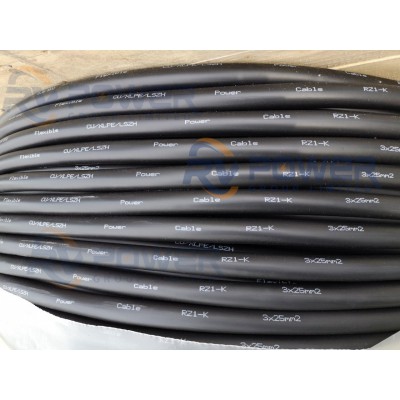

0.6/1KV TOXFREE ZH RZ1-K AS halogen free Power Cable RZ1-K


Application: For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

A flexible power and control cable designed for fixed applications. Manufactured with flexible conductors in order to facilitate installations with sinuous courses.

Standards: UNE 21123-2, 60502-1, EN 50265, IEC 60332-1

Conductor: Class 5 flexible plain copper conductor to BS EN 60228:2005 (previously BS6360)

Insulation: XLPE (Cross-Linked Polyethylene) Type DIX-3 to HD603

Sheath:LSZH (Low Smoke Zero Halogen) Polyolefin to UNE 21123

Sheath Colour: Black

Voltage Rating: 600/1000V

Temperature Rating: -15°C to +90°C Minimum

Bending Radius: 5 x overall diameter

Core Identification:
1 Core: Black
2 Cores: Blue, Brown
3 Cores including Earth Core: Blue, Brown, Green/Yellow
3 Cores: Brown, Black, Grey
4 Cores including Earth Core: Brown, Black, Grey, Green/Yellow
4 Cores: Brown, Black, Grey, Blue
5 Cores including Earth Core: Brown, Black, Grey, Green/Yellow, Blue
