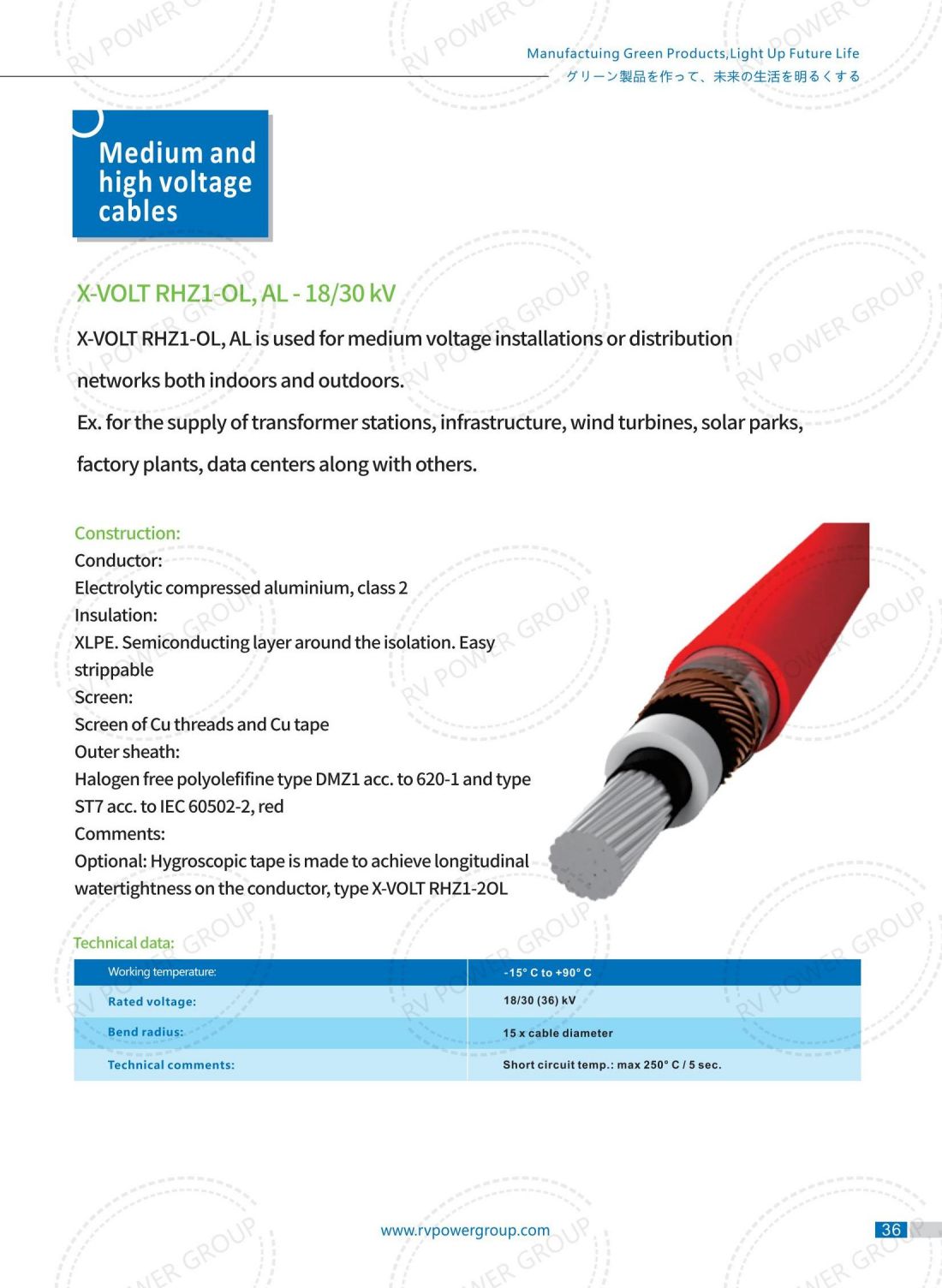

X-VOLT RHZ1-OL, AL - 18/30 kV
X-VOLT RHZ1-OL, AL - 18/30 kV
Application
X-VOLT RHZ1-OL, AL is used for medium voltage installations or distribution networks both indoors and outdoors.
Ex. for the supply of transformer stations, infrastructure, wind turbines, solar parks, factory plants, data centers along with others.

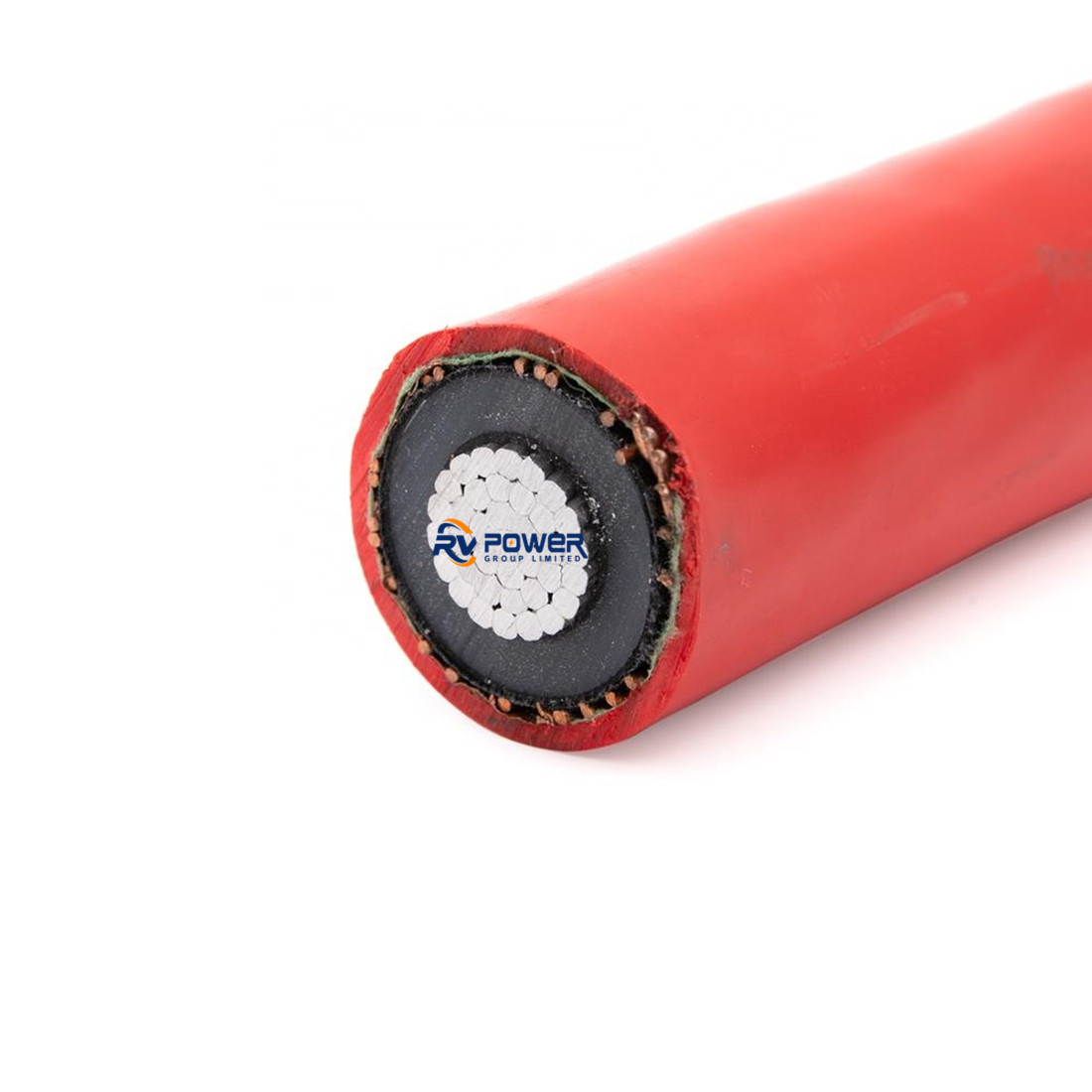

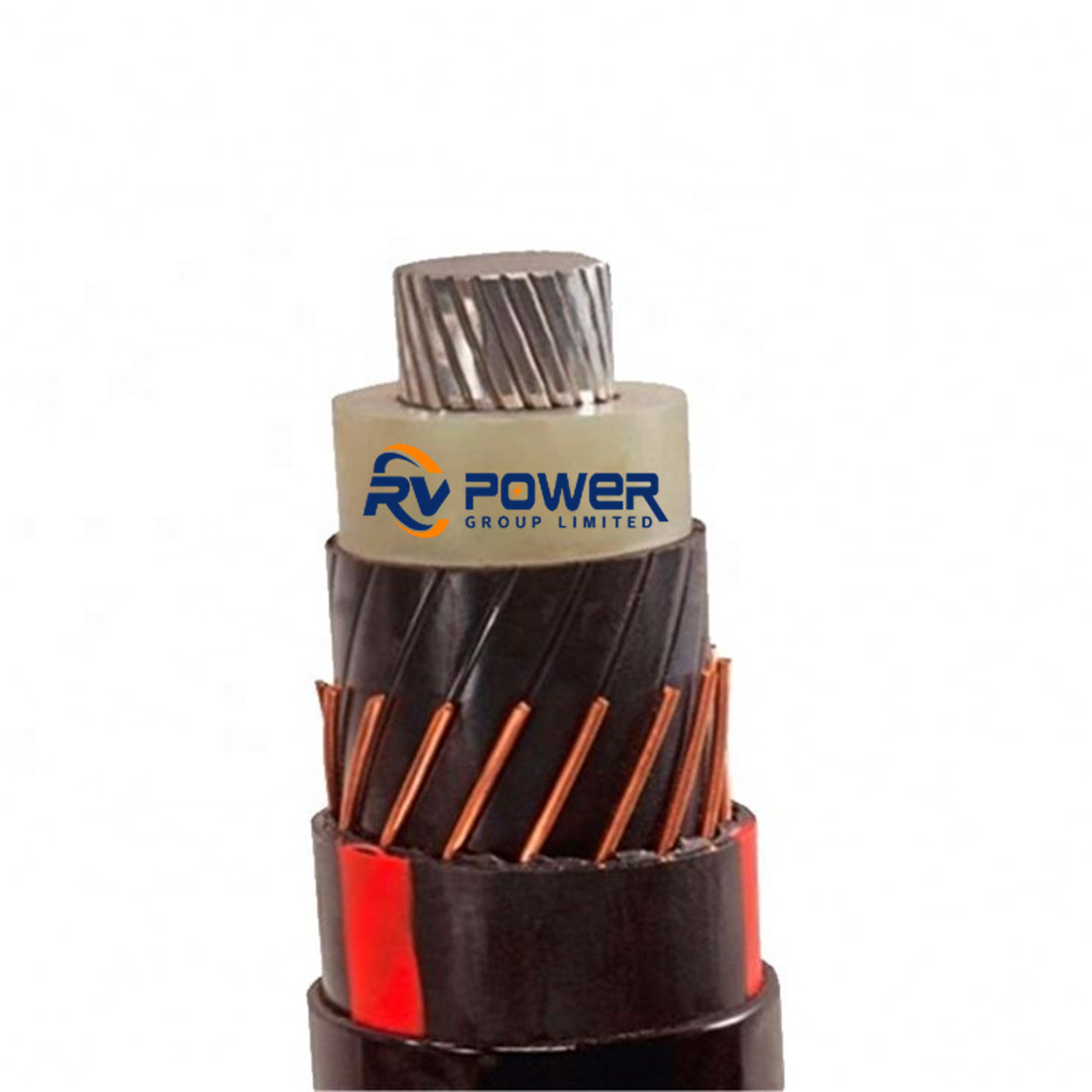

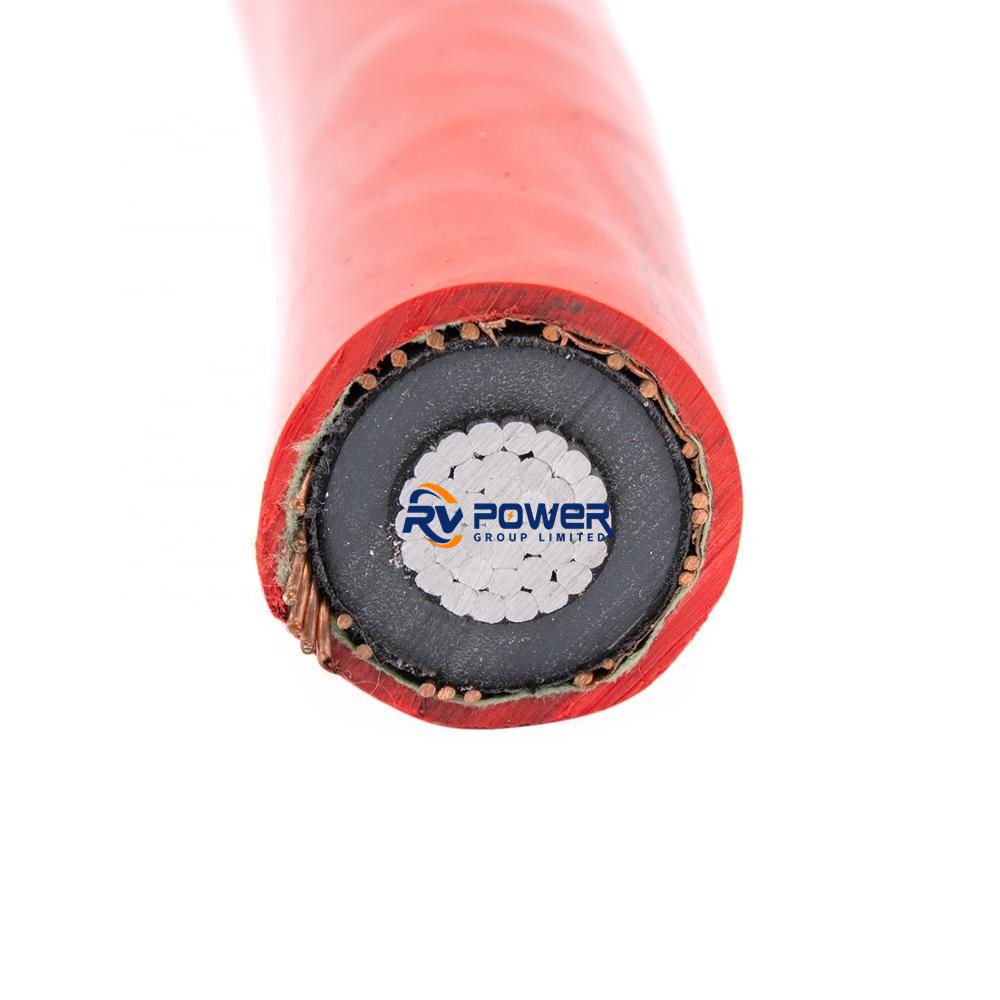

Construction
Conductor
Electrolytic compressed aluminium, class 2
Insulation
XLPE. Semiconducting layer around the isolation. Easy strippable
Screen
Screen of Cu threads and Cu tape
Outer sheath
Halogen free polyolefine type DMZ1 acc. to 620-1 and type ST7 acc. to IEC 60502-2, red
Comments
Application
X-VOLT RHZ1-OL, AL is used for medium voltage installations or distribution networks both indoors and outdoors.
Ex. for the supply of transformer stations, infrastructure, wind turbines, solar parks, factory plants, data centers along with others.
Construction
Conductor
Electrolytic compressed aluminium, class 2
Insulation
XLPE. Semiconducting layer around the isolation. Easy strippable
Screen
Screen of Cu threads and Cu tape
Outer sheath
Halogen free polyolefine type DMZ1 acc. to 620-1 and type ST7 acc. to IEC 60502-2, red
Comments
Optional: Hygroscopic tape is made to achieve longitudinal watertightness on the conductor, type X-VOLT RHZ1-2OL
