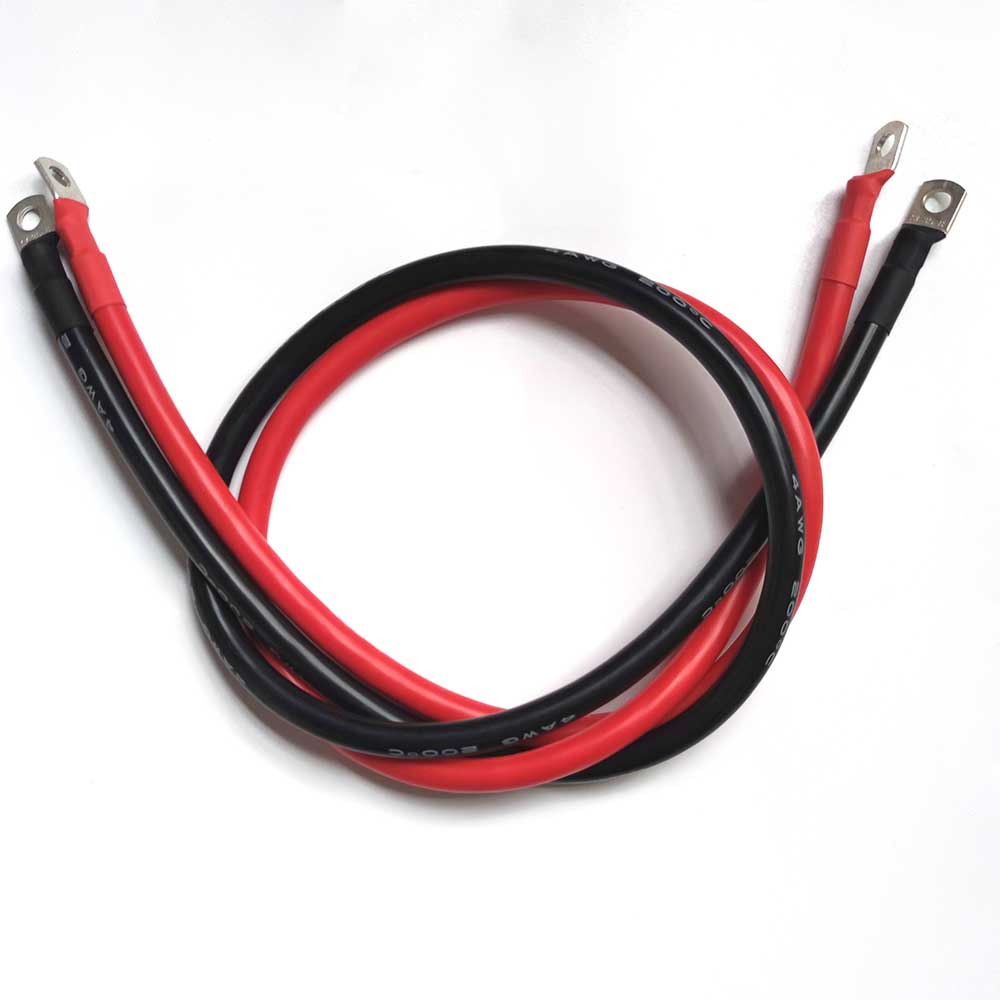

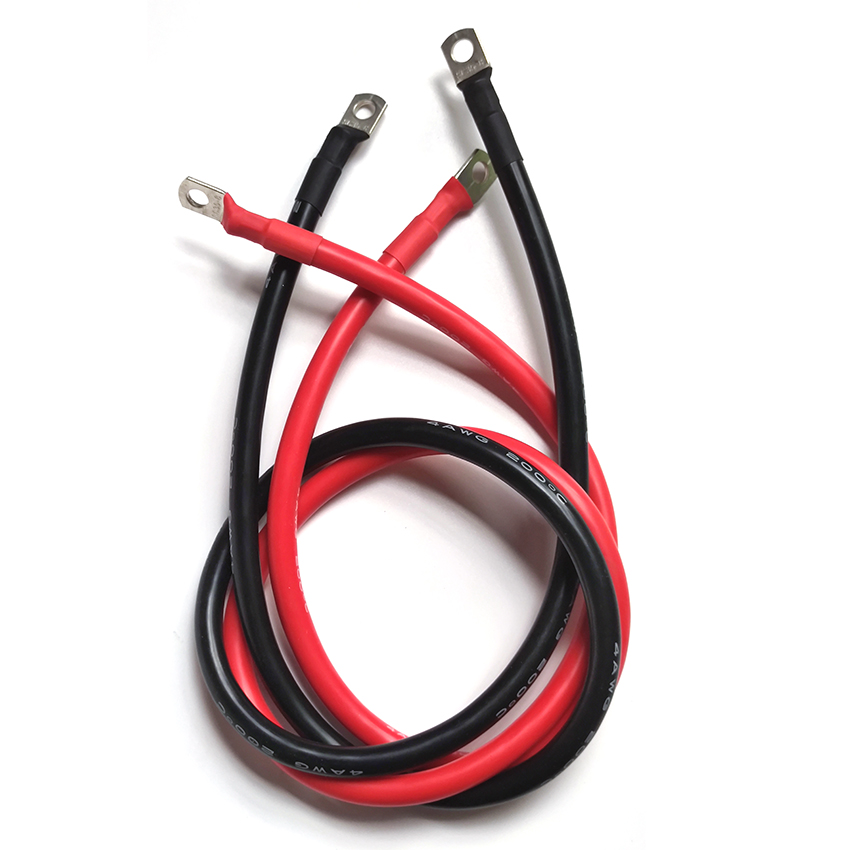

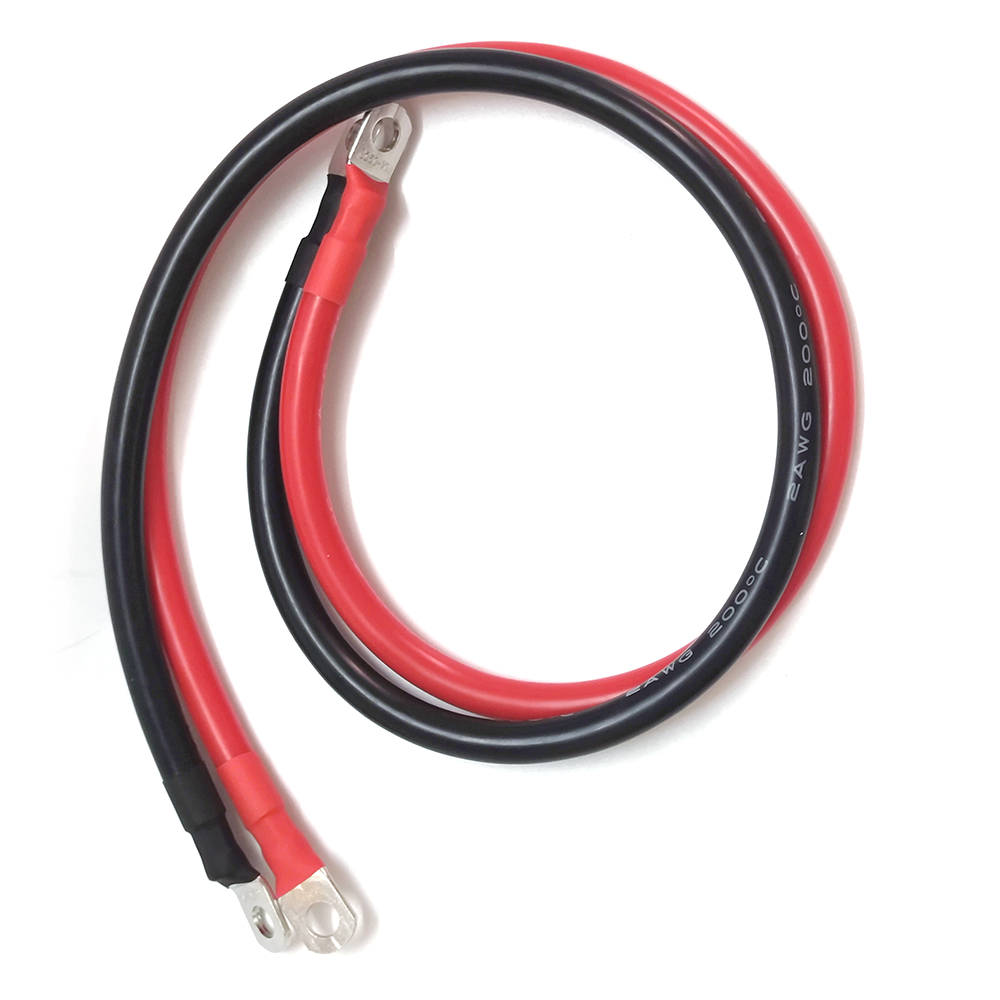

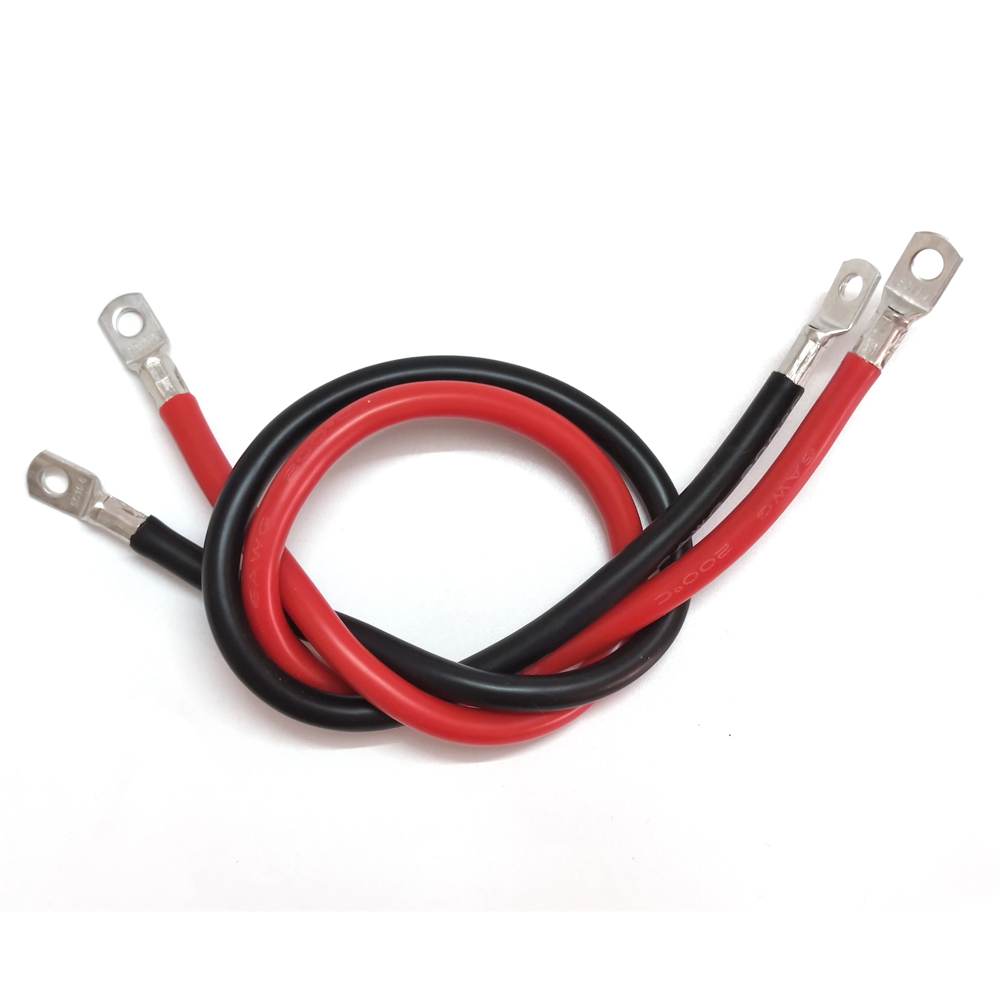

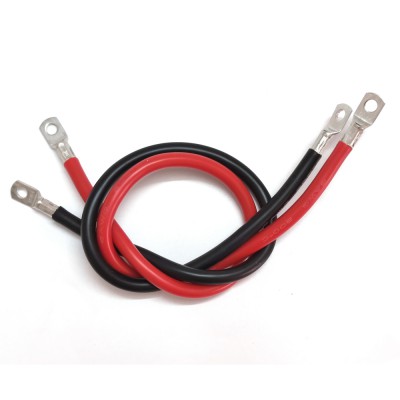

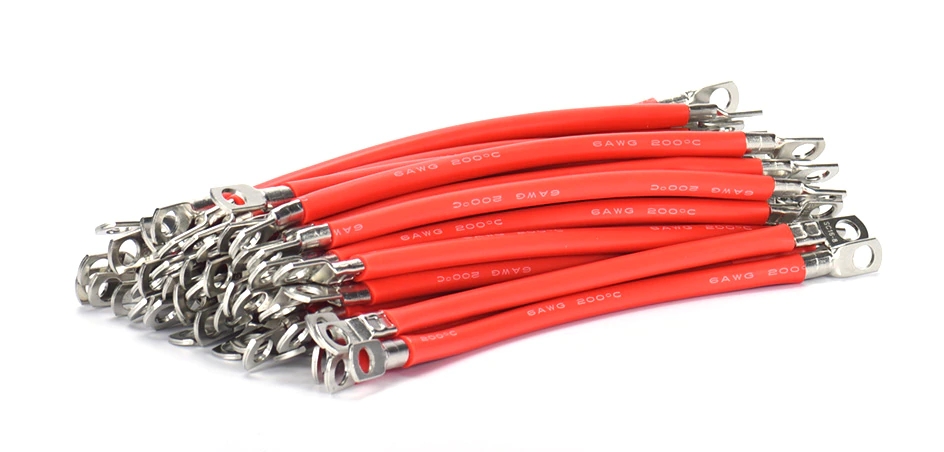

10/8/6/4 AWG Battery Cable,Flexible Silicone Wire with Lug For Battery,Inverter,Solar Stytem,Car,Motorcycle Power Connection

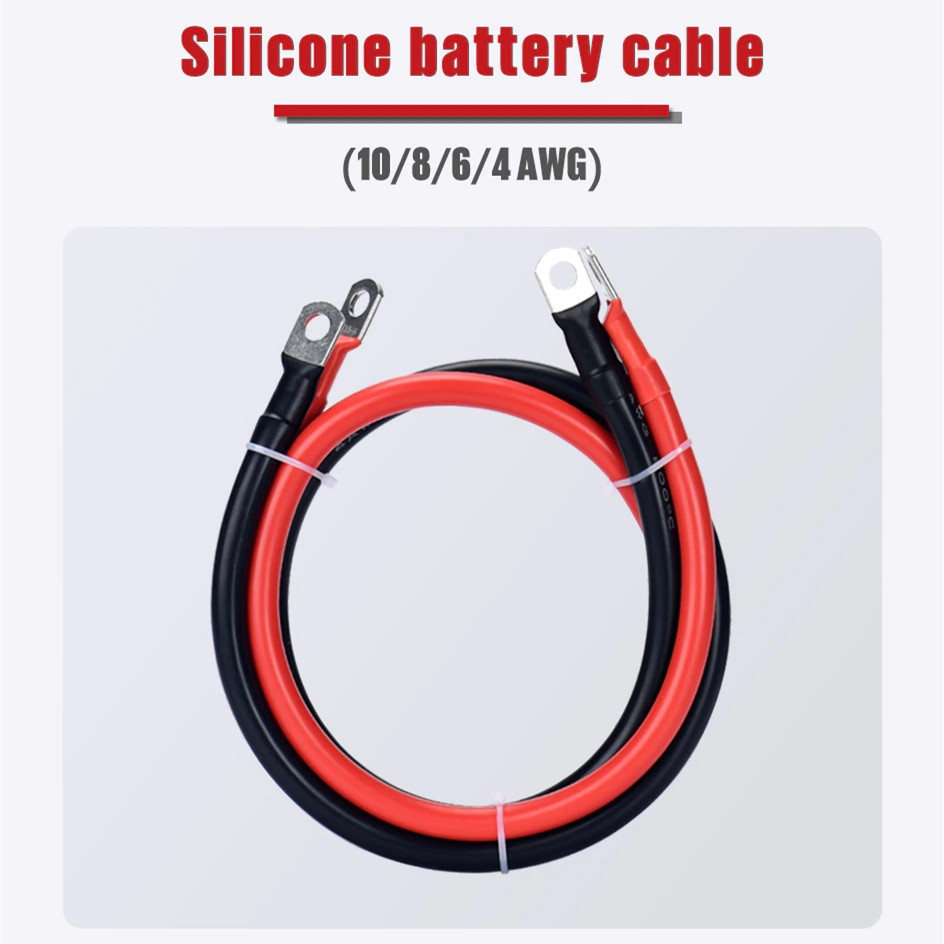

Silicone battery cable
▌INTRODUCTION

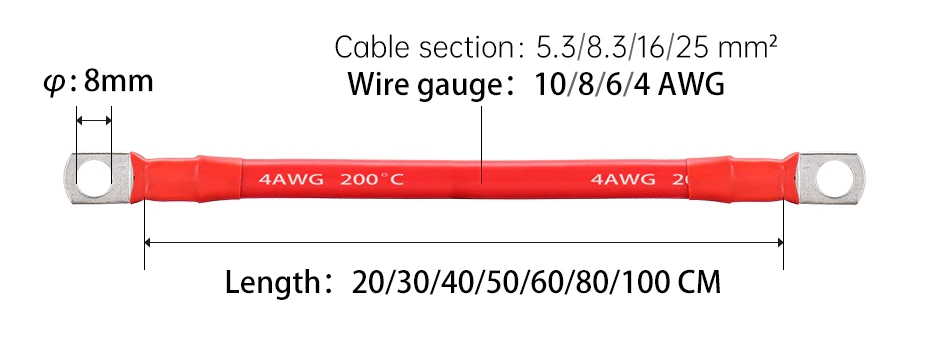

Wire gauge:10AWG(5.3mm²) / 8AWG(8.3mm²) / 6AWG(16mm²) / 4AWG(25mm²)
Conductor material:Stranded tinned copper

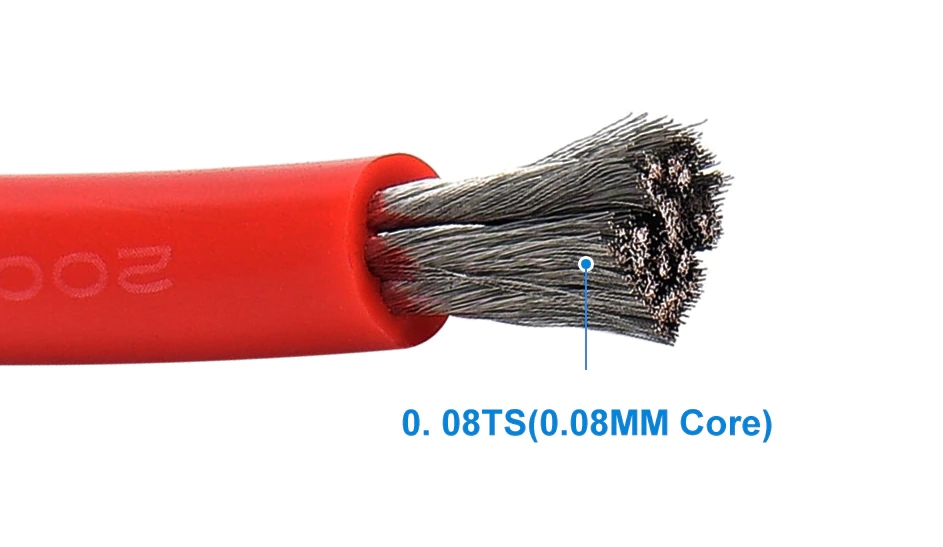

Inner-core diameter:0.08mm
Insulation material:high quality silicone
Temperature range:-60°C~+200°C
Rated voltage:600V;
Length:20/30/40/50/60/80/100 cm;
About lugs:
●material: Tinned copper;
●diameter: 8mm(default);
●installation method: Crimping;
Application:Used for connection of car battery, Lithium battery, inverter, etc.
▌TECHNICAL PARAMETERS
|
Wire Size |
Cross-section |
Outer |
Safe Current |
Max Current |
Lug hole |
|
(mm²) |
(mm) |
(A) |
(A) |
(mm) |
|
|
10 AWG |
5.26 |
5.40 |
42 |
50 |
M8 |
|
8 AWG |
8.37 |
6.00 |
67 |
80 |
M8 |
|
6 AWG |
16.0 |
8.50 |
120 |
144 |
M8 |
|
4 AWG |
25.0 |
11.0 |
200 |
240 |
M8 |
|
Section 35mm² |
35.0 |
13.0 |
280 |
336 |
M8 |
|
Section 50mm² |
50.0 |
14.0 |
400 |
480 |
M8 |
▌ADVANTAGES
High quality tinned pure copper
Using high-purity tinned copper core, stronger oxidation resistance and stable conductivity

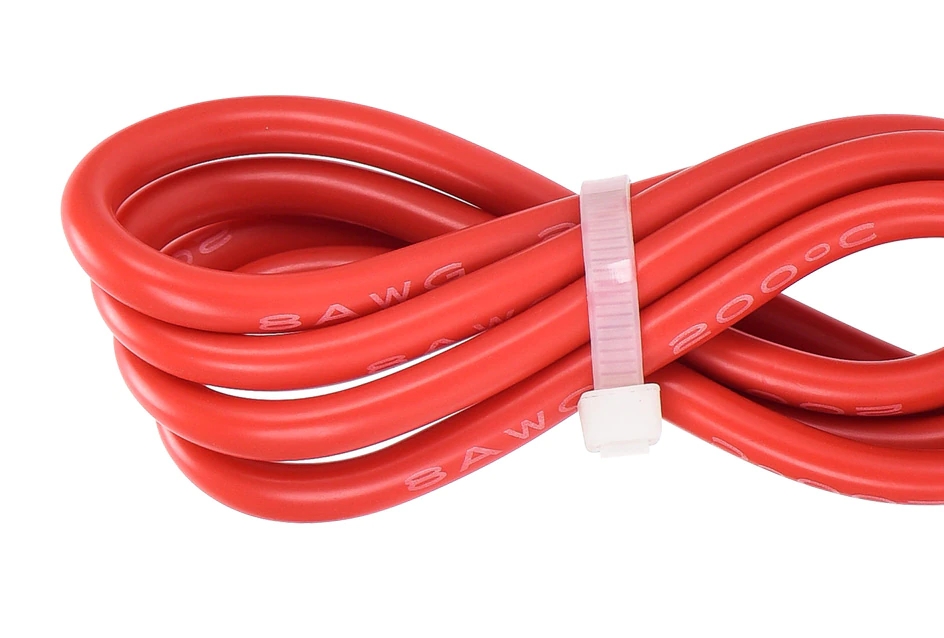

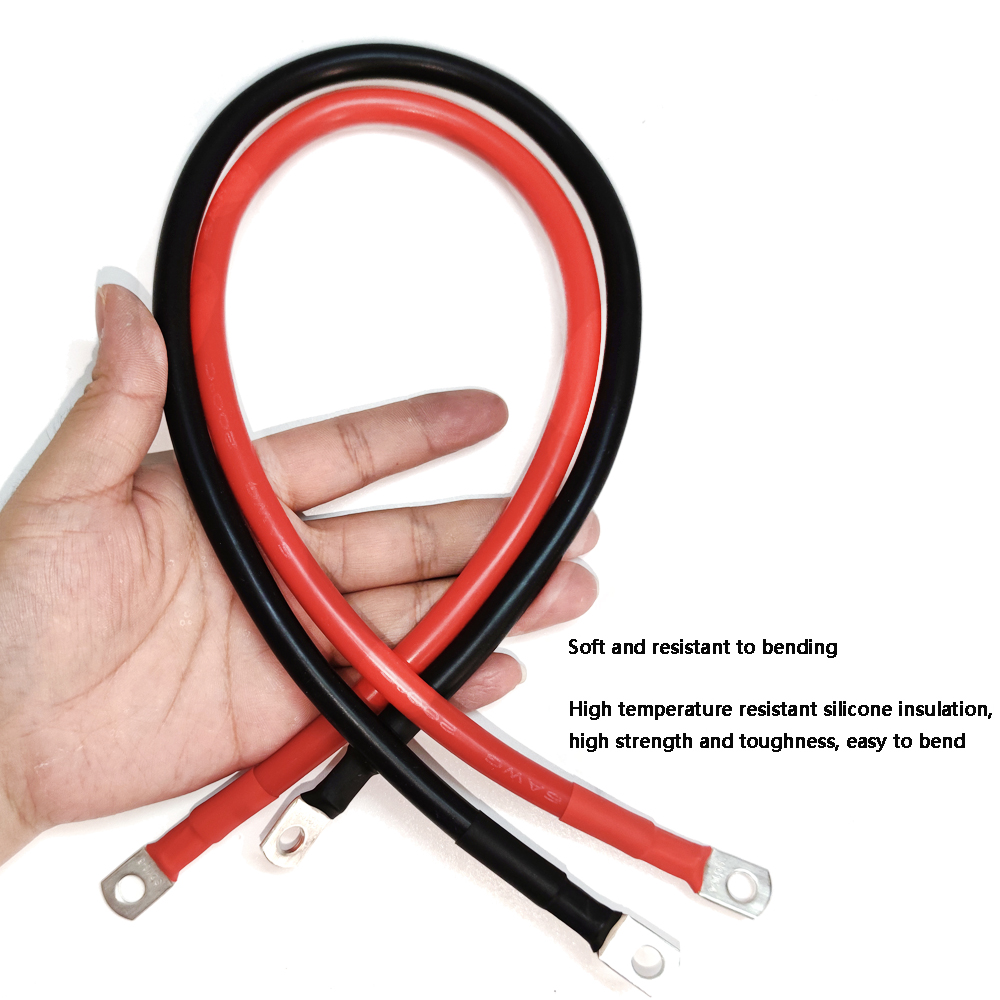

Soft and resistant to bending
High temperature resistant silicone insulation, high strength and toughness, easy to bend

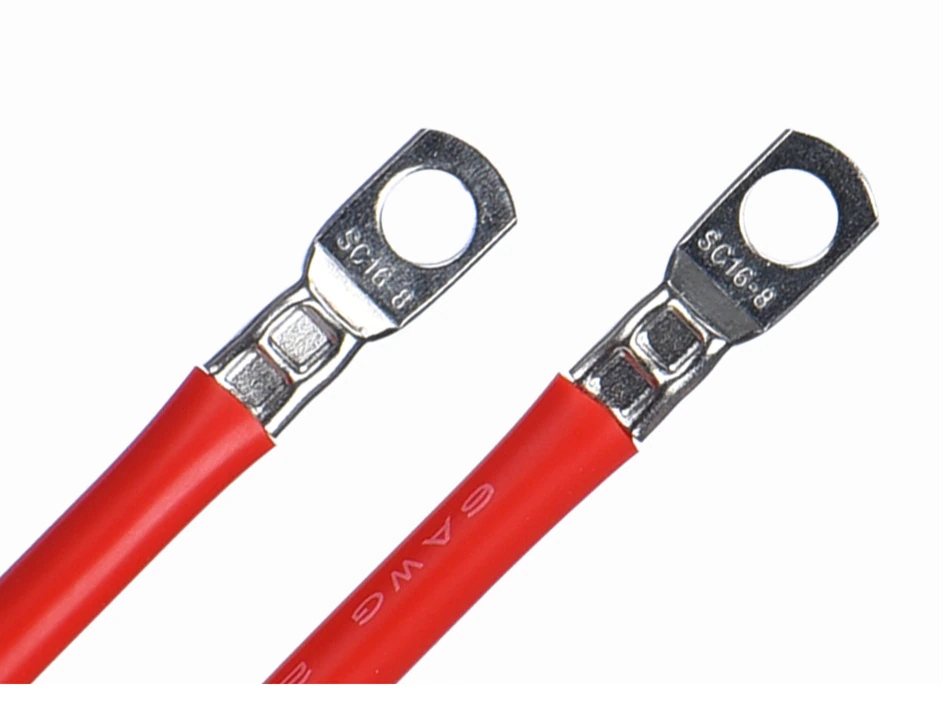

Double crimping process
Use pure copper tinned lug,Bright and clean, anti-oxidant.
Double crimping process, reliable connection
