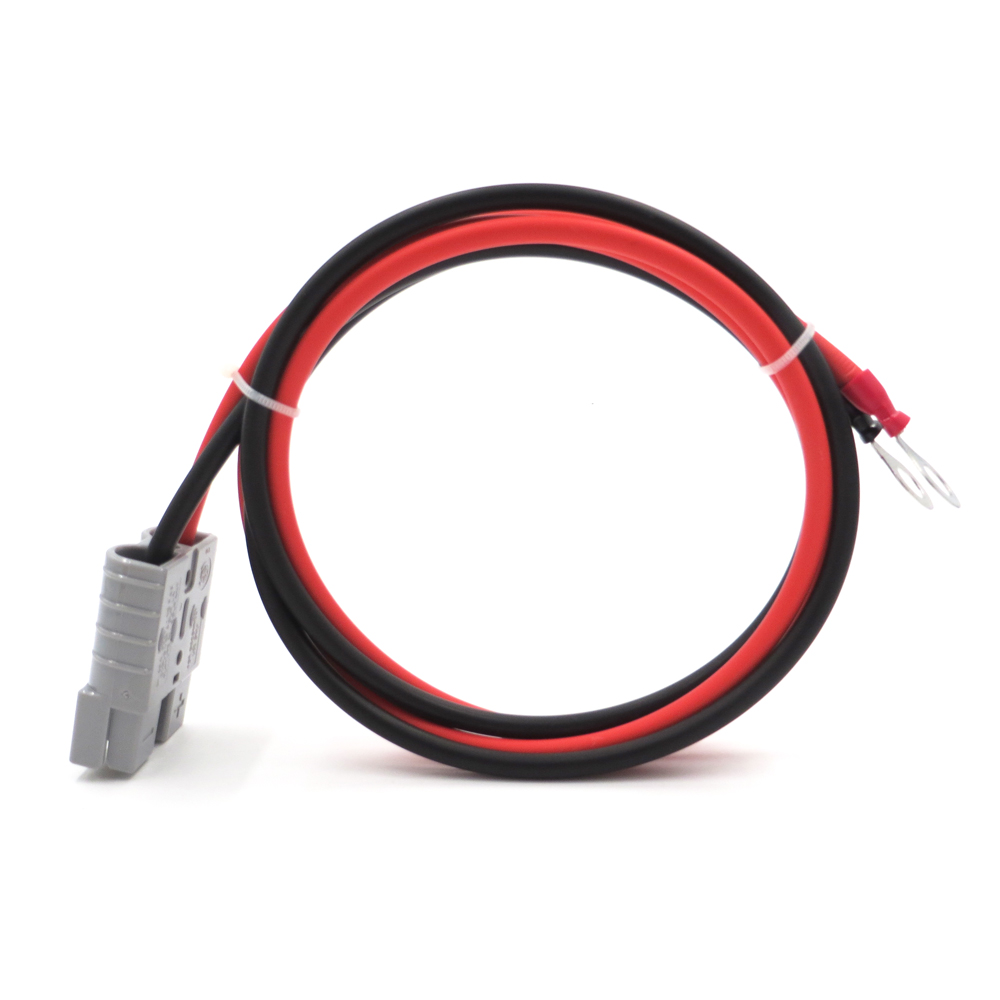

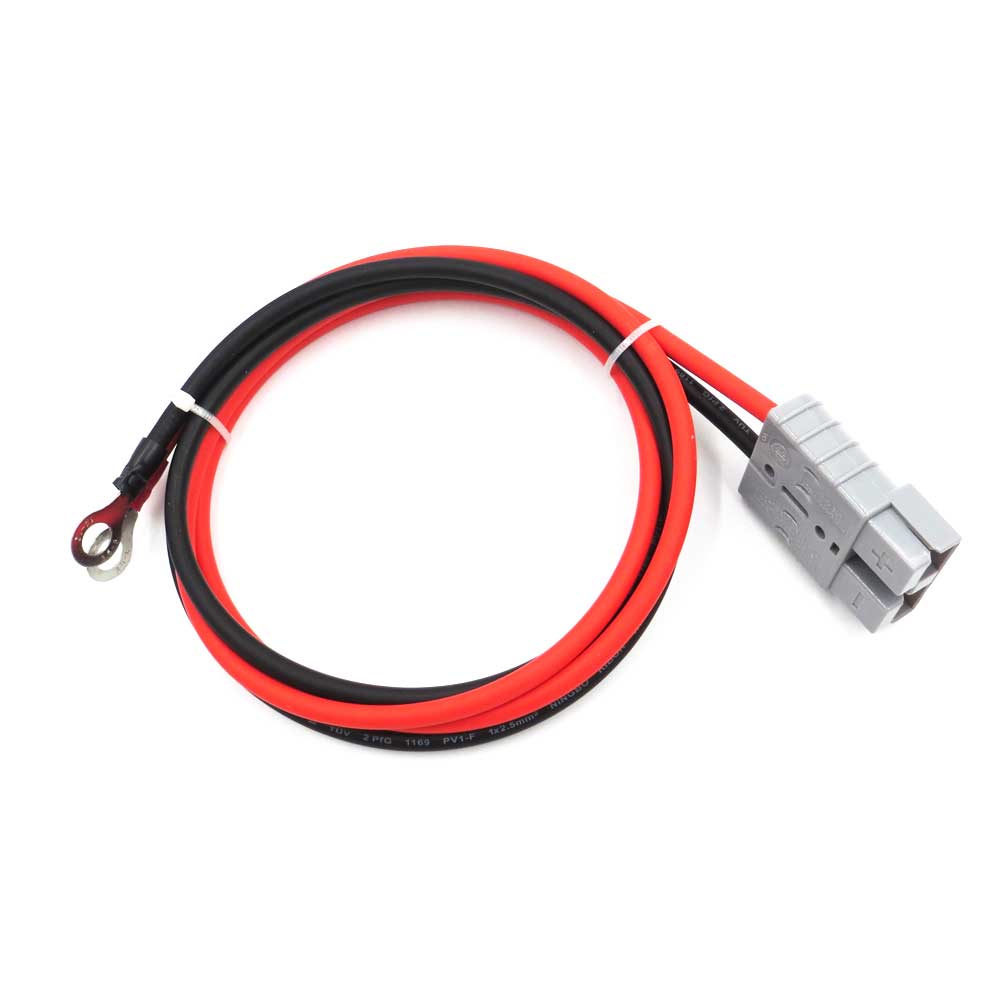

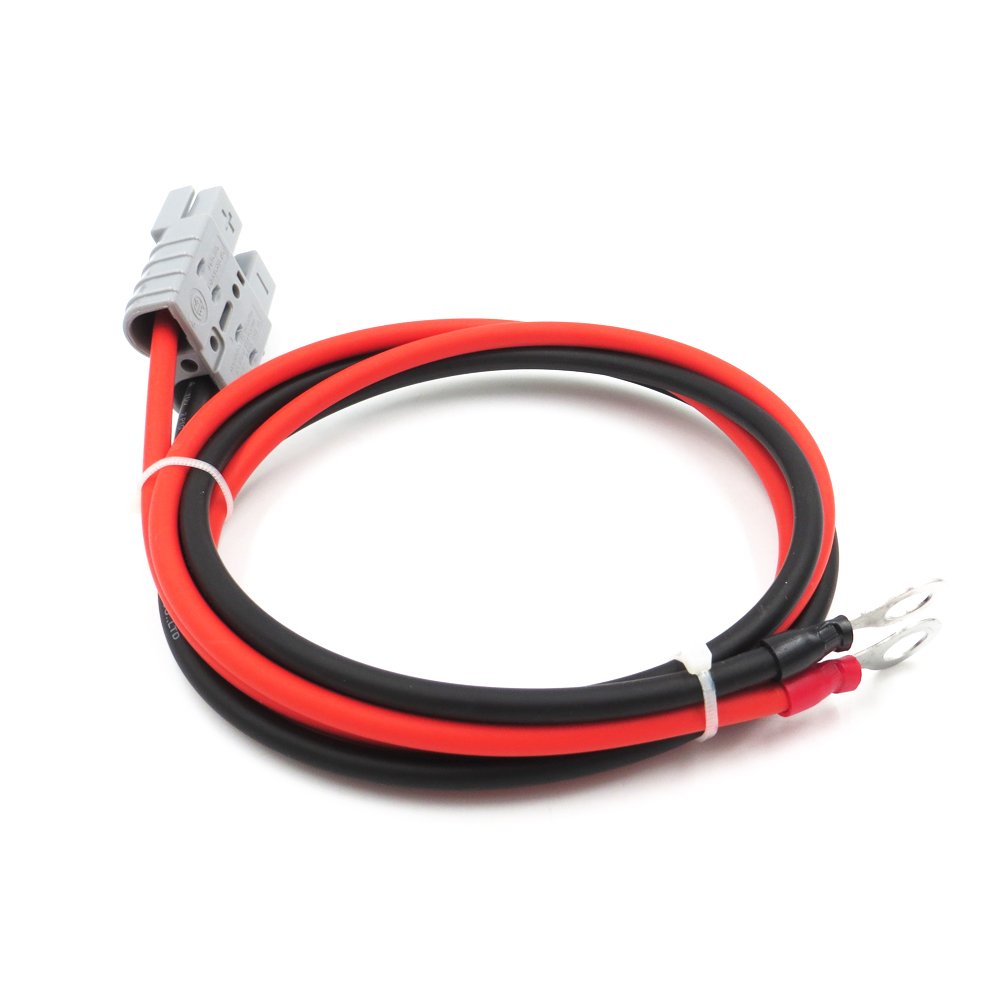

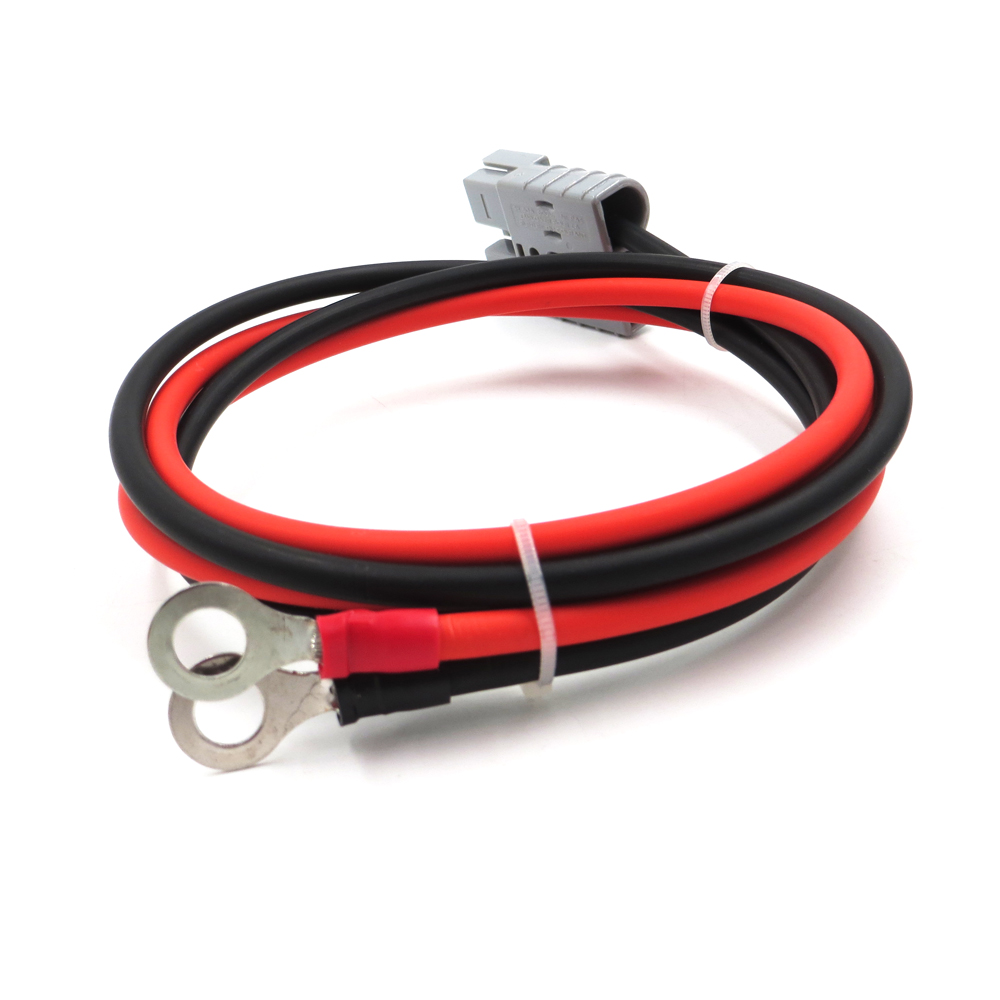

SH50 Plug 50A 600V Extend cable 0.3m 1m 2m 3m 5m 10m solar cable Connect 2.5mm2 with M8 terminal ring Battery lug bolt tab
Description and Specification

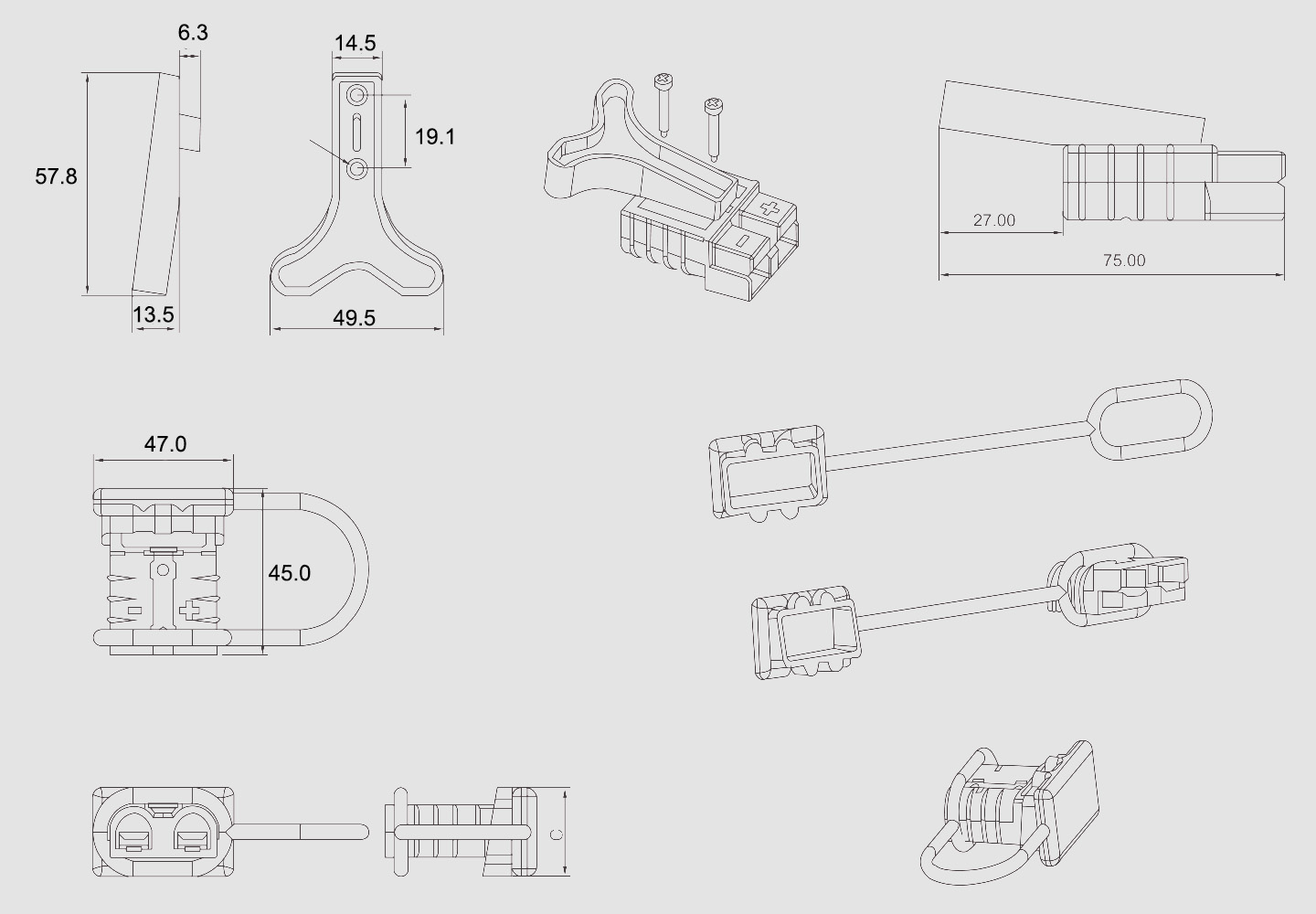

Th 50A Anderson Power Connectors, Double Pole, Battery Connector, connector handle, dust cap Special Note Economic carrier only can load 2 sets order, please kindly note. Model TH 50 Rated Voltage 600V Rated Current 50A Wiring Section 6/8/10/12AWG Contact Resistence 0.05MΩ Withstand Voltage 2200VDC Insulation Resistence 500MΩ None Load(contact/disconnect cycles) up to 10000 Under Load(hot plug 250ºC cycle@120V) 75A Average Insertion Force 53N Fire Resistence Level of Housing UL94 V-0 Working Temperature -20ºC to 105ºC Contacts material Copper Silver Plated

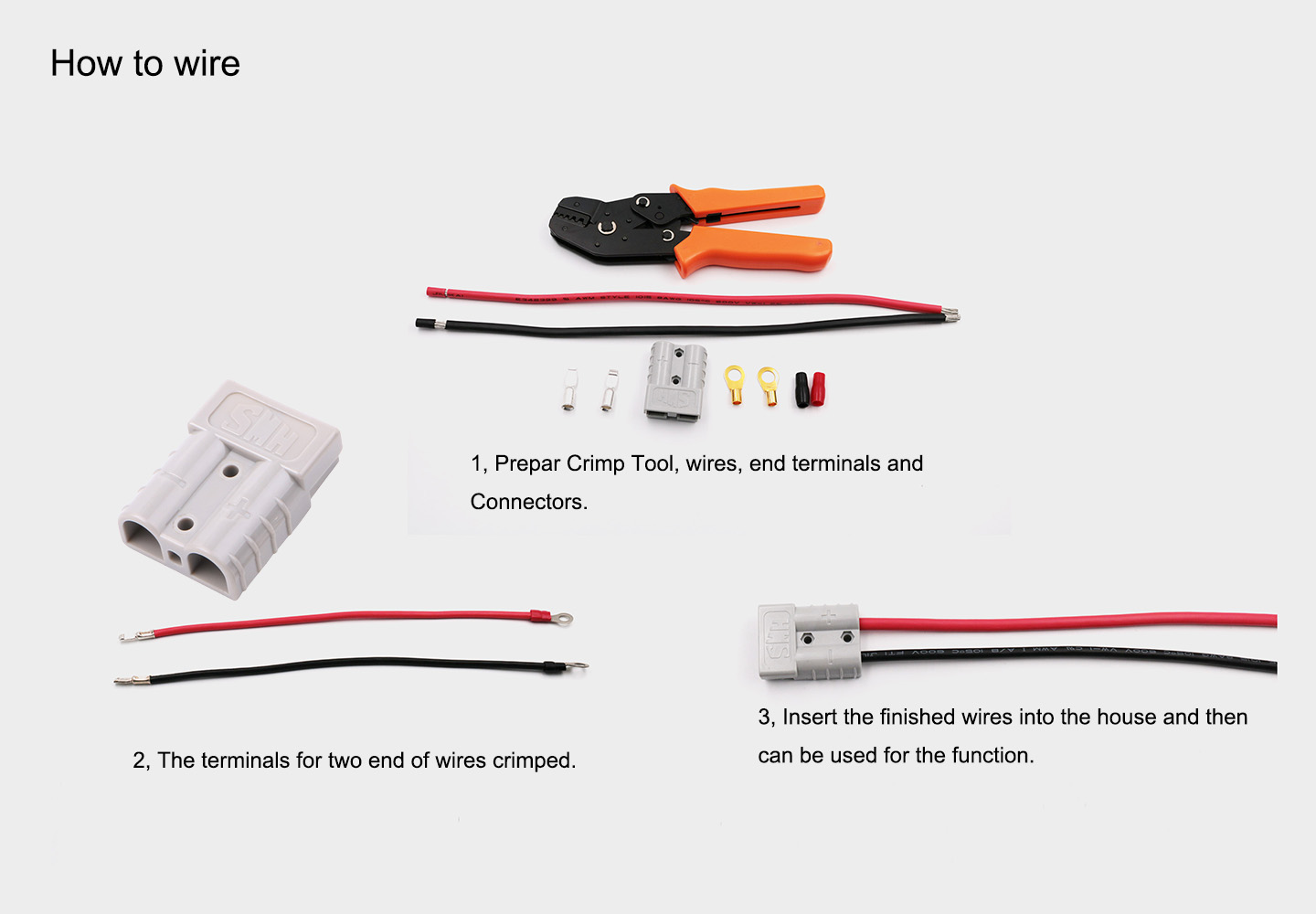

How to Wire

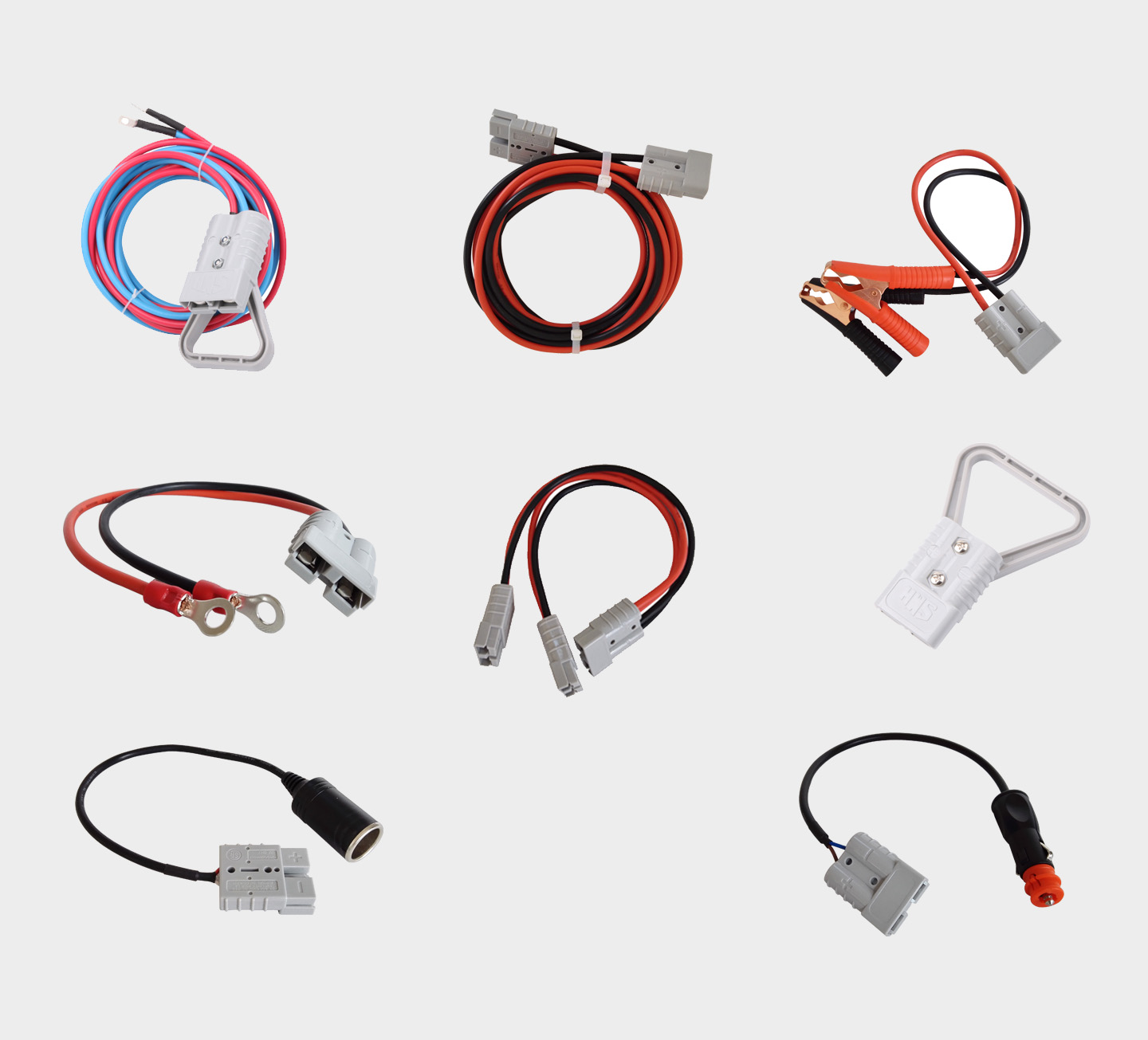

Widely Using
Solar System Auto Electric Connection Battery Chargering Connection, Forklift Electric system
INTRODUCTION
Spefication:
Cable: 2.5mm2 /14Awg Solar Cable 1000V Red and Black Color

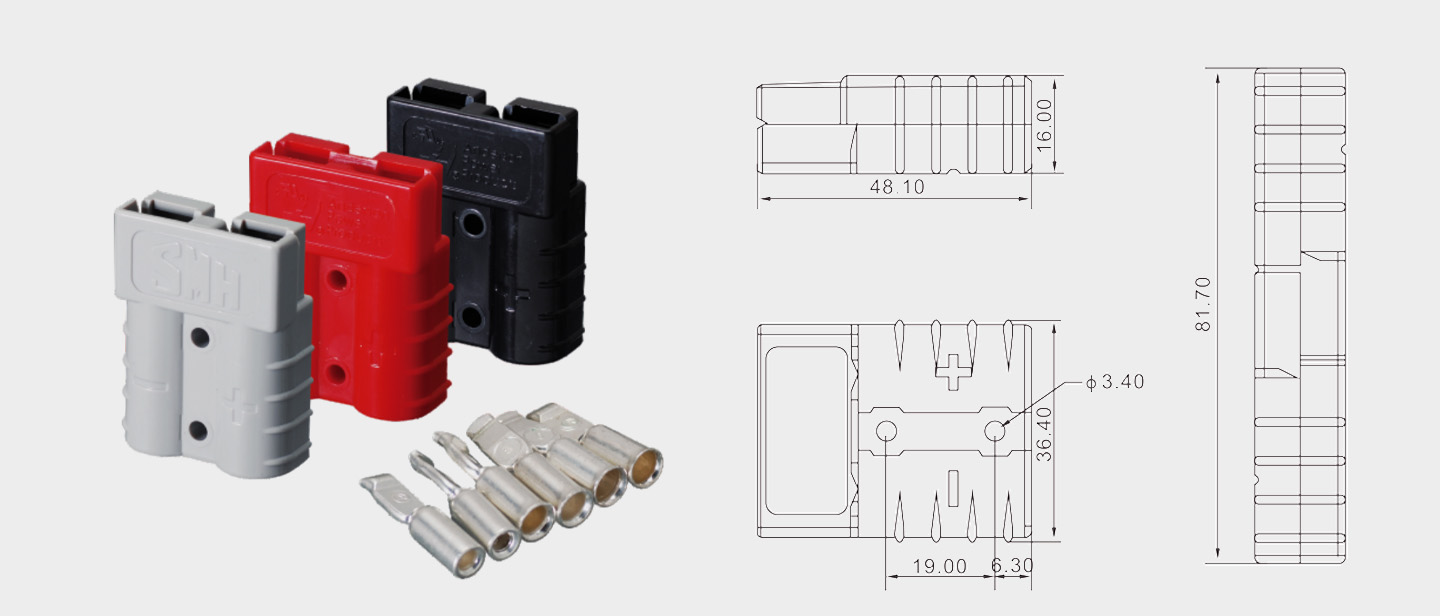

SB50 Connector: SB50 Plug 50A 600V
Terminal: M8 ring lug
Cable length: 1ft/3ft/6ft/9ft/15ft/30ft
