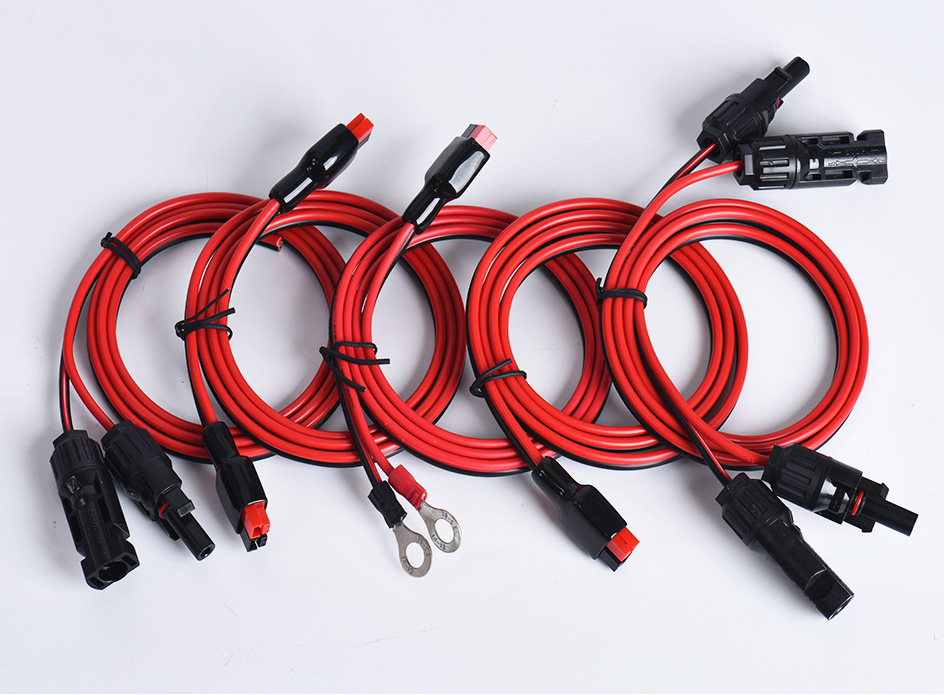

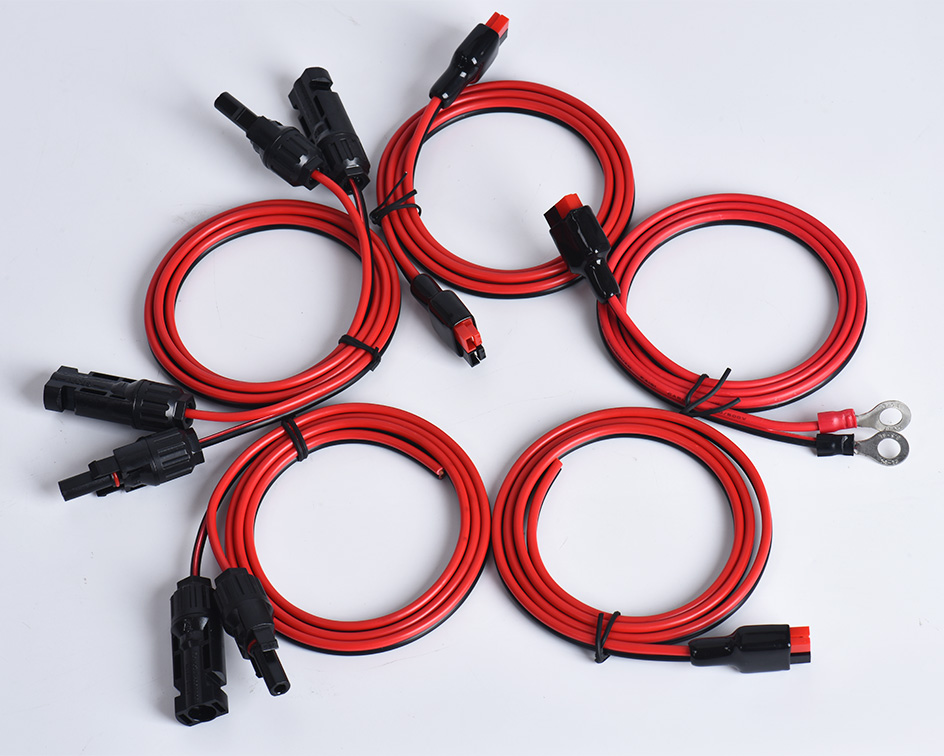

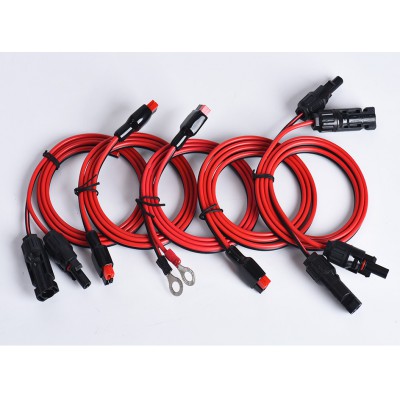

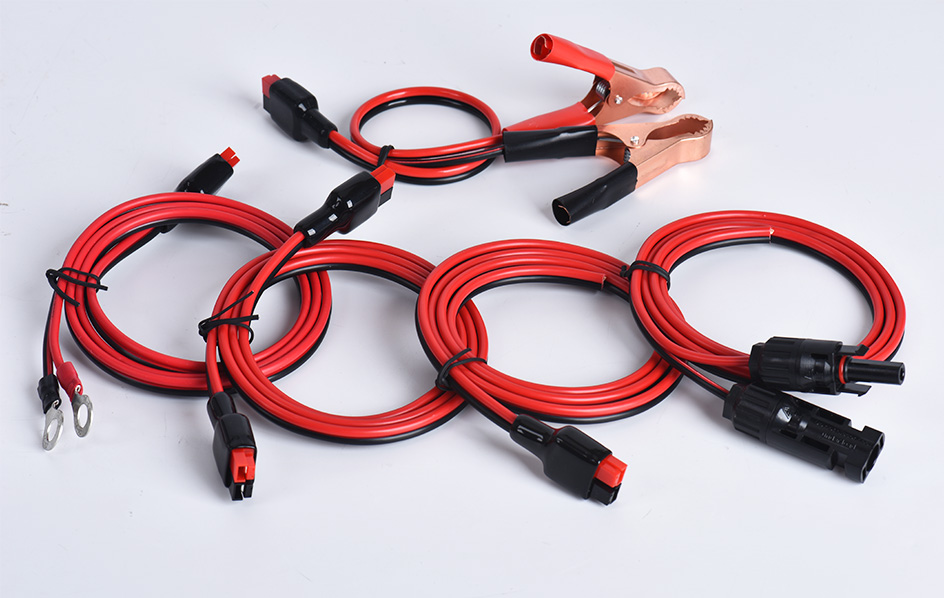

RVB Extension Cable With Connector

INTRODUCTION

Connector form : MC,AD,EY,M8

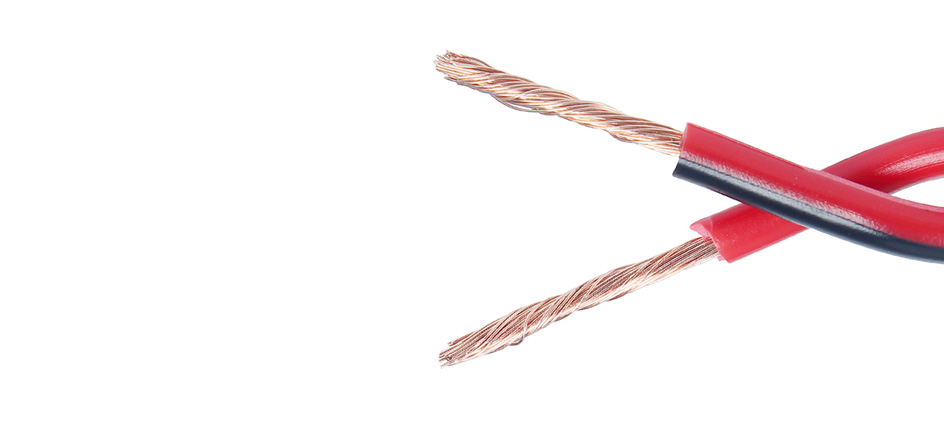

Wire type : RVB red black stranded copper wire
Wire specifications : 2×2.5mm²(2×14AWG)
length : 0.3/1/2/3/5/20M
Current: 30A
Rated voltage: 300V
Wire material: PVC
Core material :  pure copper wire

Use 2.5mm²(close to 13 AWG) 30A Red and black RVB dual wires
High-precision oxygen-free copper : High purity, oxidation resistance, low loss, high conductivity. Strong current load capability

Environmental protection PVC material : Has high mechanical strength and good corrosion resistance,high elongation, soft products, and good corrosion resistance and electrical insulation.

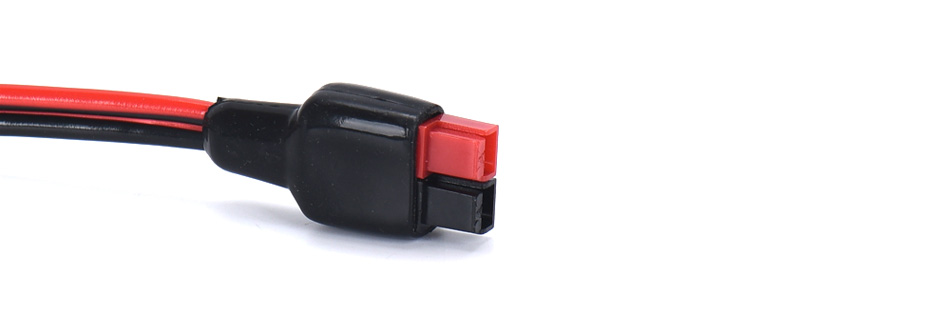

AD : Power Single-pole connector(30A)
SHELL : The shell is made of PCu94v0 flame retardant material and stainless steel shrapnel design

TERMINAL : The terminal is made of copper silver-plated material, which has better conductivity.

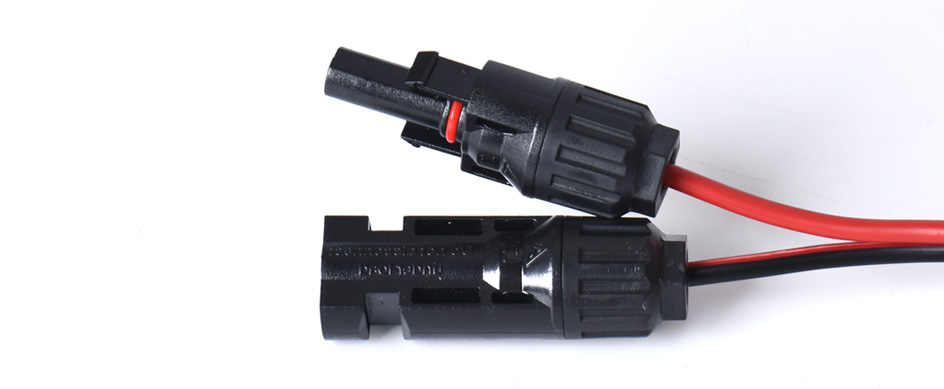

MC PLUG(30A)
HOUSING : PC Flame retardant;High heat resistance, wear resistance, pollution resistance, strong toughness
CORE : copper, tin plated;Open core, real material, wear-resistant, corrosion-resistant, prevent rust
High-strength waterproof ring : Product uses high-strength waterproof ring;Dust-proof, waterproof and IP67 protection grade
Stable self-locking structure : The joints are connected by pressing and restraining. The male and female heads have self-locking mechanisms to open and close freely.
Insulation and waterproof : Built-in high-quality locking head, exquisite and firm, sealed and insulated, which plays a role of guiding and preventing electric shock

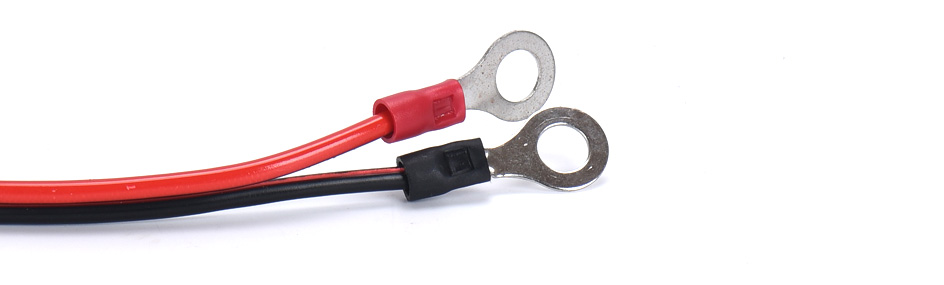

M8 Lug
TERMINAL : 99. 95% pure copper.
The purity of the product directly affects the conductive properties, contact resistance, etc.

Surface treatment : tin plating (matt, processed with imported products.) Can be crimped or welded
Features : Welding treatment in the gap. After the products without welding are crimped, the gap is easy to spread, so that the crimping tension is not enough or the copper wire emerges from the gap.

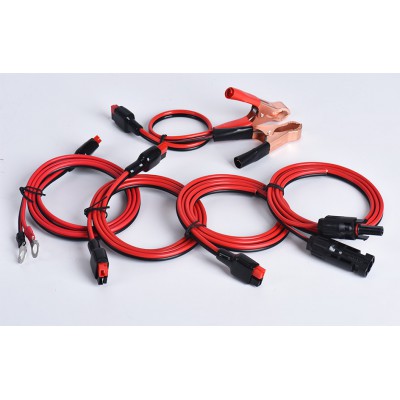

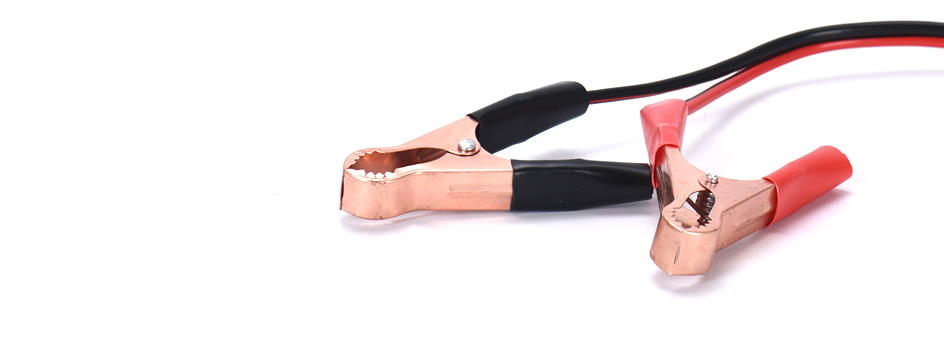

EY:Battery clip
METAL : iron-nickel alloy electroplated copper, thick steel spring in the middle, large clamping force.
Surface treatment : polished electroplated copper, bright and easy to fade.
Features :
1.The thicker material of iron-nickel alloy is used, and the copper is electroplated after polishing. When the toughness reaches the standard, it guarantees its good conductivity.
2. Bold steel spring is adopted, which has large clamping force and tight contact, and it is not easy to deform for a long time.
3.Appearance is PVC sheath.

PRECAUTIONS

Dear buyer, the following statement is very important,so please read it carefully.

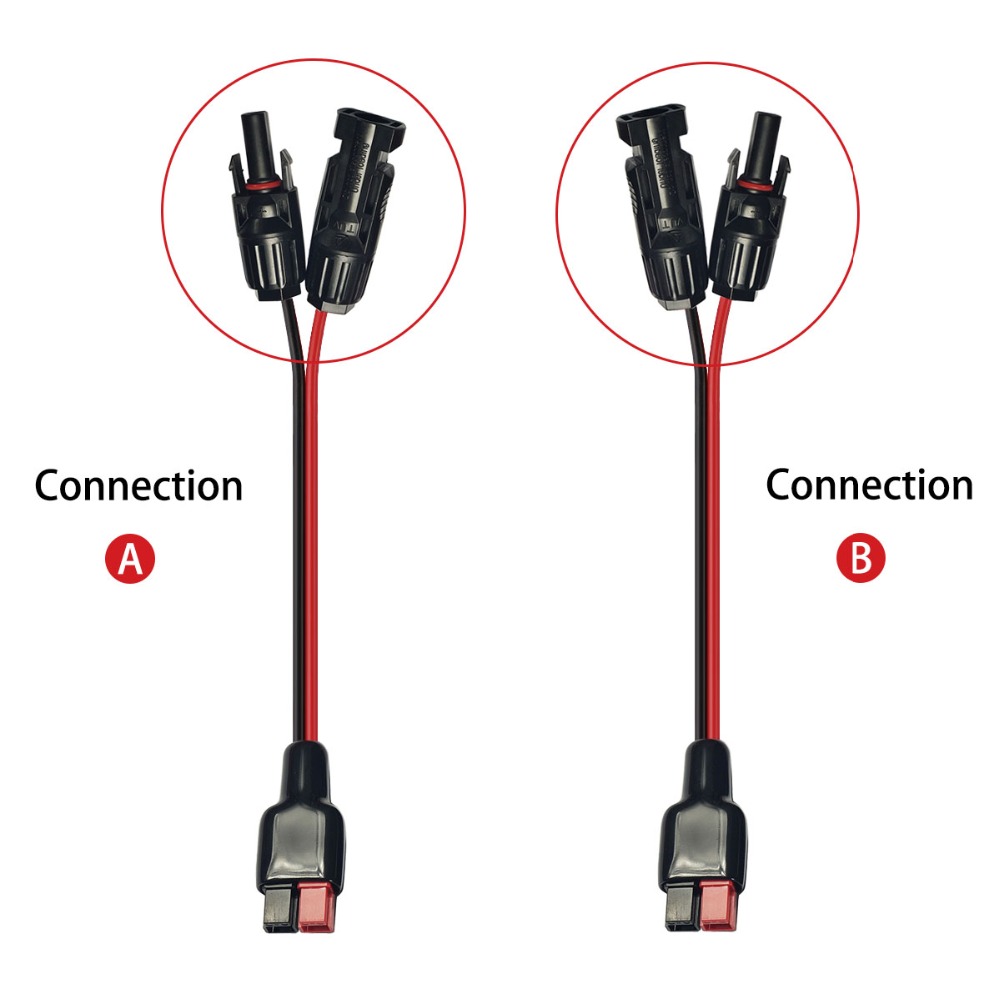

When you buy "B4(MC + AD)", please pay attention to your actual needs. We default to send type-A connection, if you need type-B, please leave a message, thank you
