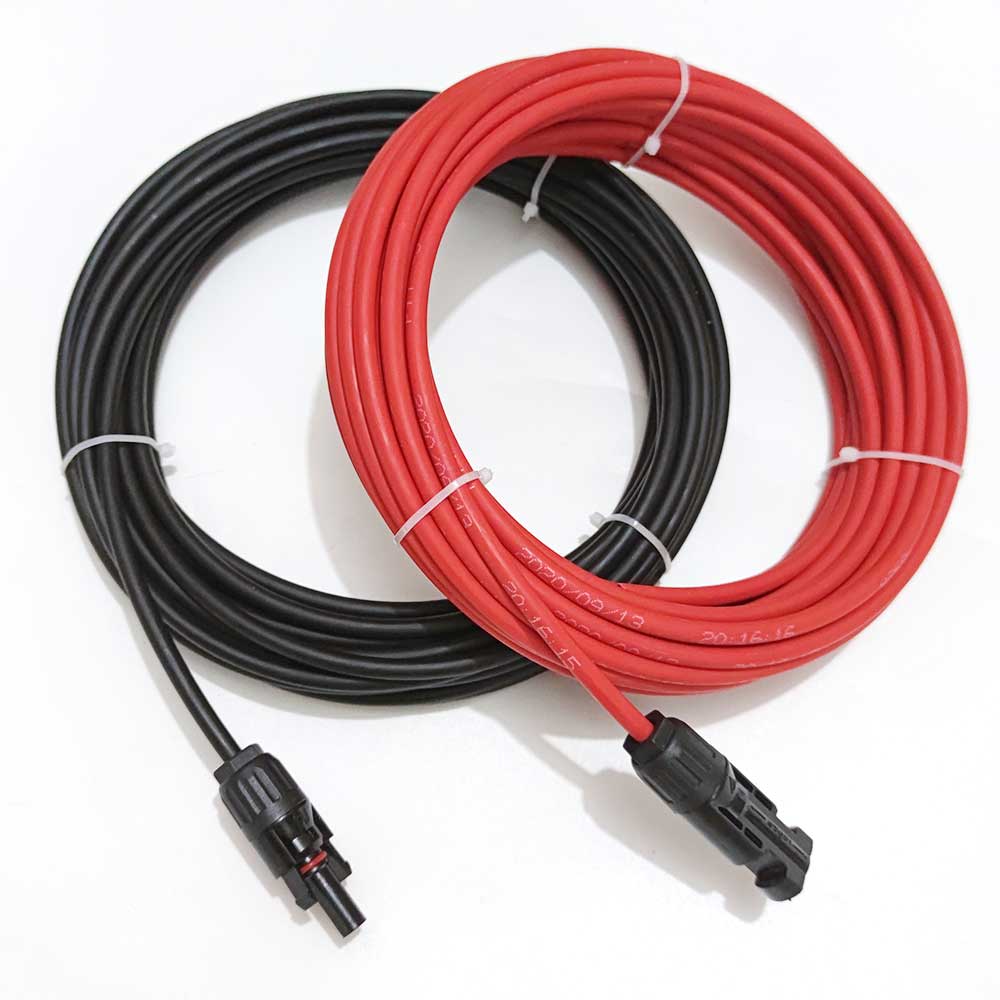

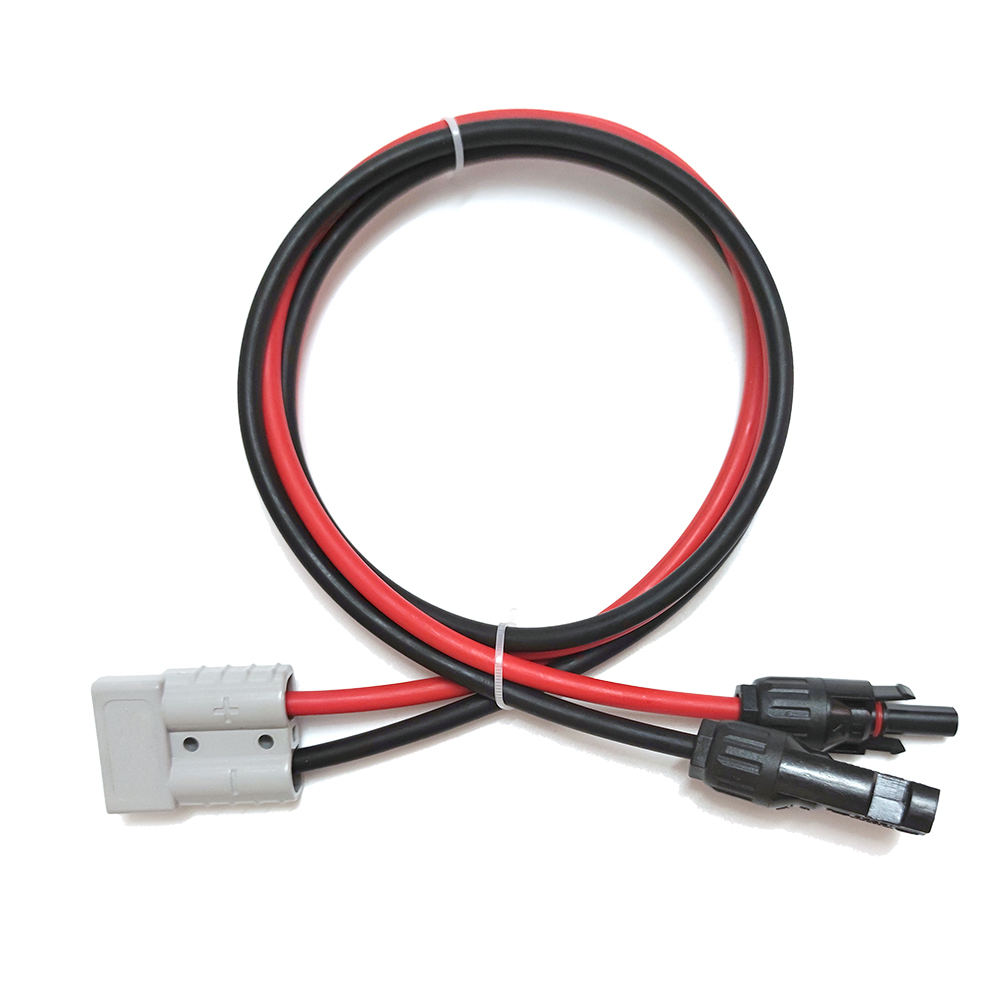

PV1-F Photovoltaic Extension Cable

INTRODUCTION

Connector form : Anderson plug(50A), MC4(30A/45A/45A),Alligator clips,M8 Ring Terminal
Cable type : PV1-F double insulation solar cable
Wire specifications : 2.5mm²/4mm²/6mm²
Rated Current: 28A/35A/45A
length : 0.3/1/2/3/5/10m
Rated voltage: 600V
Wire material: PC flame retardant
Core material : Oxygen-free pure copper

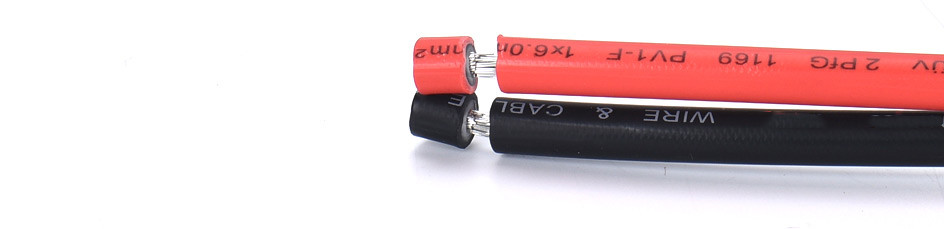

Use PV1-F photovoltaic cable(2.5/4/6mm²)
Oxygen-free pure copper : High-purity, anti-aging, high-conductivity, pure copper, super strong current load capacity, lower resistivity.
PC Flame retardant : Adopt high standard insulated PC material, refuse to use recycled plastic has good flexibility.

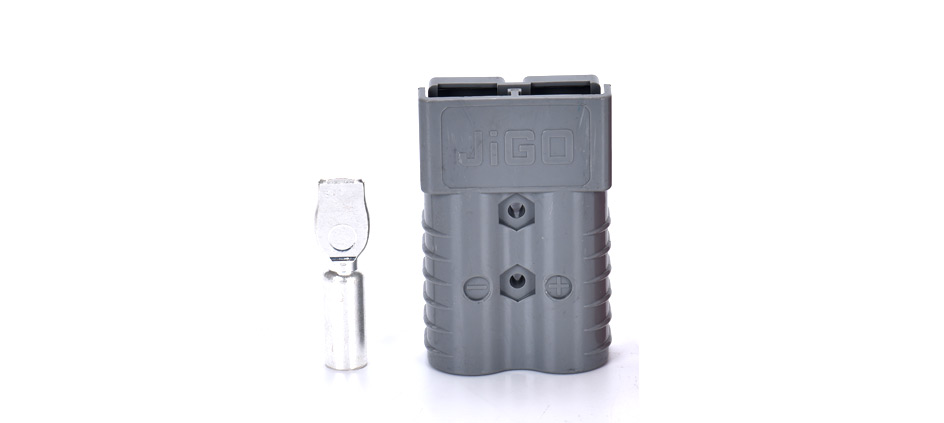

AD : Anderson Bipolar connector(50A)
SHELL : The shell is made of PCu94v0 flame retardant material and stainless steel shrapnel design
TERMINAL : The terminal is made of copper silver-plated material, which has better conductivity.

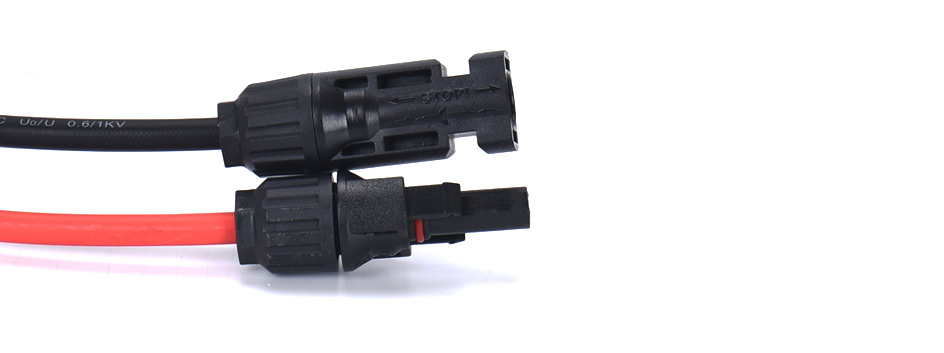

MC: Solar Connector(30A/30A/45A)

HOUSING : PC Flame retardant;High heat resistance, wear resistance, pollution resistance, strong toughness
CORE : Tinned copper;Open type, high quality material, wear-resistant, corrosion-resistant, prevent rust
High-strength waterproof ring : Product uses high-strength waterproof ring;Dust-proof, waterproof and IP67 protection grade
Stable self-locking structure : The joints are connected by pressing and restraining. The male and female heads have self-locking mechanisms to open and close freely.
Insulation and waterproof : Built-in high-quality locking head, exquisite and firm, sealed and insulated, which plays a role of guiding and preventing electric shock

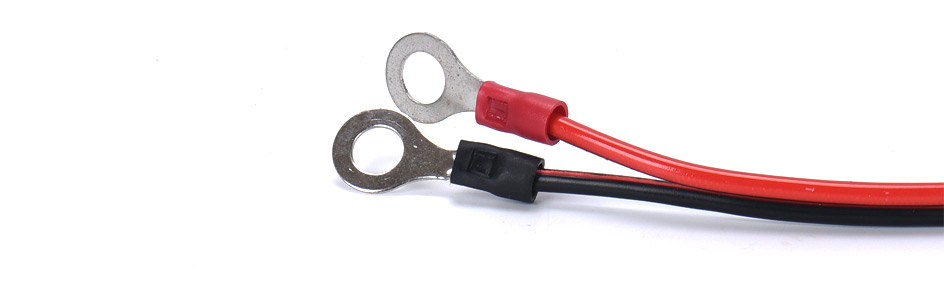

M8 Ring Terminal
TERMINAL : 99. %% pure copper, also known as copper.
The purity of the product directly affects the conductive properties, contact resistance, etc.
Surface treatment : tin plating (matt, processed with imported products.) Can be crimped or welded
Features : Welding treatment in the gap. After the products without welding are crimped, the gap is easy to spread, so that the crimping tension is not enough or the copper wire emerges from the gap.

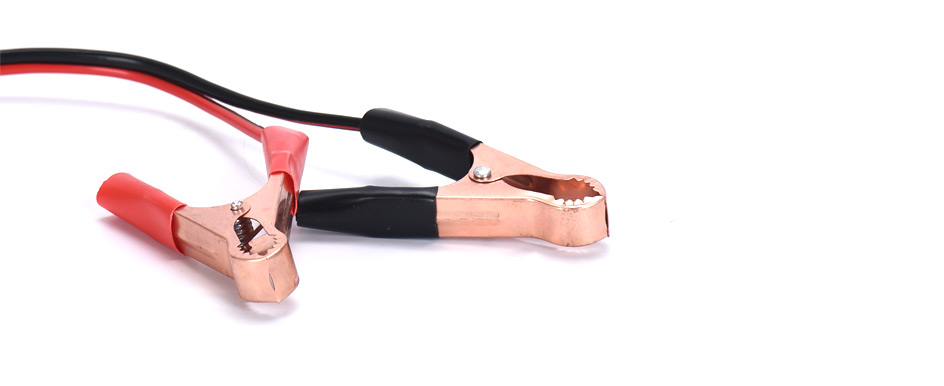

EY: Alligator clips(Battery clip)
METAL : iron-nickel alloy electroplated copper, thick steel spring in the middle, large clamping force.
Surface treatment : polished electroplated copper, bright and easy to fade.
Features :
1.The thicker material of iron-nickel alloy is used, and the copper is electroplated after polishing. When the toughness reaches the standard, it guarantees its good conductivity.
2. Bold steel spring is adopted, which has large clamping force and tight contact, and it is not easy to deform for a long time.
3.Appearance is PVC sheath.

PRECAUTIONS

Dear buyer, the following statement is very important,so please read it carefully.

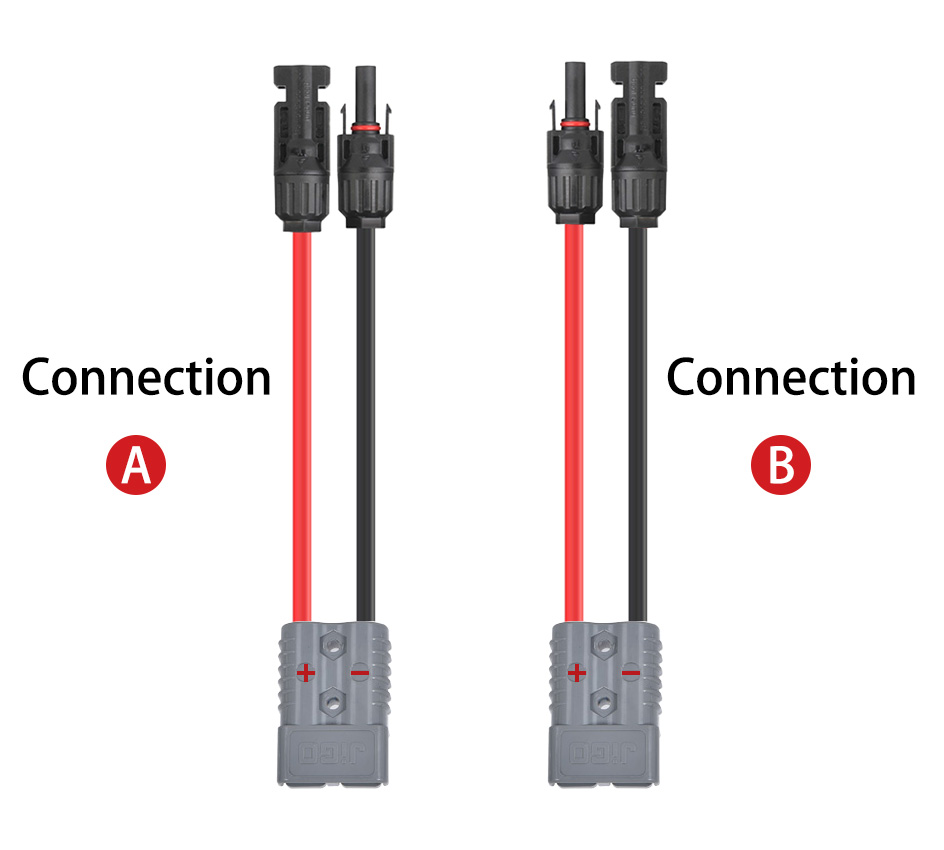

When you buy "A4(MC + AD)", please pay attention to your actual needs. We default to send type-A connection, if you need type-B, please leave a message, thank you
