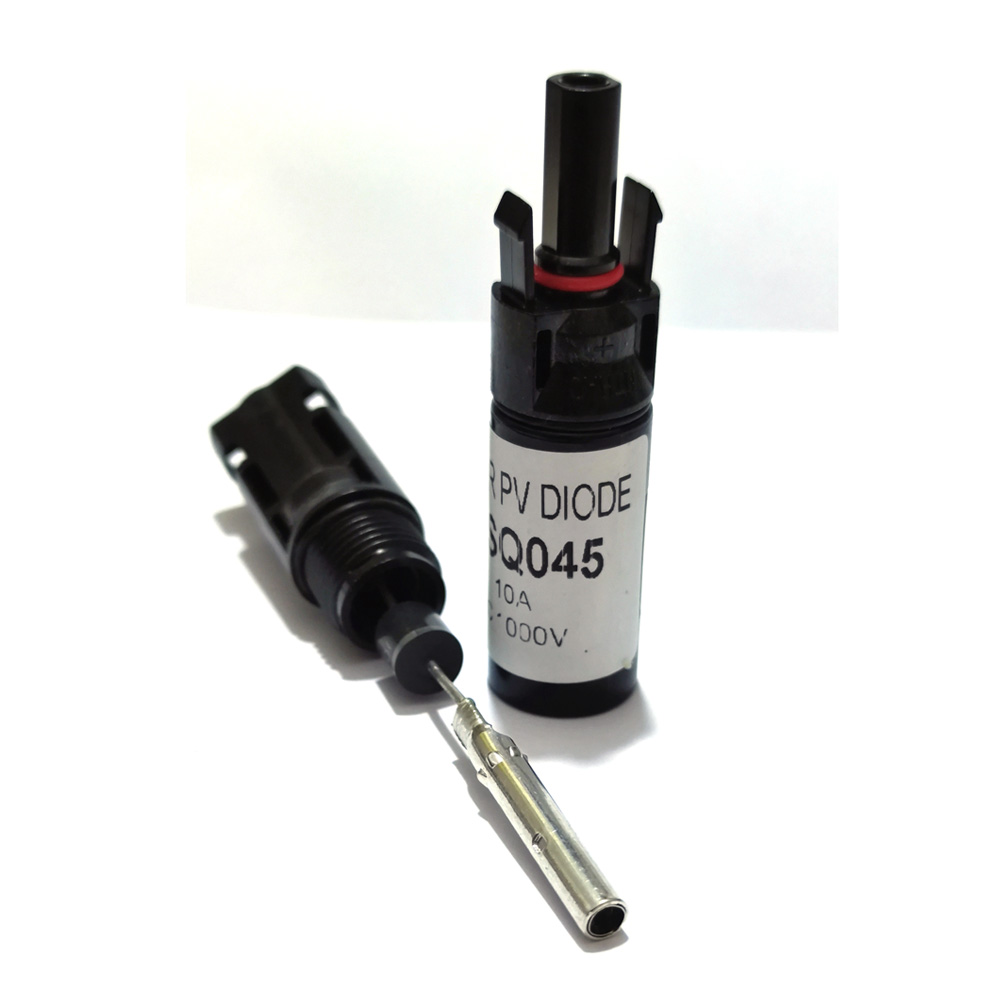

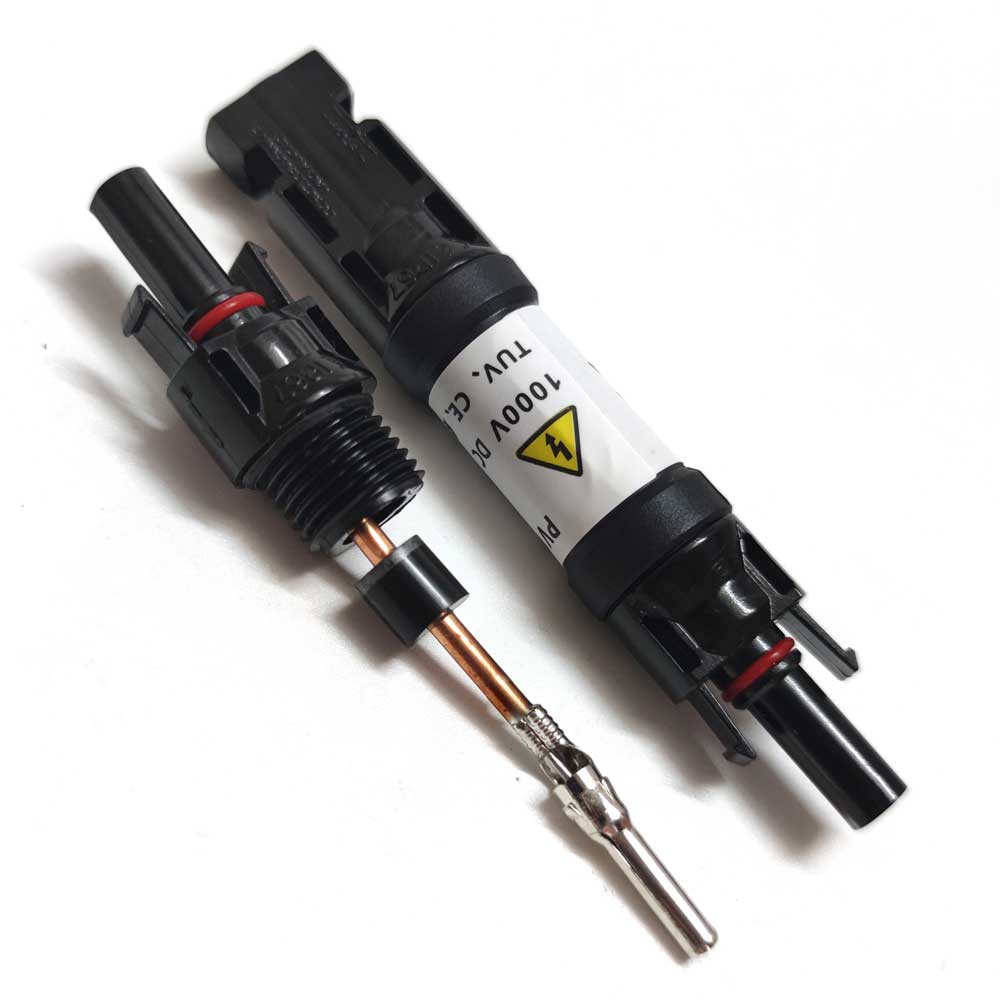

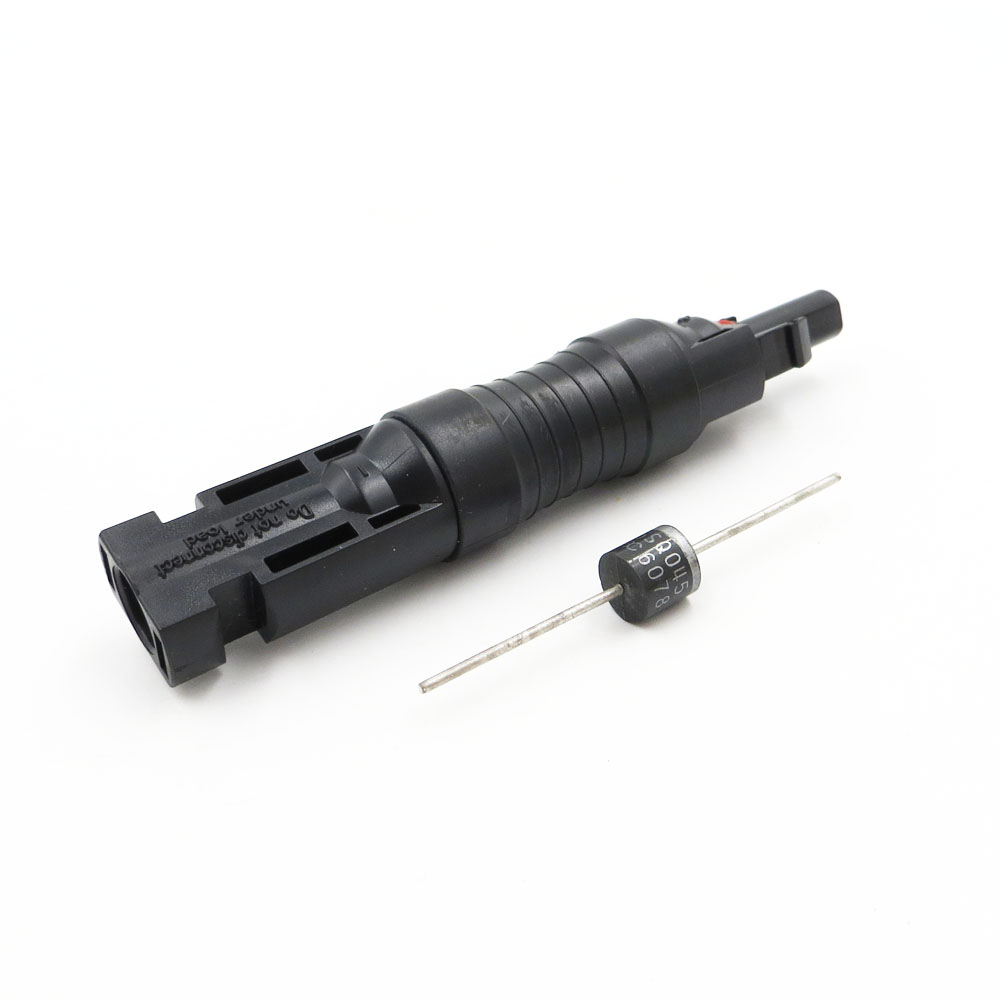

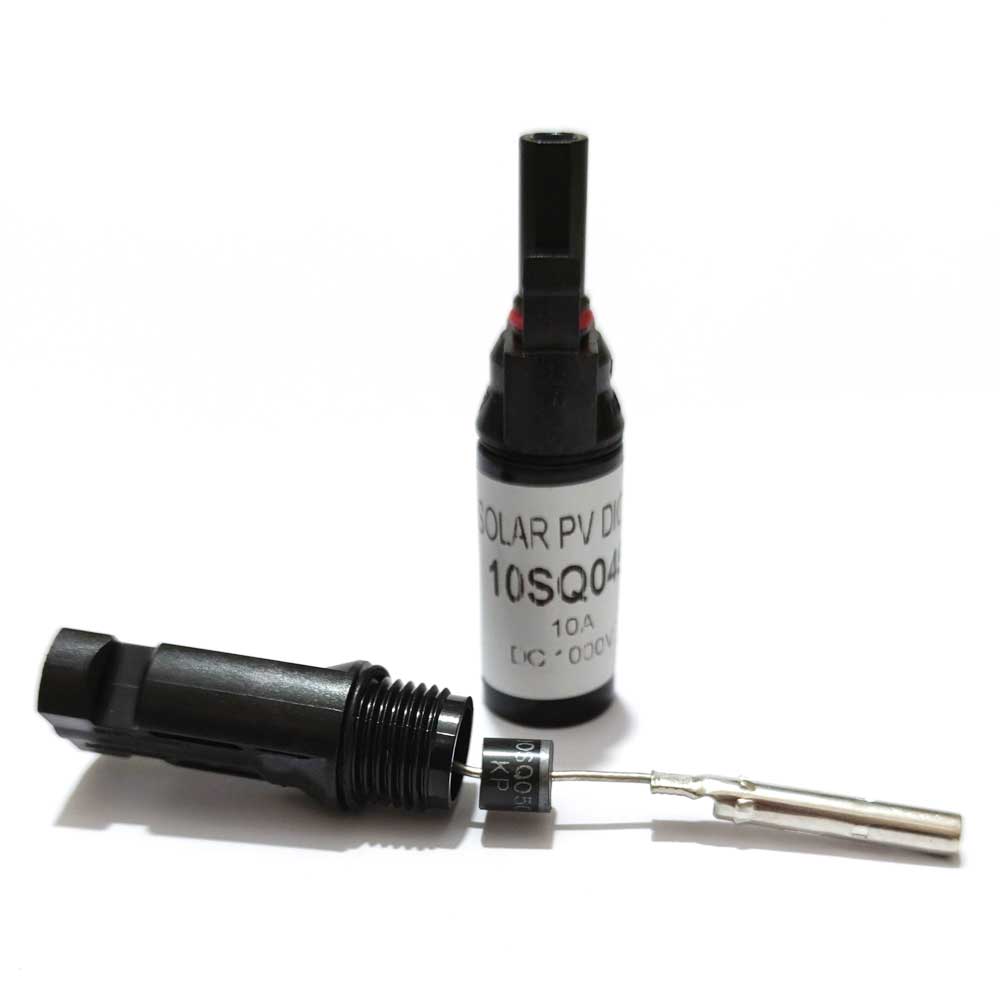

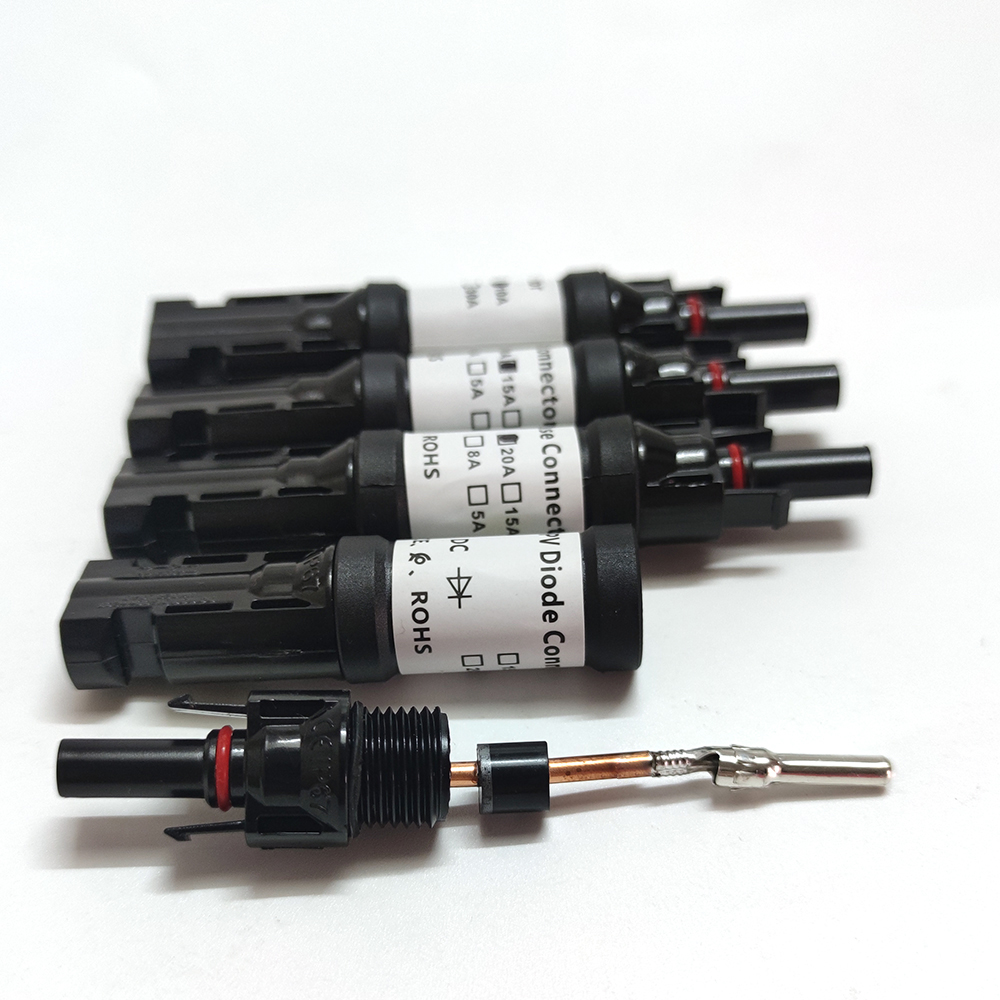

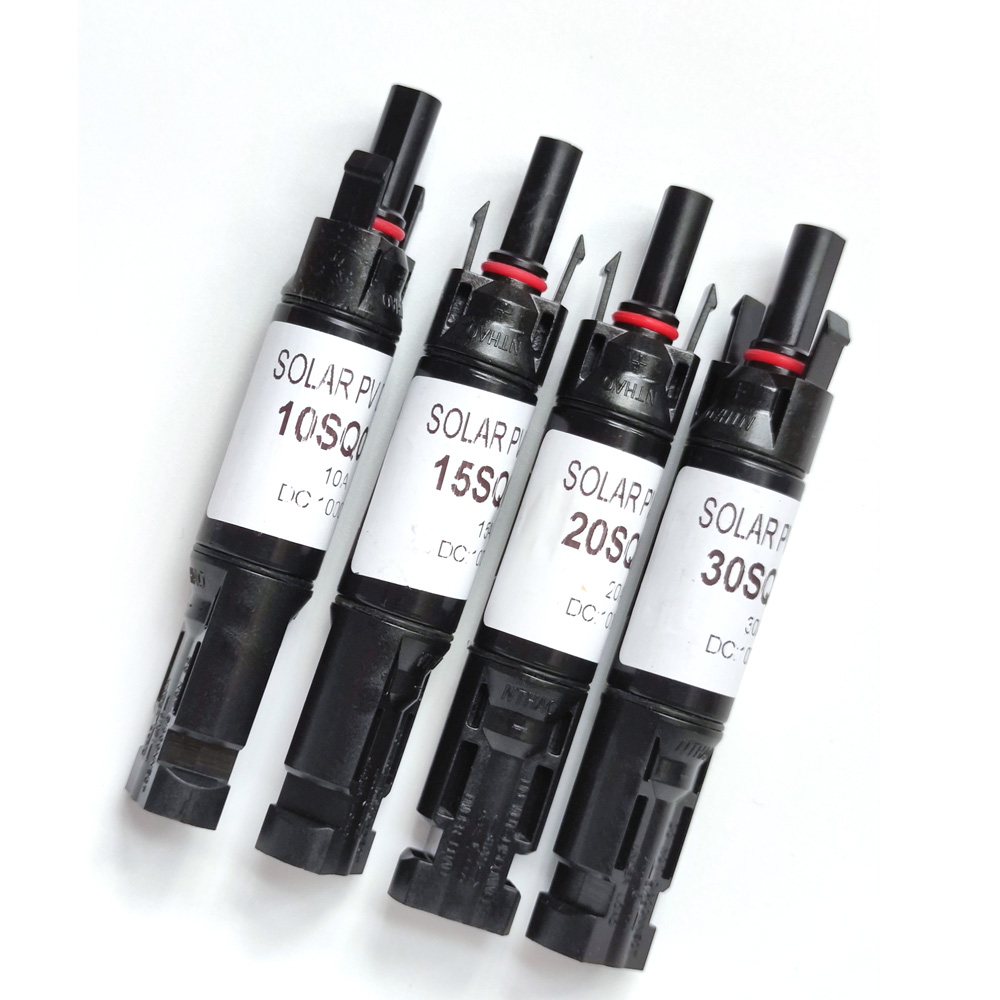

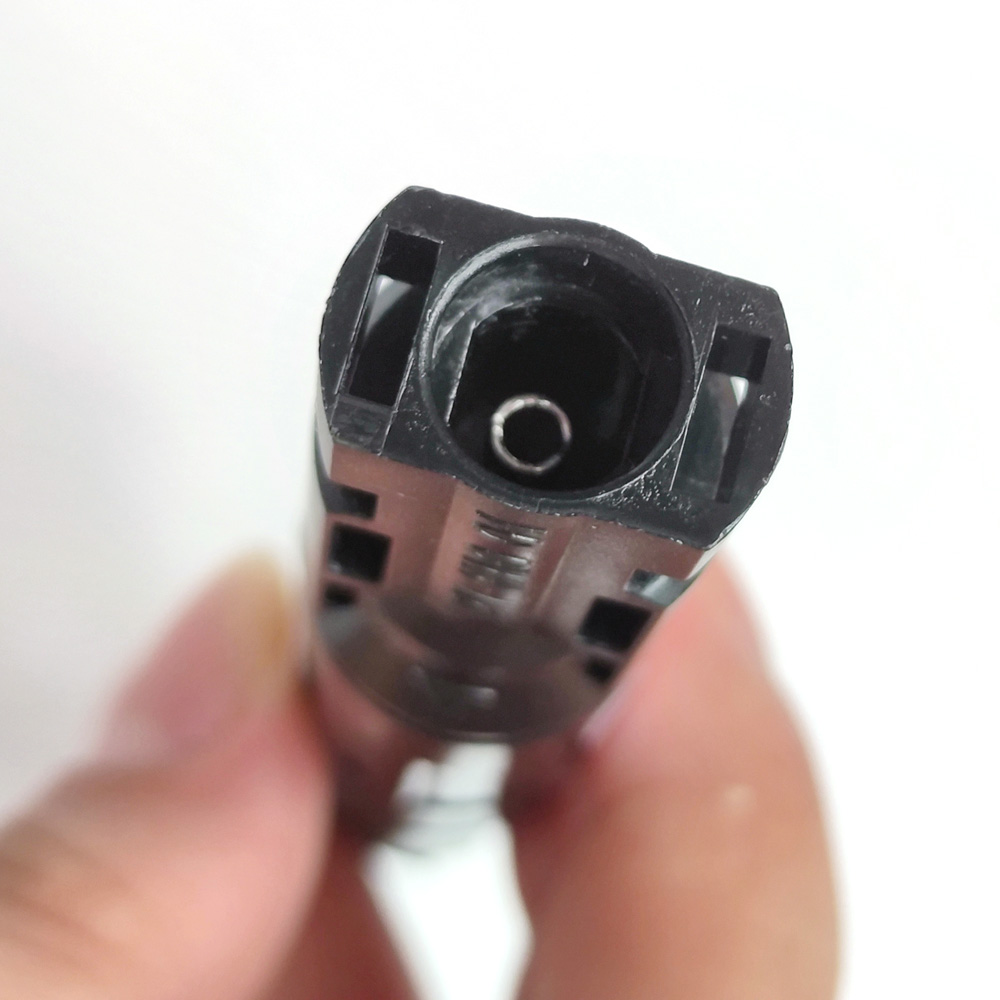

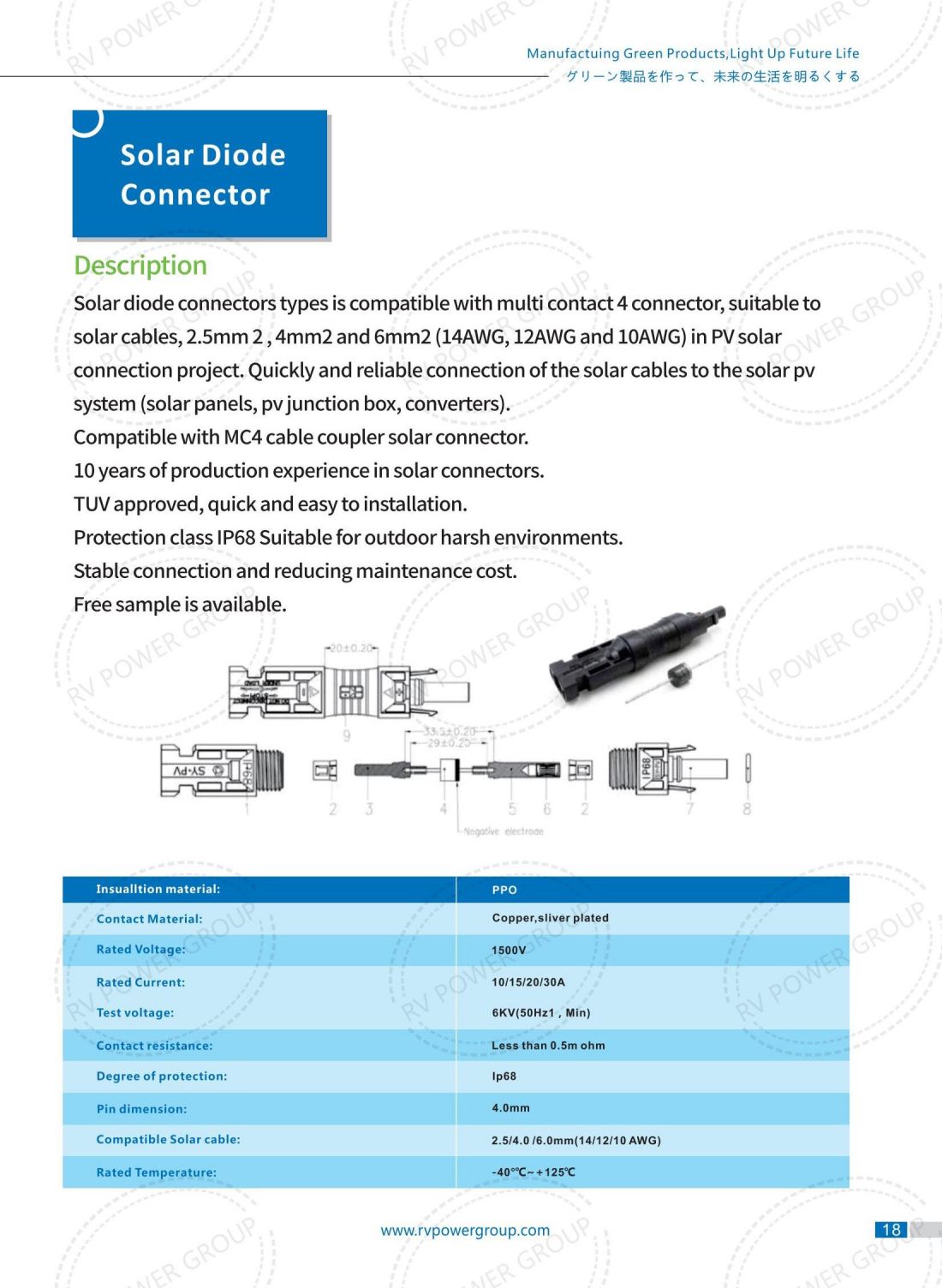

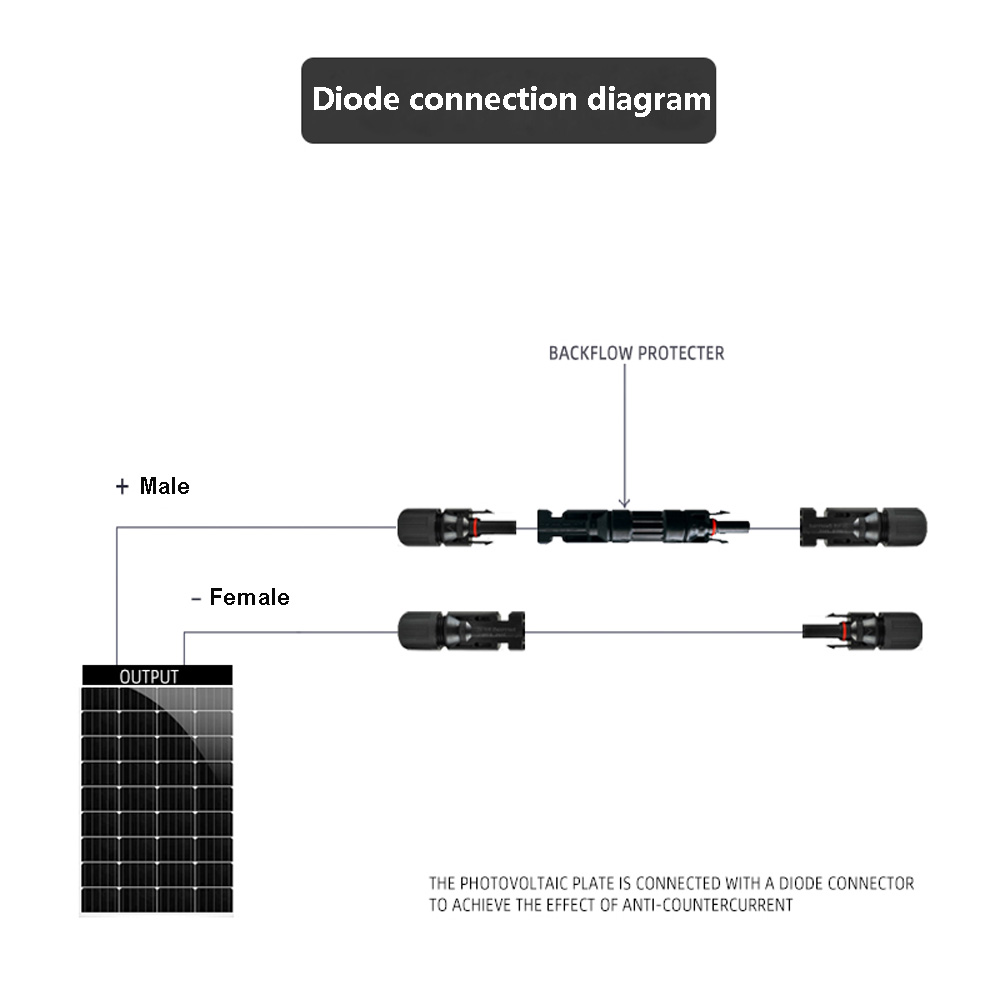

10A 15A 20A 30A DC Diode Solar Plug Connector For PV System Solar panel Parallel Connection Antireflux protection

Rated voltage: 1000 V

Rated impulse voltage: 1000 V

Rated current: 24A - 14 AWG (2.5mm⊃2;), 30A - 12 & 10 AWG (4mm⊃2; & 6mm ⊃2;)

Test voltage: 6 kV (50 Hz)

Protection grade: IP67

Insulation material: PC/PA

Contact material: Copper, tin plated

Operating temperature: -40°C ~ +90°C

Safety class: II

Flame class: UL94-V0

Contact resistance: ≤5mΩ

Insertion / Withdrawal force: ≤50N / ≥50N

Suitable for cables: 10, 12, 14 AWG (2.5mm2/4mm2/6mm⊃2;)

Locking system: Snap-in
