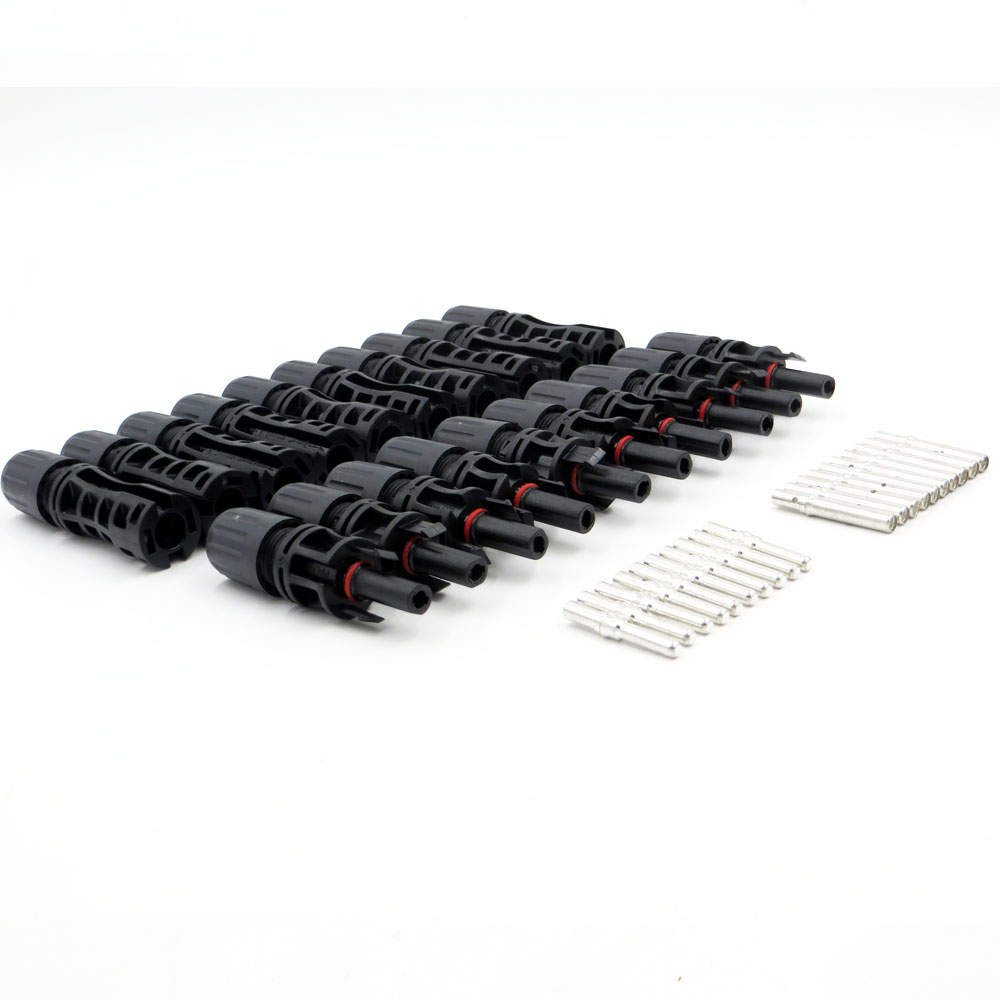

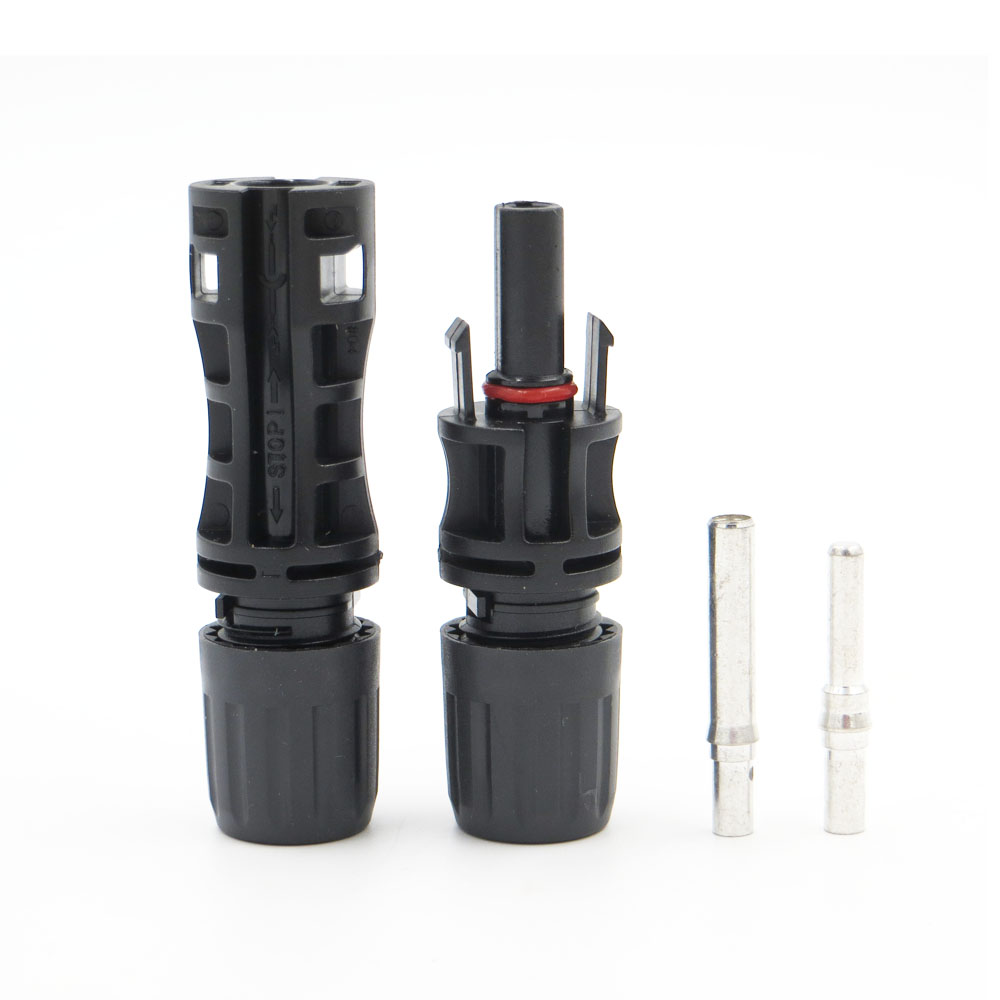

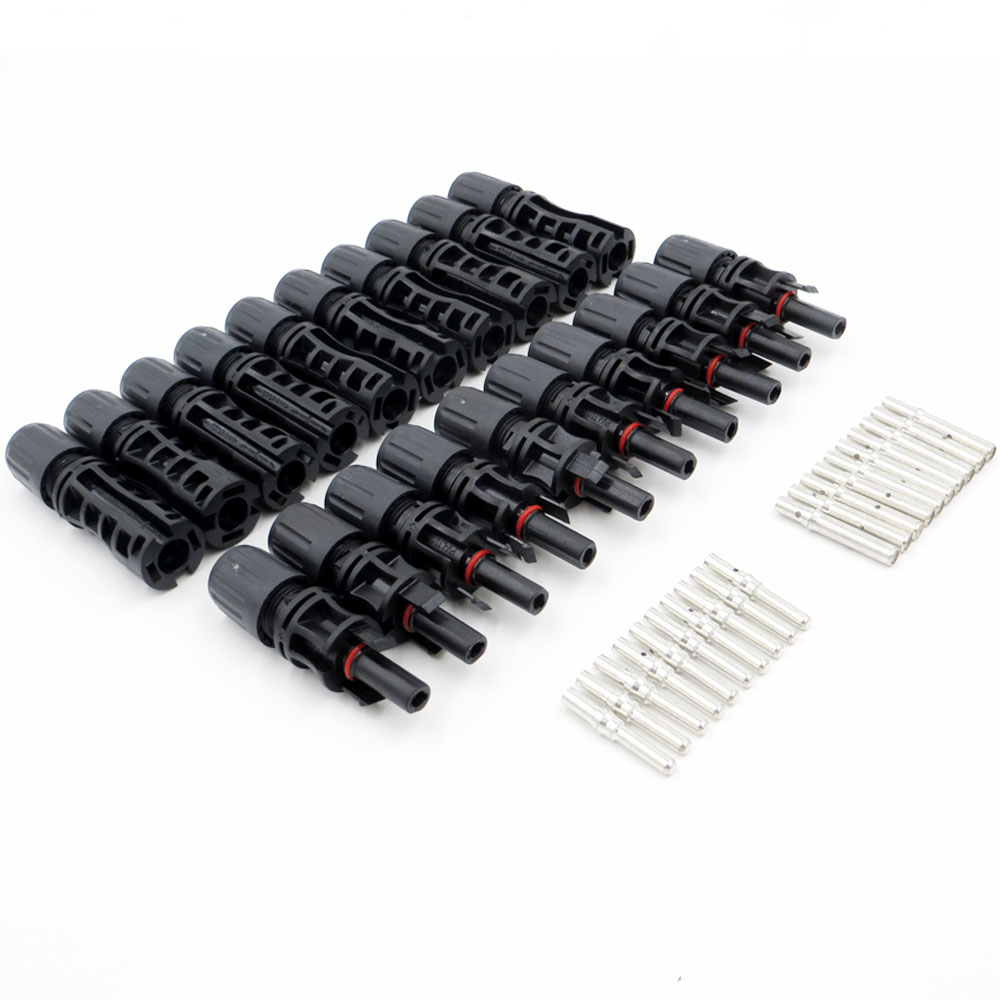

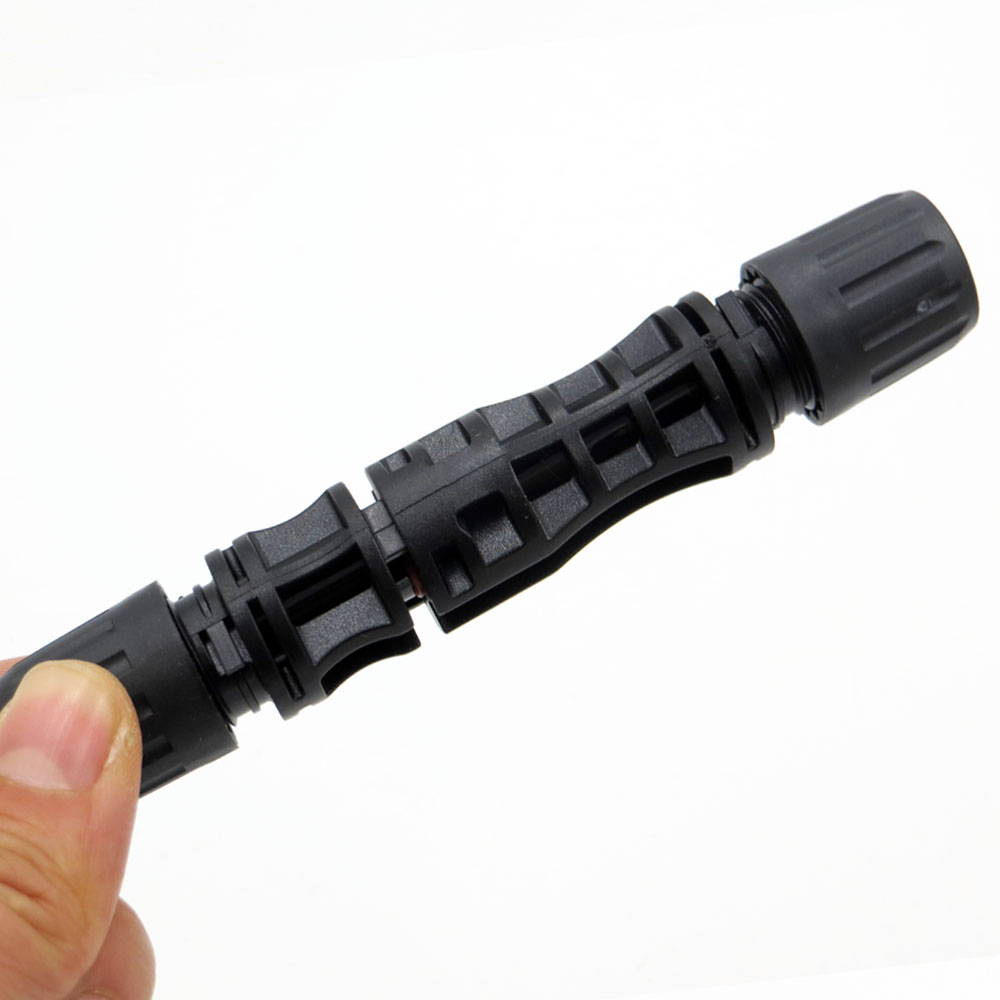

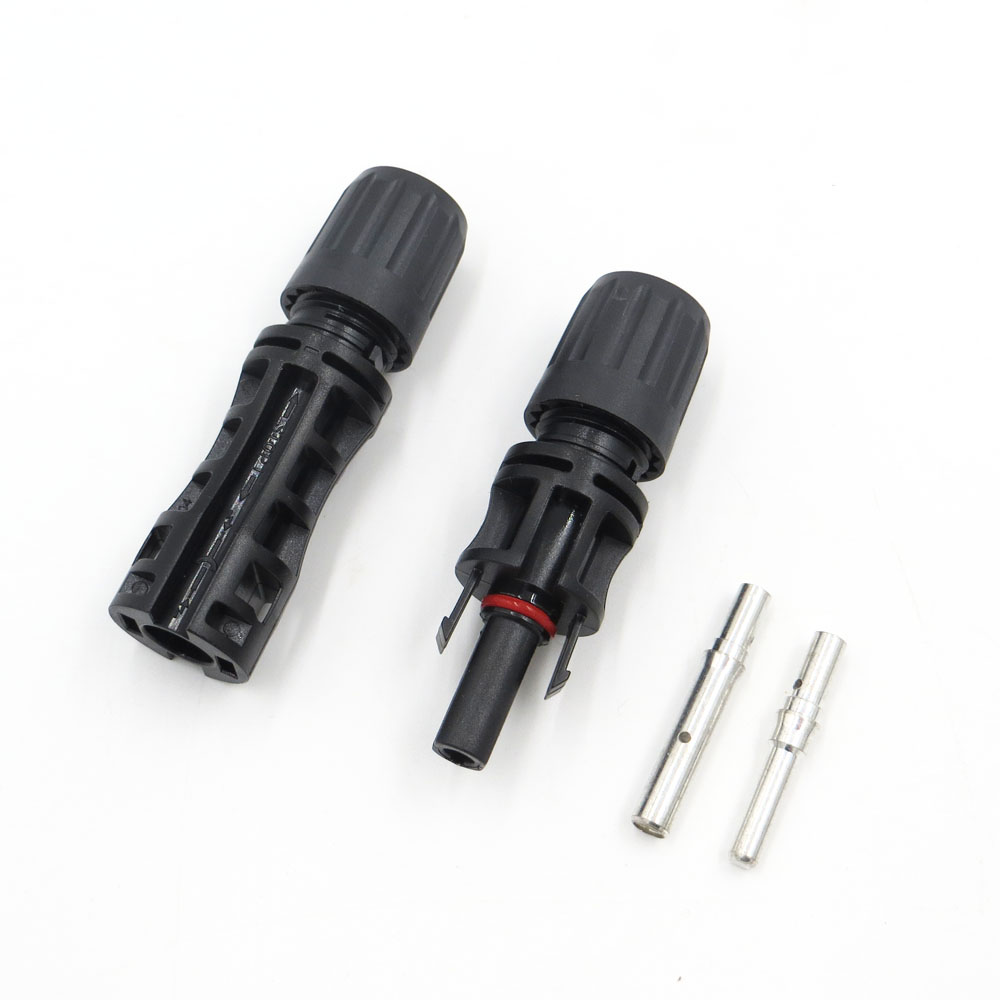

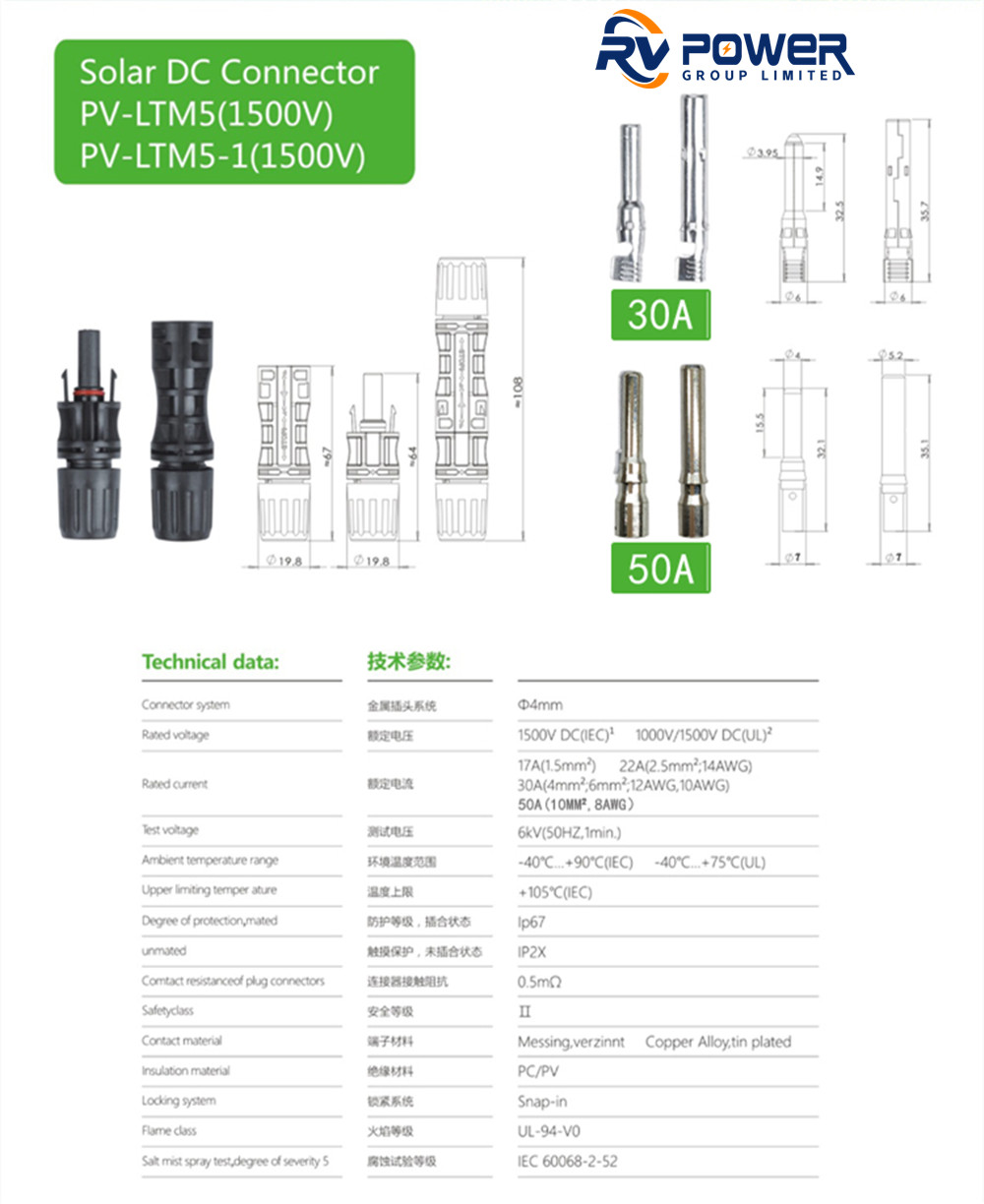

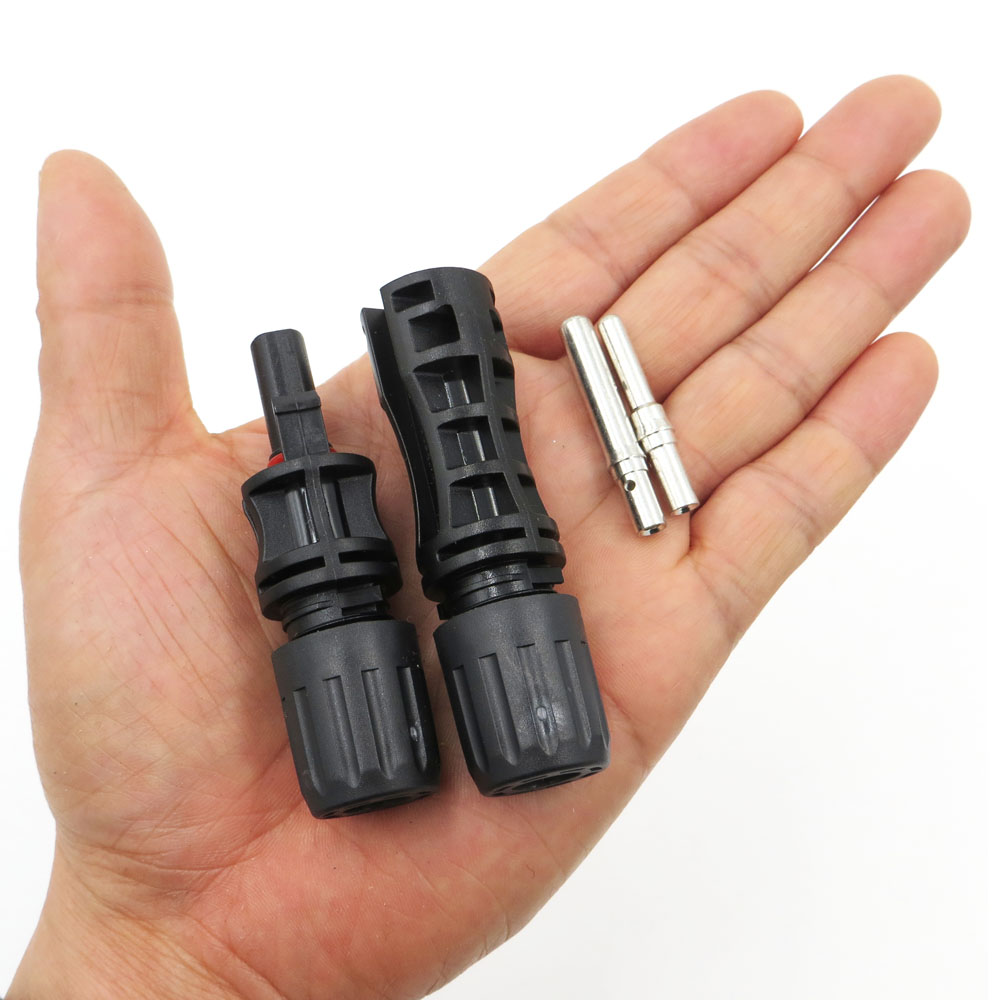

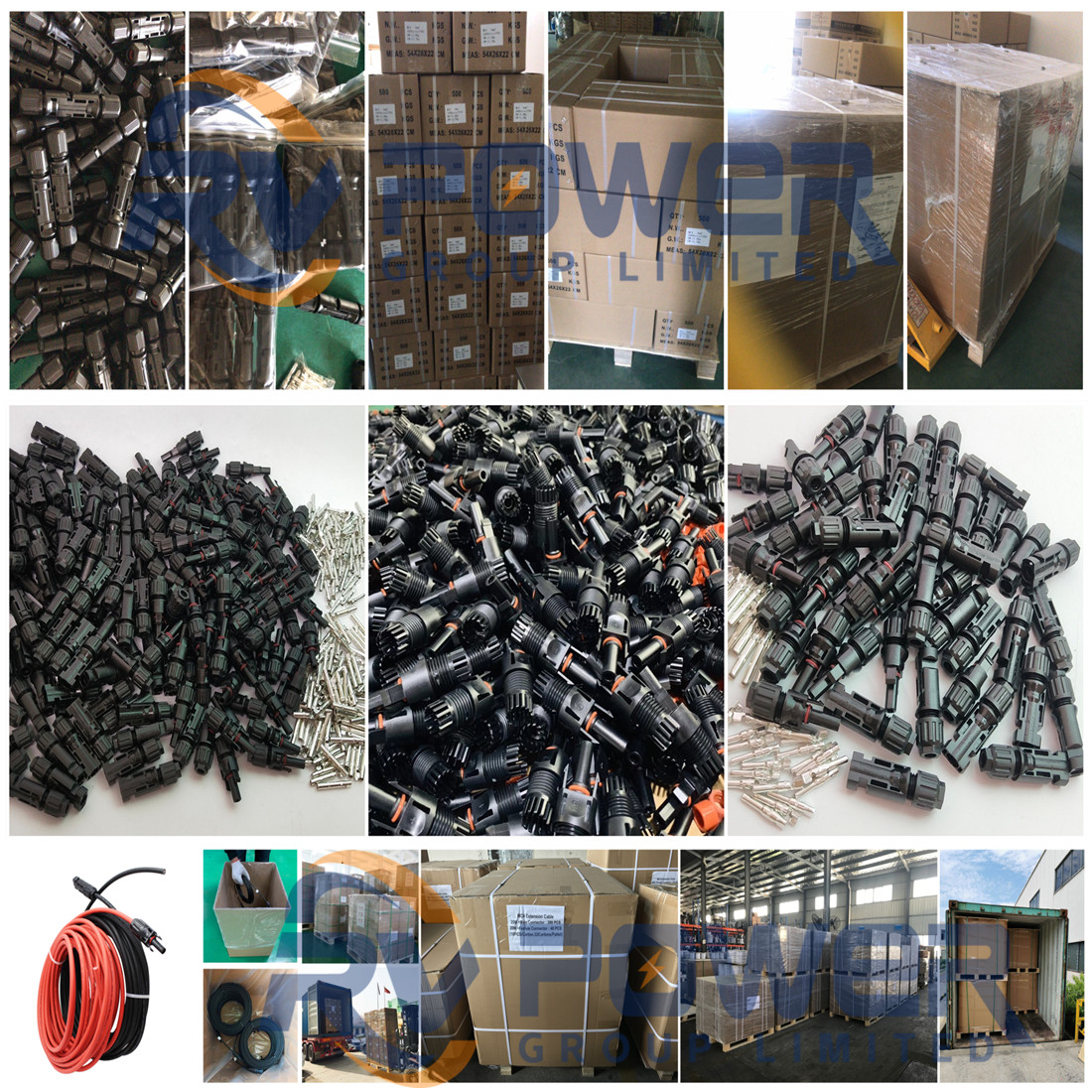

TUV approved 1500V Solar Connector
Product Name : PV connector
Working Current : 30A-50A
Maximum Voltage : DC1500V
Contact Resistance : <=0.5 milli ohms
Insulation Resistance : > 500MΩ
Wire Size Range : 1.5mm2—6mm2 ( 10,12,14 ,16 AWG)
Cable outer diameter range : Φ5mm ～Φ 7mm
Temperature Range : -40 °～ + 105 °
Protection Degree : IP67
Protection Class : Ⅱ
Insertion force : <=50N , Pullout force>=50N
Insulation Material: PPO , black
Contact Material : Copper cn , Plate with nickel sn
Flame Class : UL94-VO
Terminal connection : Press to connect
