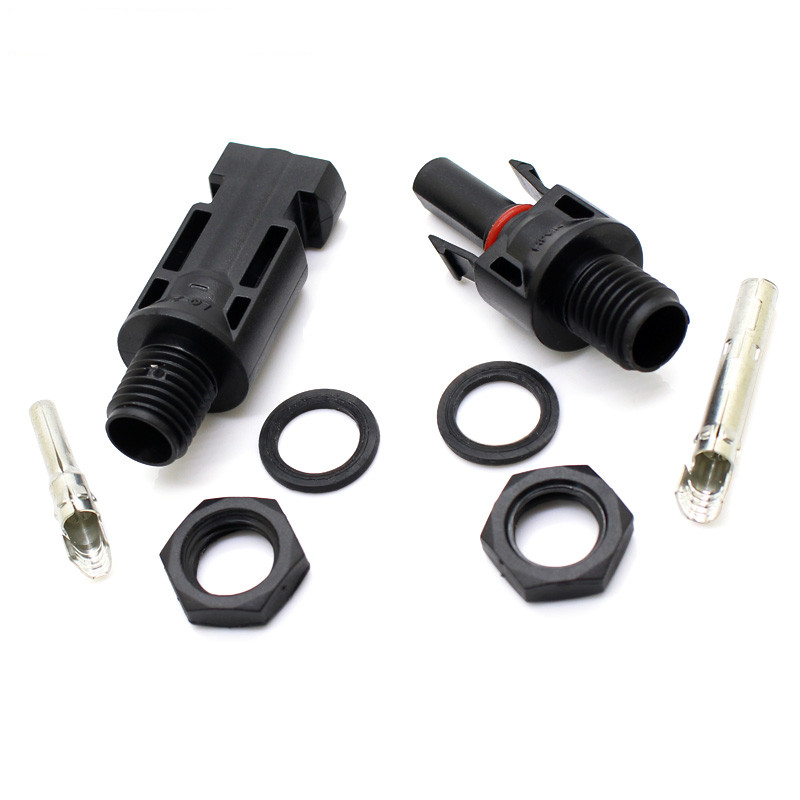

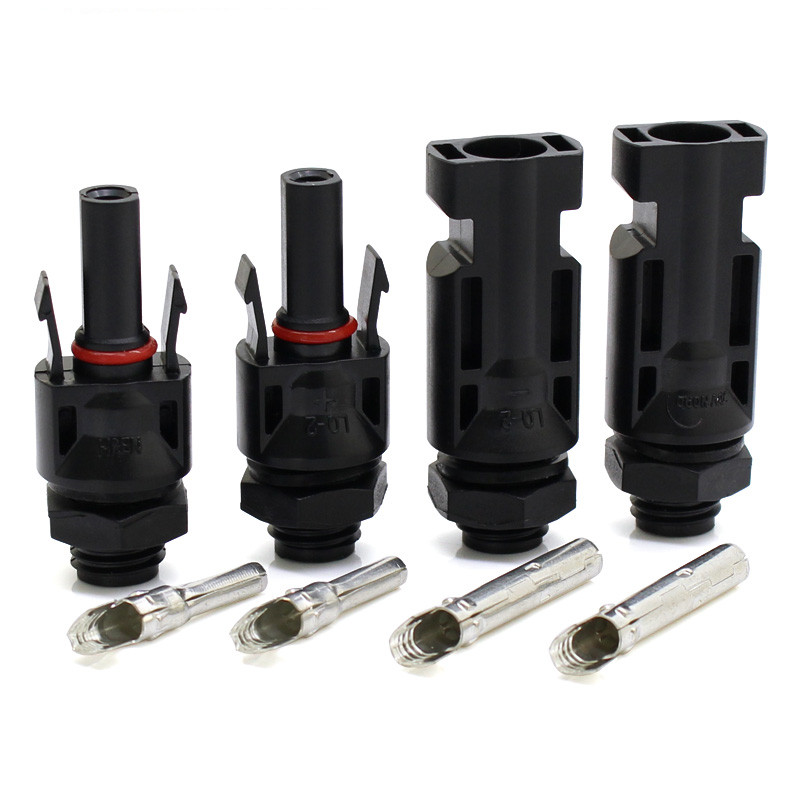

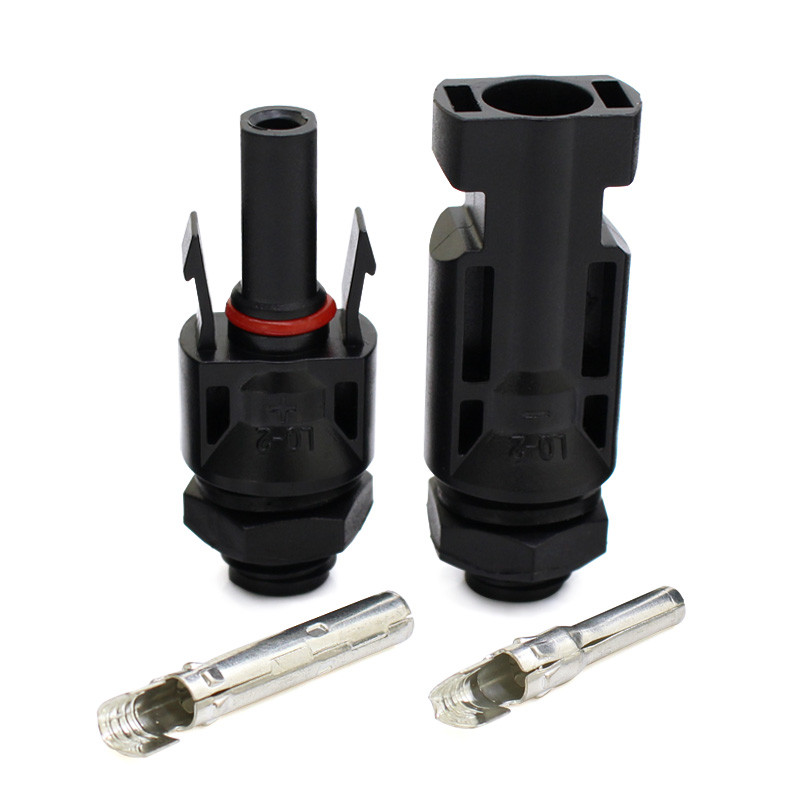

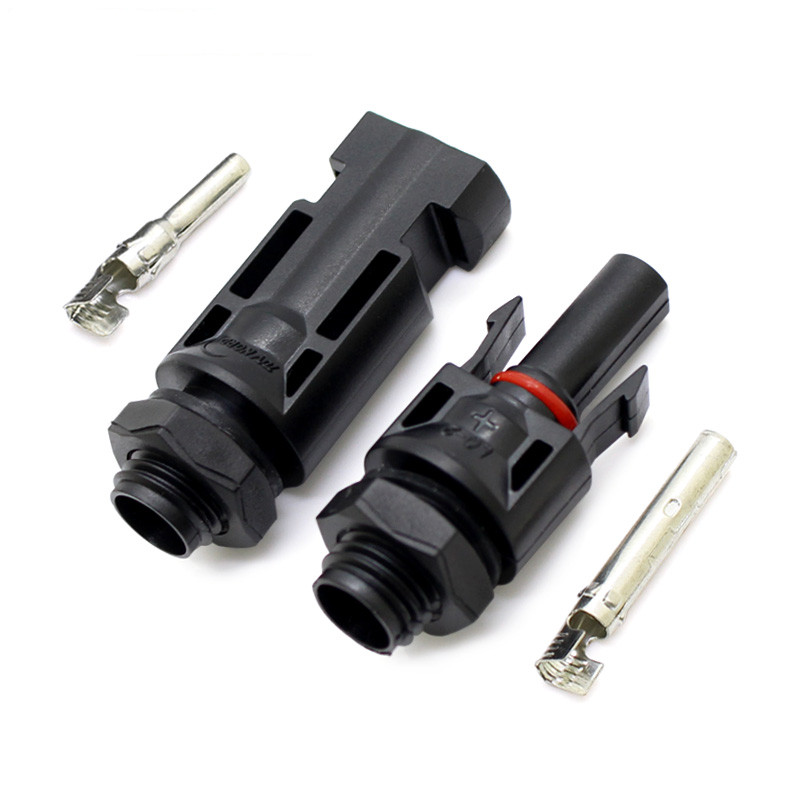

MC4 PANNEL CONNECTOR
Solar PV connector for solar panel mount and inverter Panel solar connector
Solar PV connector for solar panel mount and inverter Panel solar connector
Products details :
Suitable to solar cable, 2.5 mm2, 4mm2 and 6mm2
Easy, quickly and reliable connection of the solar cables to the photovoltaic system (solar panels, converters).
|
Insulation material: |
PPO |
|
Rated Voltage |
TUV 1000 DC |
|
Test voltage |
6KV(50Hz,1Min) |
|
Contact material |
copper, tin plated |
|
Contact resistance |
less than 0.5 m ohm |
|
Degree of protection |
IP67 |
|
Pollution Degree |
2 |
|
Protection class |
Class II |
|
Flame calss |
UL94-V0 |
|
Plug Force |
less than 50N |
|
Withdrawal force |
more than 50N |
|
Ambient temperature range |
-40 ~ + 90. |
|
Compatible cable cross sections Solar cable |
2.5mm⊃2; ,4.0 mm⊃2; and 6.0 mm⊃2; (14 awg,12awg,10awg) |
|
Pin dimention |
4.0mm |
Technical data:
1.Connector adopts touch of reed with inne-knob type.
2.Auto-lock enable connection more easy and reliable.
3.Popular figure suit most of field installation.
4.Quickly to connector.
5.Water proof and prevent dust.
6.Long life.
