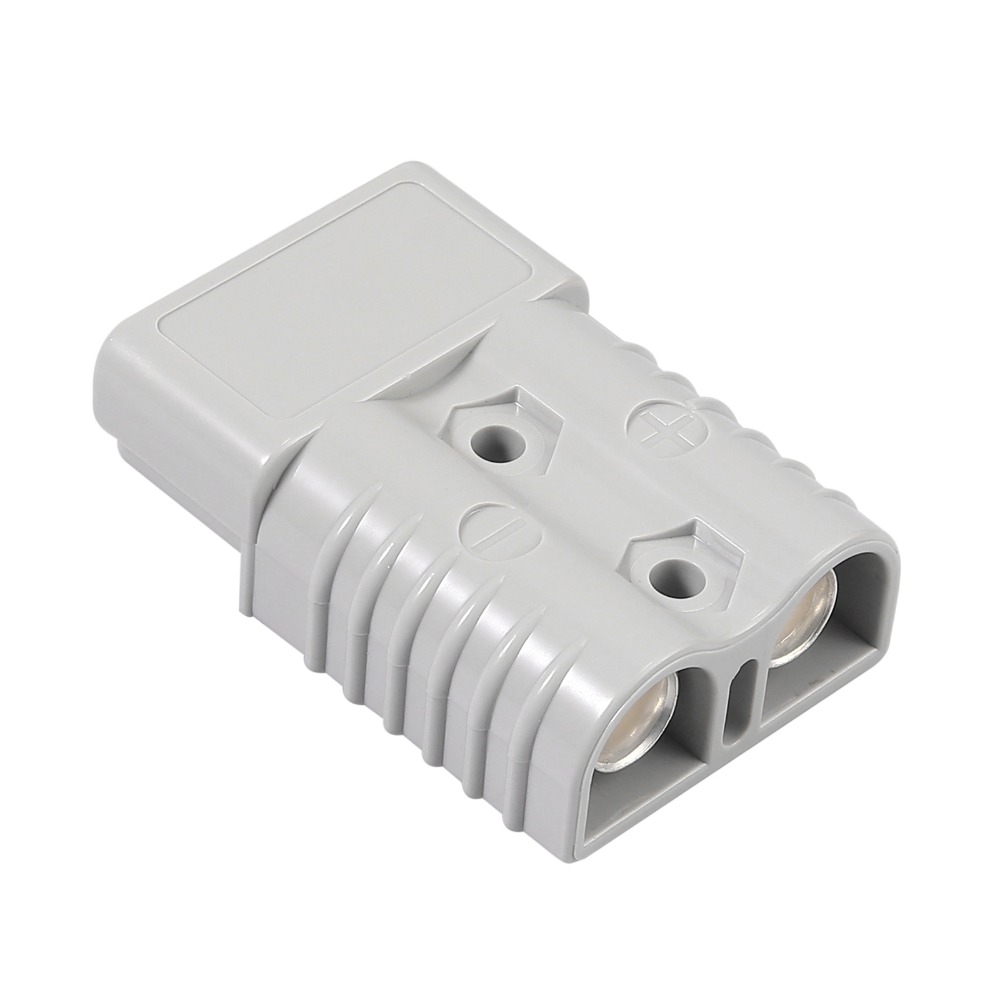

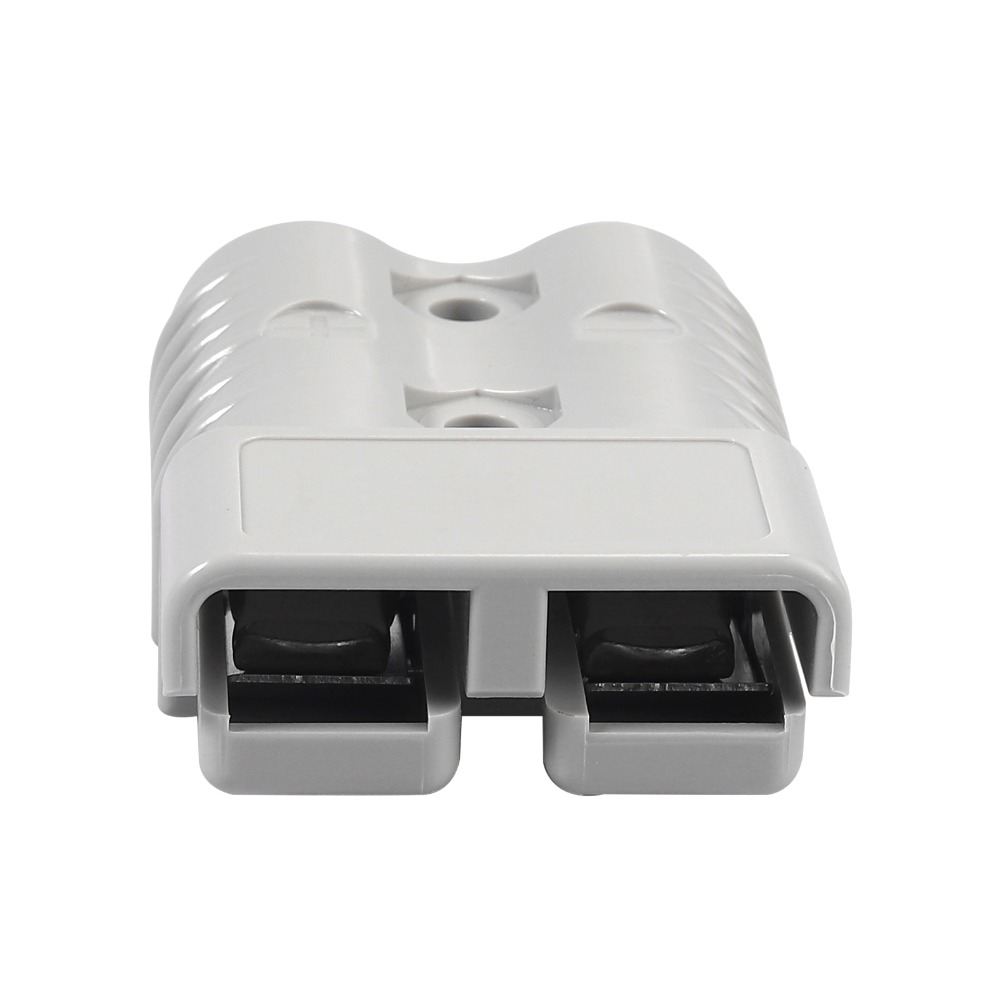

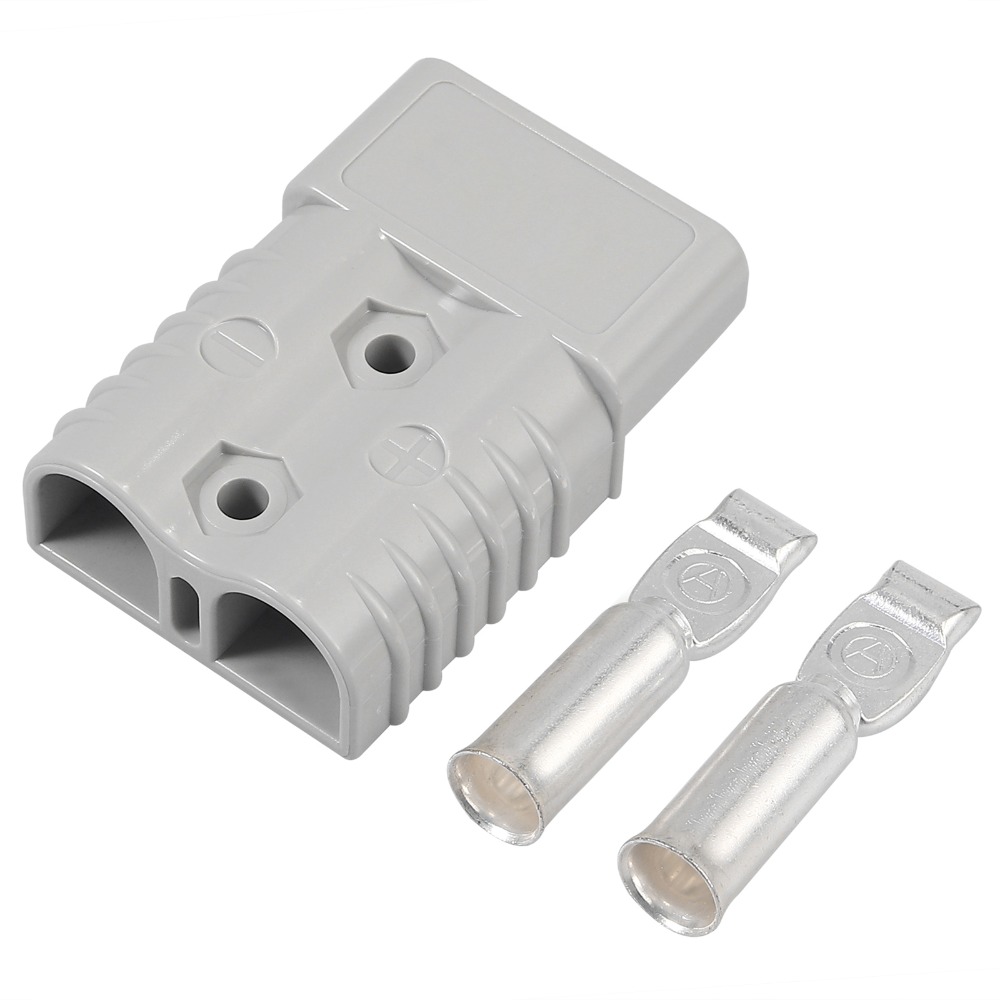

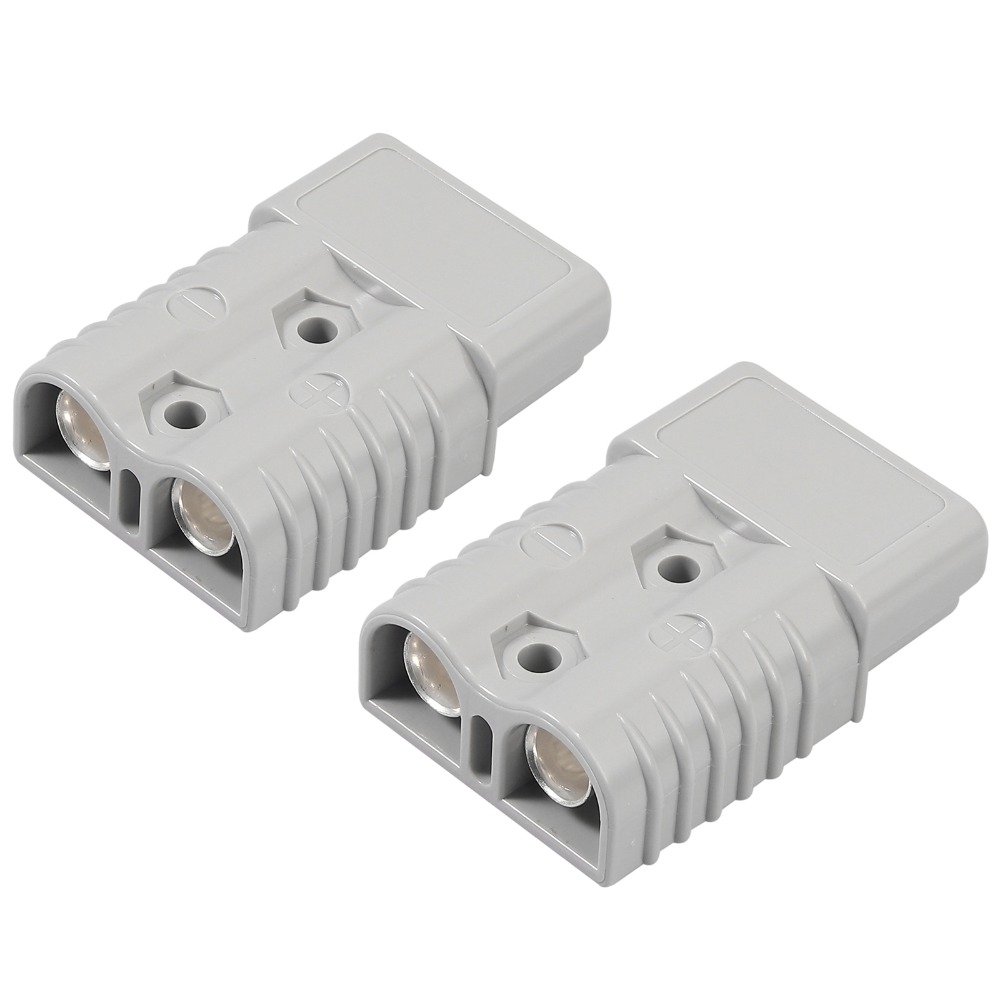

SOLAR CONNECTOR

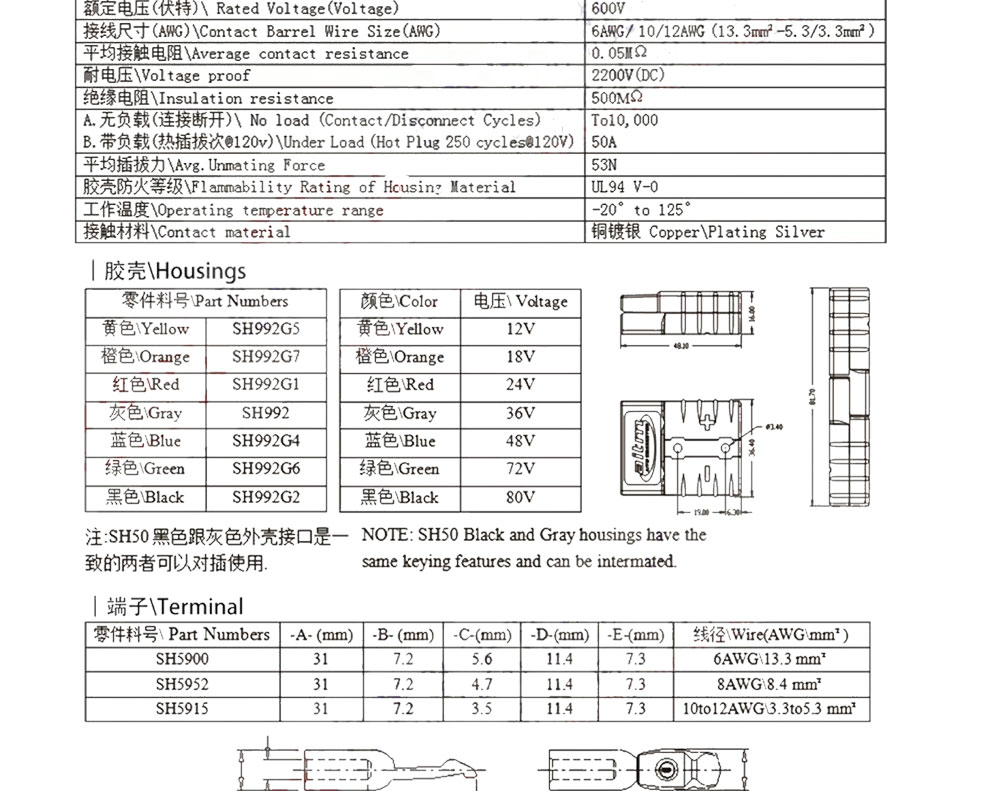

Specification:

• Brand new

• Housing Material: Polycarbonate (PC)

• Contact material: Pure copper silver plating

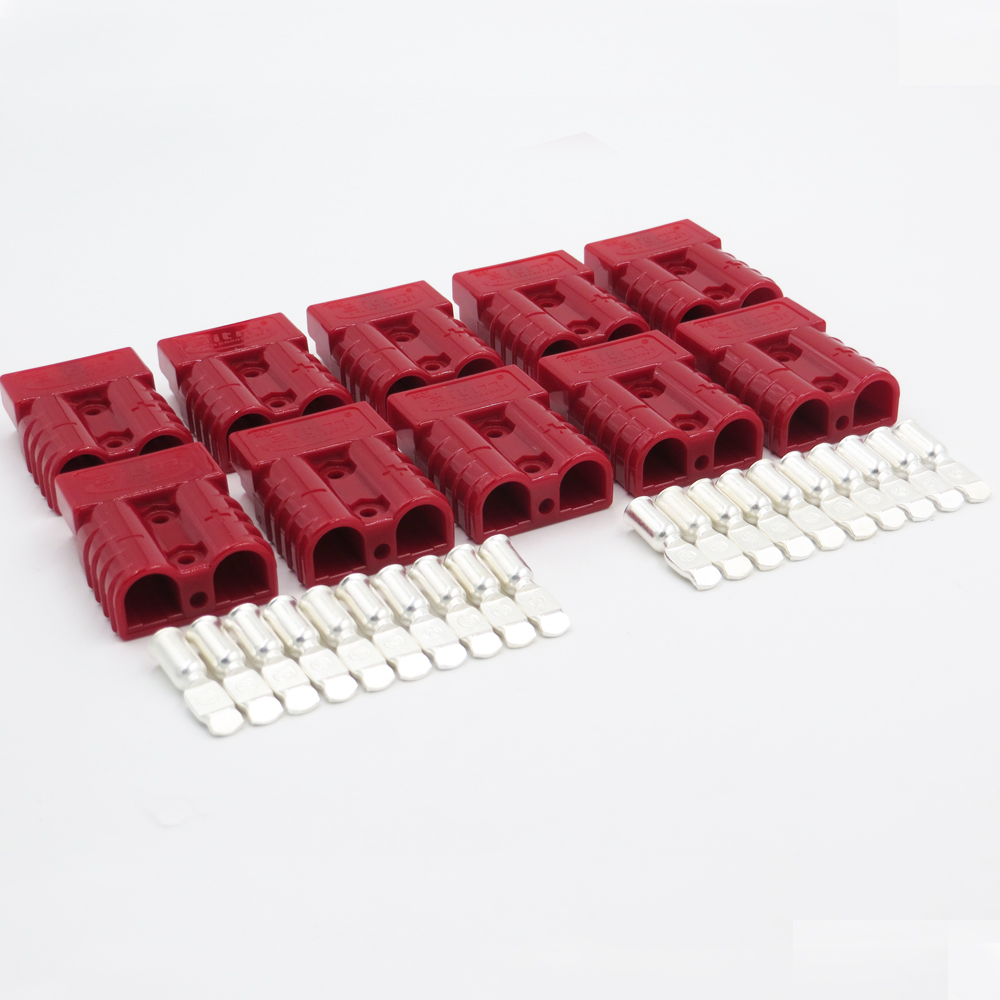

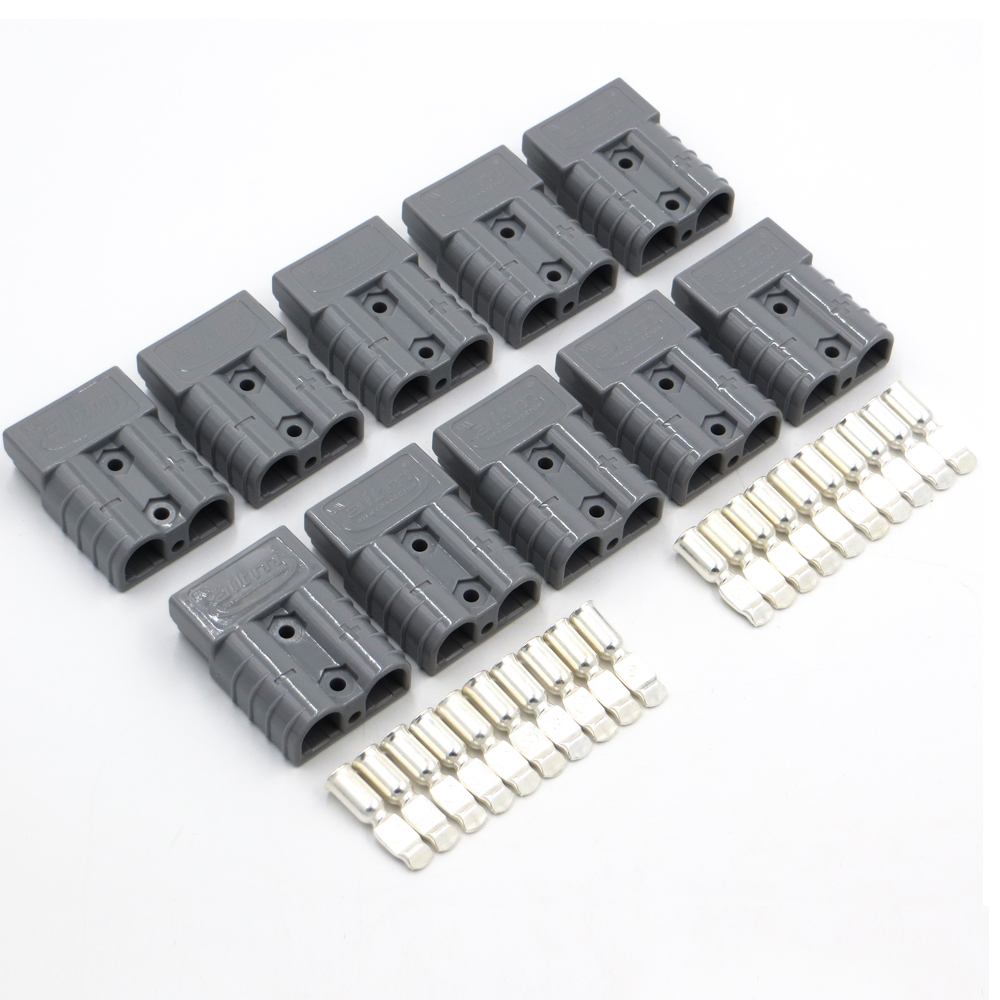

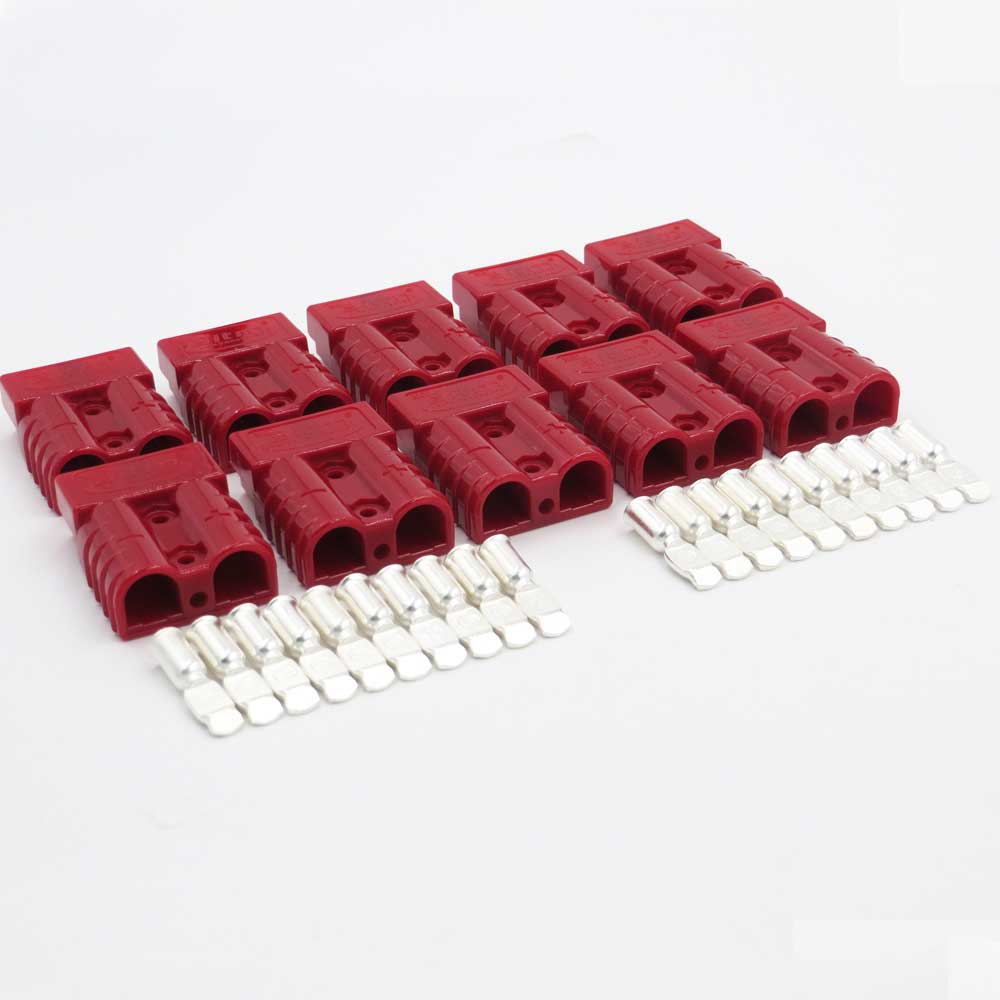

• Color: Black/Red/Gray

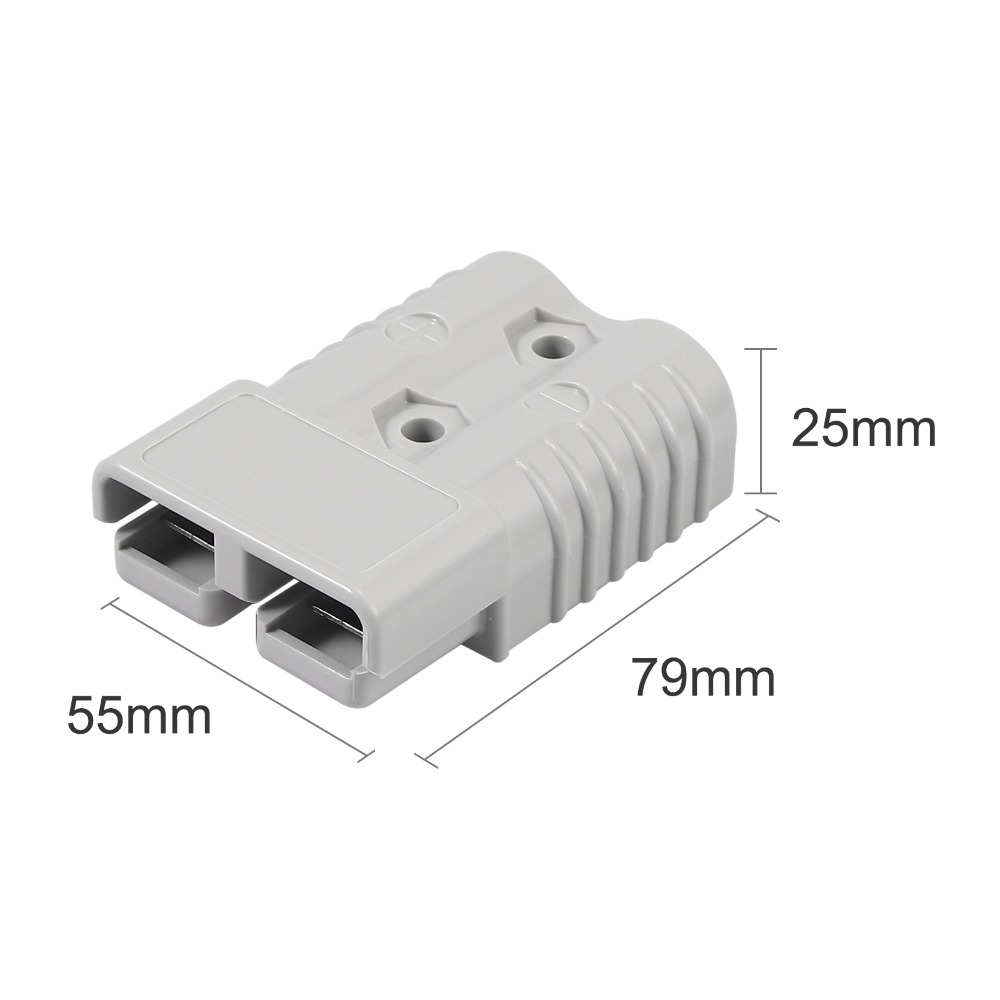

• Size: approx. 35.1*48*15.9mm

• Rated current: 50A

• Rated voltage: 600V

• Voltage: for 12v or 24v use

• Vibration resistance: excellent

• Impact resistance: high

• Cable size: 6B&S / 6AWG (up to 13.3 sq mm)

• Average contact resistance: 0.05MΩ

• Voltage proof: 2200V (DC)

• Insulation resistance: 500MΩ

• A. No load (Contact/Disconnect Cycles): To 10,000

• B. Under load (Hot Plug 250cycless@120V): 50A

• Flammability rating of housing material: UL94 V- 0

• Operating temperature range: -20° to 105°

• Application: Battery Connections, Forklifts, Battery Chargers, Solar Panels, Wind Generators, Tow Trucks, Snow Plows, Farm Equipment, Jumper Booster Cables, Welding Equipment, Winches, Electric Vehicles etc.

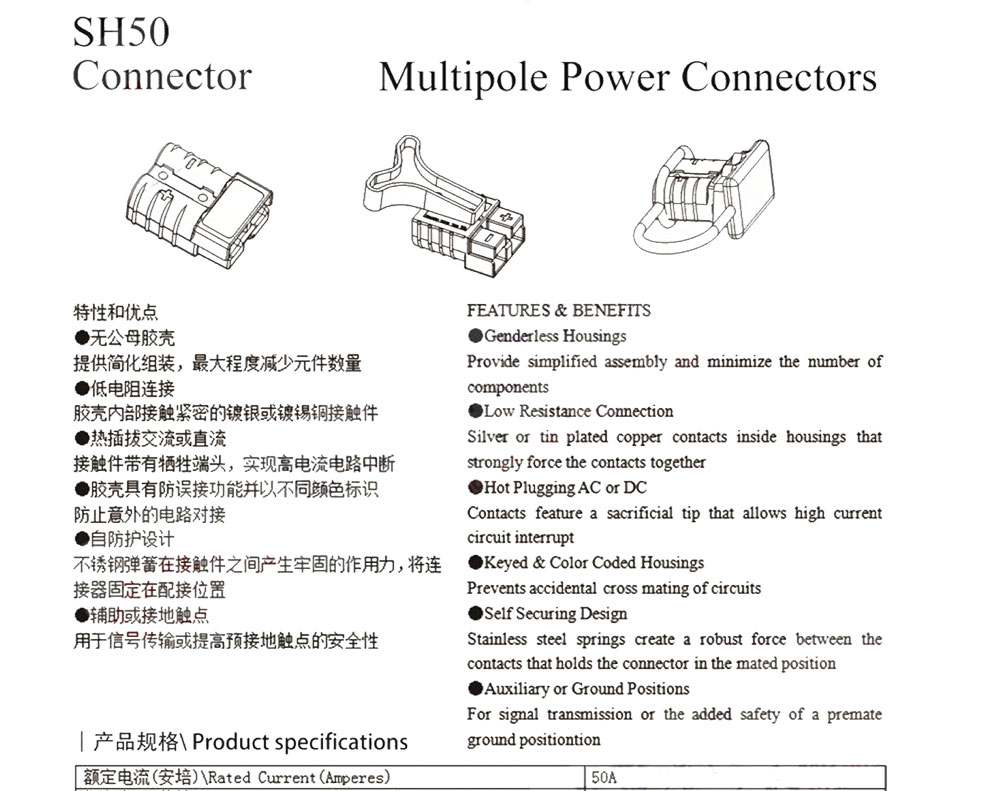

Feature:

• The Plugs is Impact Resistant Polycarbonate and Connectors are Silver plated Solid Copper Terminals.

• Provide simplified assembly and minimize the number of components.

• Silver plated copper contacts inside housings that strongly force the contacts together.

• Contacts feature a sacrificial tip that allows high current circuit interrupt.

• Prevents accidental cross mating of circuits.

• For signal transmission or the added safety of a premate ground position.

• Easy to use.

• Durable in use.

• Suitable for Solar Panels, Dual Battery Systems, Caravans, 4WD, Fridges etc.

•


•


•


•


•


•


•


•


•

•

•

•

•

•
