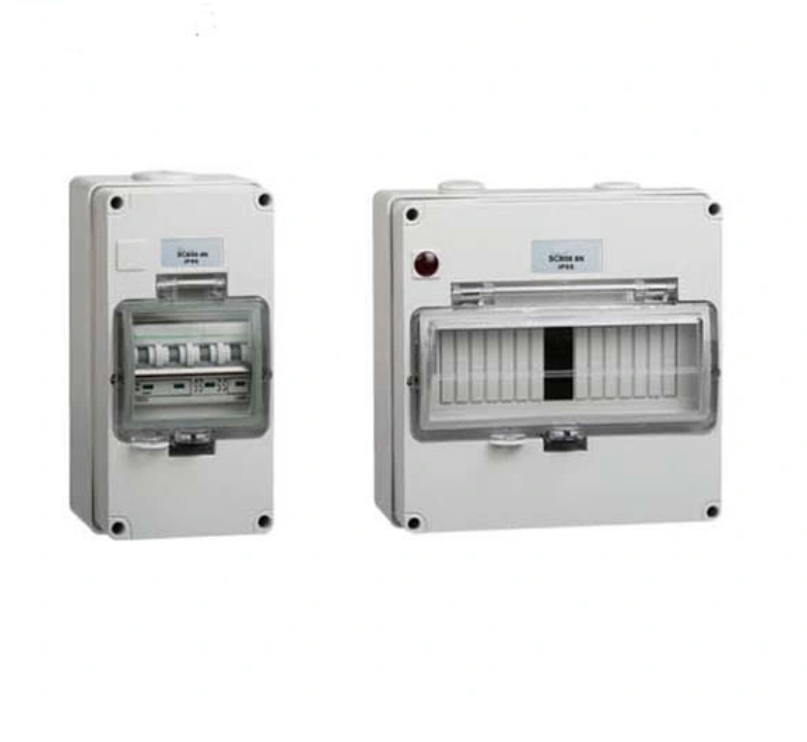

IP66 MCB Waterproof Distribution Box
IP66 MCB Waterproof Distribution Box
IP66 UV Stablilised 4 way and 8 way weatherproof enclosures are avitally important part of any solar installation, if you are using DC circuit breaker as isolation.
For this reason we have worked hard to produce a very high quality IP66 w way and 8 wan enclosures. This enclosure eets all the required standards and has thus been classed as IP66.
This IP66 4 way and 8 way enclosures are designed to house a range of DIN rail circuit breakers are complete with a storing loaded lockable lid. It also has top, bottom and rear cable entry.IP66 MCB Waterproof Distribution Box Technical Data:
1)complete with earth and neutral bars together with neutral link wire
2)Rated current:max.125A
3)Material:fire-resistant/ABS
4)Protection degree:IP66
56CB4N and 56CB8N series IP66 distribution box wtih CE approval

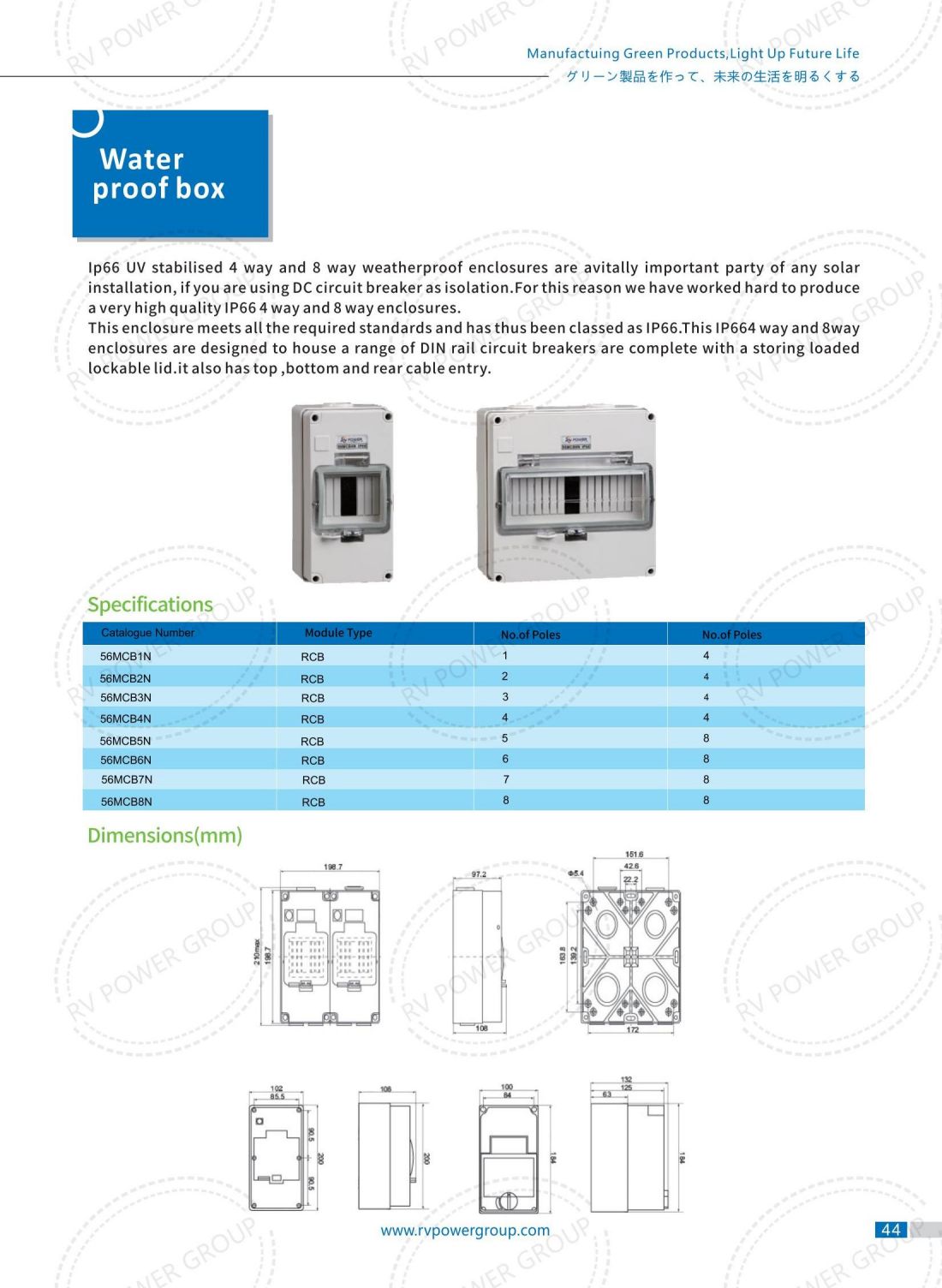

IP66 MCB Waterproof Distribution Box Dimension:
| Item NO. | Description | Module Type | IP Rating |
| 56CB-1N | available for 1 to 4 pole,with neon lamp | MCB+RCD's | IP66 |
| 56CB-2N | available for 1 to 4 pole,with neon lamp | MCB+RCD's | IP66 |
| 56CB-3N | available for 1 to 4 pole,with neon lamp | MCB+RCD's | IP66 |
| 56CB-4N | available for 1 to 4 pole,with neon lamp | MCB+RCD's | IP66 |
| 56CB-5N | available for 1 to 8 pole,with neon lamp | MCB+RCD's | IP66 |
| 56CB-6N | available for 1 to 8 pole,with neon lamp | MCB+RCD's | IP66 |
| 56CB-7N | available for 1 to 8 pole,with neon lamp | MCB+RCD's | IP66 |
| 56CB-8N | available for 1 to 8 pole,with neon lamp | MCB+RCD's | IP66 |
IP66 MCB Waterproof Distribution Box Advantage:
a.Waterproof Distribution Box cab be easy use for solar energy systems
b.The product is free from corrosion, carries superior insulation.
c. Material:The Product has passed waterproof and dust-proof carried out under rigid quality standards.(IP 66).
d. Special Requirement:OEM service available.
e. Usage: convenient for the installation of Terminal Substitution Rail, Button Box, Small Terminal, Signal
